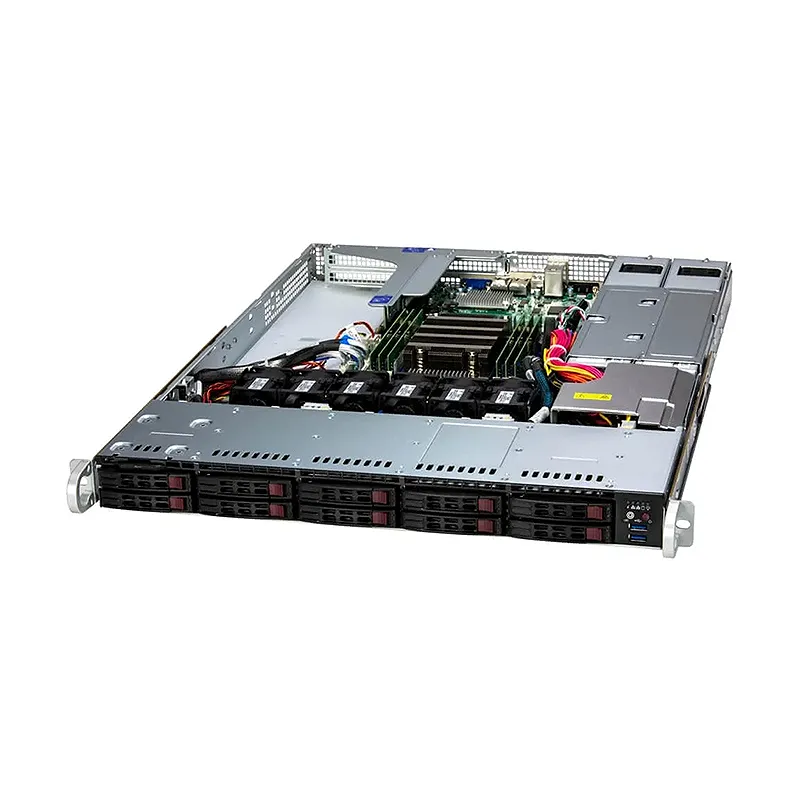

WIO A+ Server AS -1115SV-WTNRT - HYPERTEK SYSTEMS B.V

Product SKUs

A+ ServerAS -1115SV-WTNRT

Motherboard

Super H13SVW-NT

Processor

CPU
Single processor(s)
AMD EPYC 8004 Series Processor
Core Count
Up to 64C/128T

GPU

Max GPU Count
Up to 1 double-width or 2 single-width GPUs
Supported GPU
NVIDIA PCIe: L40, L4, A2

System Memory

Memory
Slot Count: 6 DIMM slots
Max Memory (1DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM

On-Board Devices

Chipset
System on Chip
Network Connectivity
2 RJ45 10GBASE-T with Broadcom BCM57416

Input / Output

LAN
1 RJ45 1 GbE Dedicated BMC LAN port
2 RJ45 10 GBASE-T LAN ports
USB
2 ports(front)
4 ports(rear)
Video
1 VGA port
Serial
1 COM port(Rear)
TPM
1 TPM Onboard/port 80

System BIOS

BIOS Type
AMI 32MB SPI Flash EEPROM
BIOS Features
ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support

Management

Power configurations
1U redundant 800/860W Titanium AC power supply

Chassis

Form Factor
1U
Model
CSE-116BTS-R000WNP

Dimensions and Weight

Height
1.7″ (43 mm)
Width
17.2″ (437 mm)
Depth
23.5″ (597 mm)
Package
7.75″ (H) x 23.5″ (W) x 31.5″ (D)
Weight
Gross Weight: 33.5 lbs (15.2 kg)
Net Weight: 21 lbs (9.53 kg)
Available Color
Black

Front Panel

LED
Fan Fail/System Over Heat LED
HDD activity LED
Network Activity LEDs
Power status LED
Buttons
Power On/Off button
Unit Identification (UID) button

Expansion Slots

PCI-Express (PCIe) Configuration
Default 2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x16 LP slot
M.2
2 M.2 PCIe 3.0 x4 NVMe slots (M-key)

Drive Bays / Storage

Drive Bays Configuration
Default: Total 10 bays 10 front hot-swap 2.5″ NVMe*/SAS*/SATA drive bays
(*NVMe/SAS support may require additional storage controller and/or cables)
M.2
2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)

System Cooling

Fans
6 Heavy duty counter-rotating 40x40x56mm Fan(s)

Power Supply

2x 860W
2x 860W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)
54.5 x 40.25 x 322 mm
Input
800W: 100-127Vac / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz
+12V
Max: 66.67A / Min: 0A (100Vac-127Vac)
Max: 71.67A / Min: 0A (200Vac-240Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)

Brand	Supermicro
Products Status	New
Applications	Data Center Optimized, Database/Storage, Edge/Cloud Computing Services, Firewall Applications, Virtualization
Max GPU	1
CPU Type	AMD EPYC 8004 Series Processor
Total PCI-E Slots	3
Drives	10
Drive Form Factors	2.5"
Form Factor	1U
Generation	H13
Interface	NVMe (Optional), SAS (Optional), SATA (Native)
LED	Fan Fail/System Over Heat LEDHDD activity LEDNetwork Activity LEDsPower status LED
Max GPU Count	Up to 1 double-width or 2 single-width GPUs
Serial	1 COM port(Rear)
Supported GPU	A2View GPU Options, L4, NVIDIA PCIe: L40
Network Connectivity	2 RJ45 10GBASE-T with Broadcom BCM57416View AOC Options
BIOS Features	ACPI 6.4Plug and Play (PnP)SMBIOS 3.5 or laterUEFI 2.8USB Keyboard support
LAN	1 RJ45 1 GbE Dedicated BMC LAN port2 RJ45 10 GBASE-T LAN ports
BIOS Type	AMI 32MB SPI Flash EEPROM
Package	7.75" (H) x 23.5" (W) x 31.5" (D)
Depth	23.5" (597 mm)
Fans	6 Heavy duty counter-rotating 40x40x56mm Fan(s)
Height	1.7" (43 mm)
Buttons	Power On/Off buttonUnit Identification (UID) button
M.2	2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)
Memory	Slot Count: 6 DIMM slotsMax Memory (1DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMMView Memory Options
Width	17.2" (437 mm)
Video	1 VGA port
Core Count	Up to 64C/128T
Note	Supports up to 225W TDP CPUs (Air Cooled)
Weight	Gross Weight: 33.5 lbs (15.2 kg)Net Weight: 21 lbs (9.53 kg)
Drive Bays Configuration	Default: Total 10 bays(*NVMe/SAS support may require additional storage controller and/or cables)
USB	2 ports(front)4 ports(rear)
Available Color	Black
PCI-Express (PCIe) Configuration	Default
TPM	1 TPM Onboard/port 80
CPU	Single processor(s)AMD EPYC 8004 Series Processor
Chipset	System on Chip
