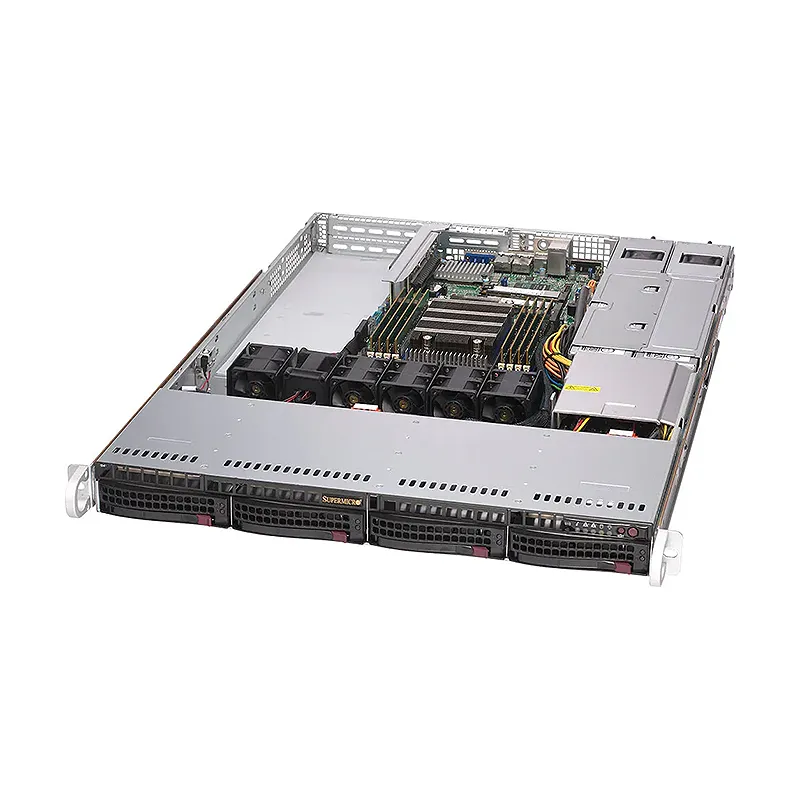

WIO A+ Server AS -1014S-WTRT - HYPERTEK SYSTEMS B.V

Product SKUs

A+ ServerAS -1014S-WTRTStandard version with PWS-504P-1R (Platinum Level)
A+ ServerAS -1014S-WTRT-EUEuropean version with PWS-601A-1R (Titanium Level)

Motherboard

Super H12SSW-NT

Processor

CPU
Single Socket SP3
AMD EPYC 7002/7003 Series Processors

GPU

Max GPU Count
Up to 2 double-width or 2 single-width GPUs
Supported GPU
NVIDIA PCIe: T4, A2

System Memory

Memory
Slot Count: 8 DIMM slots
Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

On-Board Devices

SATA
SATA (6Gbps)
Chipset
System on Chip
Network Connectivity
2 RJ45 10GbE with Broadcom BCM57416
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

LAN
1 RJ45 1 GbE Dedicated BMC LAN port
2 RJ45 1 GBASE-T LAN ports
USB
4 USB 3.0 ports(rear)
1 USB 3.0 Type-A port
Video
1 VGA port
DOM
2 Super DOM (Disk on Module) ports

System BIOS

BIOS Type
AMI 32MB SPI Flash EEPROM

Management

Power configurations
ACPI/APM Power Management

Chassis

Form Factor
1U Rackmount
Model
CSE-815TS-R504WBP4

Dimensions and Weight

Height
1.7″ (43 mm)
Width
17.2″ (437 mm)
Depth
25.6″ (650 mm)
Package
8.5″ (H) x 23.5″ (W) x 33.7″ (D)
Weight
Gross Weight: 46 lbs (20.87 kg)
Net Weight: 22 lbs (9.98 kg)
Available Color
Black

Front Panel

LED
HDD activity
Network activity
Power status
Universal Information (UID)
Buttons
Power On/Off
UID button

Expansion Slots

PCI-Express (PCIe) Configuration
Default 2 PCIe 4.0 x16 FHFL slots 1 PCIe 4.0 x16 LP slot
M.2
2 M.2 PCIe 3.0 x1 NVMe/SATA slots (M-key)

Drive Bays / Storage

Drive Bays Configuration
Default: Total 4 bays 4 front hot-swap 3.5″ SATA drive bays
Option A: Total 4 bays 4 front hot-swap 3.5″/2.5″ PCIe 3.0 NVMe* drive bays
(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
Peripheral Bays
1 slim DVD bay (optional)
M.2

System Cooling

Fans
2 AOC cooling Fan(s)
4 Counter-rotating PWM 4cm Fan(s)

Power Supply

2x 500W
2x 500W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)
54.5 x 40.25 x 320 mm
Total Output Power
Input
500W: 100-240Vac / 50-60Hz
+12V
Max: 42A / Min: 0.5A (100Vac-240Vac)
Max: 42A / Min: 0.5A
5V SB
Max: 3A / Min: 0A
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
Certification
Platinum Level
[
Test Report
]

Brand	Supermicro
Products Status	New
Applications	Data Center Applications, DB Processing & Storage, Firewall Applications
Max GPU	1
CPU Type	AMD EPYC 7002/7003 Series Processors
Total PCI-E Slots	3
Drives	4
Drive Form Factors	3.5"
Form Factor	1U
Generation	H12
Interface	NVMe (Optional), SAS (Optional), SATA (Native)
SATA	SATA (6Gbps)
LED	HDD activityNetwork activityPower statusUniversal Information (UID)
Max GPU Count	Up to 2 double-width or 2 single-width GPUs
Supported GPU	A2View GPU Options, NVIDIA PCIe: T4
Network Connectivity	2 RJ45 10GbE with Broadcom BCM57416View AOC Options
LAN	1 RJ45 1 GbE Dedicated BMC LAN port2 RJ45 1 GBASE-T LAN ports
BIOS Type	AMI 32MB SPI Flash EEPROM
Package	8.5" (H) x 23.5" (W) x 33.7" (D)
Depth	25.6" (650 mm)
Fans	2 AOC cooling Fan(s)4 Counter-rotating PWM 4cm Fan(s)
Height	1.7" (43 mm)
Buttons	Power On/OffUID button
Peripheral Bays	1 slim DVD bay (optional)
M.2	2 M.2 PCIe 3.0 x1 NVMe/SATA slots (M-key)
Memory	Slot Count: 8 DIMM slotsMax Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMMView Memory Options
Width	17.2" (437 mm)
Video	1 VGA port
ROHS	RoHS Compliant
Note	Supports up to 280W TDP CPUs (Air Cooled)
Weight	Gross Weight: 46 lbs (20.87 kg)Net Weight: 22 lbs (9.98 kg)
Drive Bays Configuration	Default: Total 4 baysOption A: Total 4 bays(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
USB	4 USB 3.0 ports(rear)1 USB 3.0 Type-A port
Available Color	Black
PCI-Express (PCIe) Configuration	Default
IPMI	Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
CPU	Single Socket SP3AMD EPYC 7002/7003 Series Processors
Chipset	System on Chip
DOM	DOM
