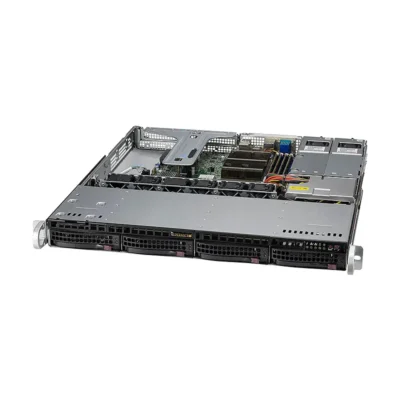

UP SuperServer SYS-510T-MR - HYPERTEK SYSTEMS B.V

Product SKUs

SuperServerSYS-510T-MRStandard version with PWS-407P-1R (Platinum Level)
SuperServerSYS-510T-MR-EUEuropean version with PWS-602A-1R (Titanium Level)

Motherboard

Super X12STH-SYS

Processor

CPU
Single Socket H5 (LGA-1200)
Intel Xeon E-2300 series Processors and 10th Gen. Pentium Processors
Core Count
Up to 8C/16T; Up to 16MB Cache

GPU

Max GPU Count
Up to 1 single-width GPU
Supported GPU
NVIDIA PCIe: T400, T1000
CPU-GPU Interconnect
PCIe 4.0 x16 CPU-to-GPU Interconnect

System Memory

Memory
Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
Memory Voltage
1.2V

On-Board Devices

SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset
Intel C256
Network Connectivity
2 RJ45 1GbE with Intel I210

Input / Output

LAN
2 RJ45 1 GbE LAN ports
1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
4 USB 2.0 ports(header)
2 USB 3.2 Gen1 Type-A ports(rear)
2 USB 2.0 Type-A ports(rear)
2 USB 3.2 Gen1 ports(Header)
1 USB 3.2 Gen1 Type-A port(Header)
Video
1 VGA port
Serial
1 COM port(Rear)
1 COM port(Header)
DOM
2 Super DOM (Disk on Module) portswith built-in power
TPM
1 TPM header

System BIOS

BIOS Type
AMI 32MB SPI Flash EEPROM

Management

Power configurations
ACPI/APM Power Management

Chassis

Form Factor
1U Rackmount
Model
CSE-813MF2TS-R407RCBP

Dimensions and Weight

Height
1.7″ (43 mm)
Width
17.2″ (437 mm)
Depth
19.98″ (507 mm)
Package
8.5″ (H) x 24″ (W) x 29.5″ (D)
Weight
Gross Weight: 30.4 lbs (13.8 kg)
Net Weight: 17.6 lbs (8 kg)
Available Color
Black

Front Panel

LED
Device Activity
LAN 1 Activity
LAN 2 Activity
Power status
System information
Buttons
Power On/Off
System Reset

Expansion Slots

PCI-Express (PCIe) Configuration
Default 1 PCIe 4.0 x8 FHHL slot 1 PCIe 4.0 x8 LP slot
Option A 1 PCIe 4.0 x16 FHHL slot

Drive Bays / Storage

Drive Bays Configuration
Default: Total 4 bays 4 front hot-swap 3.5″ SATA drive bays
M.2
1 M.2 NVMe slot (M-key 2280/22110)
Peripheral Bays
2 2.5″ bays

System Cooling

Fans
4 middle cooling PWM 40x40x28mm Fan(s)
2 AOC cooling Fan(s) (optional)

Power Supply

2x 400W
2x 400W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)
54.5 x 40.25 x 220 mm
Total Output Power
Input
400W: 100-240Vac
400W: 100-240Vac / 50-60Hz
400W: 200-240Vdc / 50-60Hz
+12V
Max: 33A / Min: 0A (100Vac-240Vac)
Max: 33A / Min: 0.5A
5V SB
Max: 3A / Min: 0A
Output Type
Backplanes (gold finger)

Brand	Supermicro
Products Status	New
Applications	Encoding Decoding, Small Business, Virtualization
Max GPU	1
CPU Type	Intel Xeon E-2300 series Processors and 10th Gen. Pentium Processors
Total PCI-E Slots	2
Drives	4
Drive Form Factors	3.5"
Form Factor	1U
Generation	X12
Interface	SAS (Optional), SATA (Native)
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
LED	Device ActivityLAN 1 ActivityLAN 2 ActivityPower statusSystem information
Max GPU Count	Up to 1 single-width GPU
Serial	1 COM port(Rear)1 COM port(Header)
CPU-GPU Interconnect	PCIe 4.0 x16 CPU-to-GPU Interconnect
Supported GPU	NVIDIA PCIe: T400, T1000View GPU Options
Network Connectivity	2 RJ45 1GbE with Intel I210View AOC Options
LAN	2 RJ45 1 GbE LAN ports1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
BIOS Type	AMI 32MB SPI Flash EEPROM
Package	8.5" (H) x 24" (W) x 29.5" (D)
Depth	19.98" (507 mm)
Fans	4 middle cooling PWM 40x40x28mm Fan(s)2 AOC cooling Fan(s) (optional)
Height	1.7" (43 mm)
Buttons	Power On/OffSystem Reset
Peripheral Bays	2 2.5" bays
M.2	1 M.2 NVMe slot (M-key 2280/22110)
Memory	Slot Count: 4 DIMM slotsMax Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMMView Memory Options
Width	17.2" (437 mm)
Video	1 VGA port
Core Count	Up to 8C/16T; Up to 16MB Cache
Note	Supports up to 95W TDP CPUs (Air Cooled)
Weight	Gross Weight: 30.4 lbs (13.8 kg)Net Weight: 17.6 lbs (8 kg)
Drive Bays Configuration	Default: Total 4 bays
USB	4 USB 2.0 ports(header)2 USB 3.2 Gen1 Type-A ports(rear)2 USB 2.0 Type-A ports(rear)2 USB 3.2 Gen1 ports(Header)1 USB 3.2 Gen1 Type-A port(Header)
Available Color	Black
PCI-Express (PCIe) Configuration	DefaultOption A
TPM	1 TPM Header
CPU	Single Socket H5 (LGA-1200)Intel Xeon E-2300 series Processors and 10th Gen. Pentium Processors
Chipset	Intel C256
Memory Voltage	1.2V
DOM	DOM
