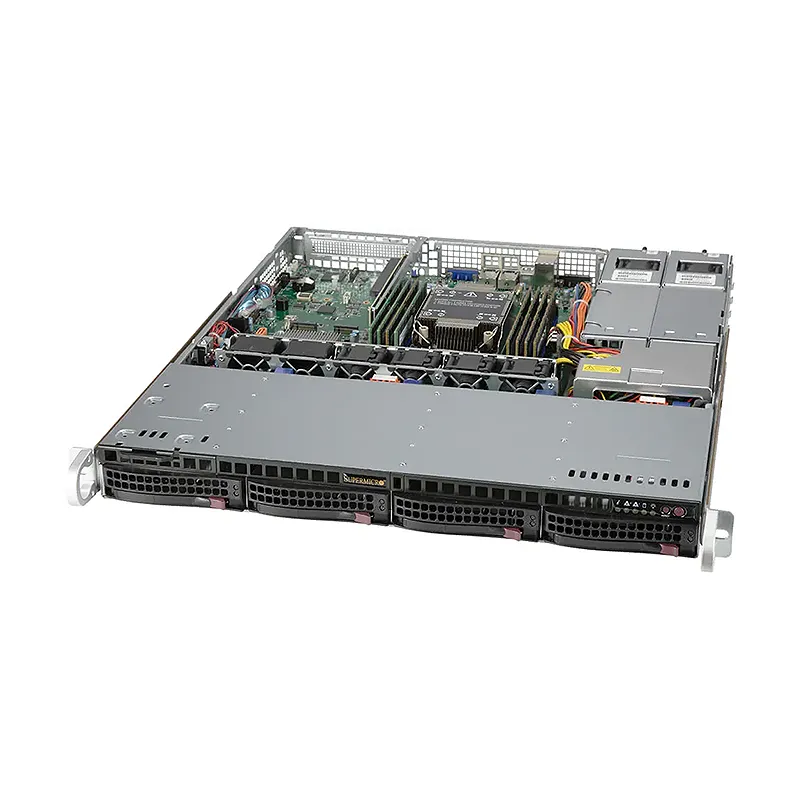

UP SuperServer SYS-510P-MR - HYPERTEK SYSTEMS B.V

Product SKUs

SuperServerSYS-510P-MRStandard version with PWS-407P-1R (Platinum Level)
SuperServerSYS-510P-MR-EUEuropean version with PWS-602A-1R (Titanium Level)

Motherboard

Super X12SPO-F

Processor

CPU
Single Socket P+ (LGA-4189)
3rd Gen Intel Xeon Scalable processors
Core Count
Up to 36C/72T; Up to 54MB Cache

GPU

Max GPU Count
Up to 1 single-width GPU
Supported GPU
NVIDIA PCIe: T400
CPU-GPU Interconnect
PCIe 4.0 x16 CPU-to-GPU Interconnect

System Memory

Memory
Slot Count: 8 DIMM slots
Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Supports Intel Optane persistent memory 200 series
Memory Voltage
1.2V

On-Board Devices

SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
NVMe; RAID 0/1/5/10 support(VROC HW key required)
Chipset
Intel C621A
Network Connectivity
2 RJ45 1GbE with Intel I350

Input / Output

LAN
2 RJ45 1 GbE LAN ports
1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
4 USB 2.0 ports(header)
2 USB 3.2 Gen1 Type-A ports(rear)
2 USB 2.0 Type-A ports(rear)
2 USB 3.2 Gen1 ports(Header)
1 USB 3.2 Gen1 Type-A port
Video
1 VGA port
Serial
1 COM port(Rear)
1 COM port(Header)
DOM
2 Super DOM (Disk on Module) portswith built-in power
TPM
1 TPM header

System BIOS

BIOS Type
AMI 32MB SPI Flash EEPROM

Management

Power configurations
ACPI/APM Power Management

Chassis

Form Factor
1U Rackmount
Model
CSE-813MF2TS-R407CBP2

Dimensions and Weight

Height
1.7″ (43 mm)
Width
17.2″ (437 mm)
Depth
19.98″ (507 mm)
Package
8.5″ (H) x 24″ (W) x 29.5″ (D)
Weight
Gross Weight: 30.4 lbs (13.8 kg)
Net Weight: 17.6 lbs (8 kg)
Available Color
Black

Front Panel

LED
Device Activity
LAN 1 Activity
LAN 2 Activity
Power status
System information
Buttons
Power On/Off
System Reset

Expansion Slots

PCI-Express (PCIe) Configuration
Default 1 PCIe 4.0 x16 FHHL slot

Drive Bays / Storage

Drive Bays Configuration
Default: Total 4 bays 4 front hot-swap 3.5″ PCIe 4.0 NVMe*/SAS*/SATA drive bays
(*NVMe/SAS support may require additional storage controller and/or cables)
M.2
2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280/22110)
Peripheral Bays
2 2.5″ bays (optional)

System Cooling

Fans
4 middle cooling PWM 40x40x28mm Fan(s)
2 AOC cooling Fan(s) (optional)

Power Supply

2x 400W
2x 400W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)
54.5 x 40.25 x 220 mm
Total Output Power
Input
400W: 100-240Vac
400W: 100-240Vac / 50-60Hz
400W: 200-240Vdc / 50-60Hz
+12V
Max: 33A / Min: 0A (100Vac-240Vac)
Max: 33A / Min: 0.5A
5V SB
Max: 3A / Min: 0A
Output Type
Backplanes (gold finger)

Brand	Supermicro
Products Status	New
Applications	Email/Firewall/Print Server, Small Business, Web/Hosting Application
Max GPU	1
CPU Type	3rd Gen Intel Xeon Scalable processors
Total PCI-E Slots	1
Drives	4
Drive Form Factors	3.5"
Form Factor	1U
Generation	X12
Interface	NVMe (Optional), SAS (Optional), SATA (Native)
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
LED	Device ActivityLAN 1 ActivityLAN 2 ActivityPower statusSystem information
Max GPU Count	Up to 1 single-width GPU
Serial	1 COM port(Rear)1 COM port(Header)
CPU-GPU Interconnect	PCIe 4.0 x16 CPU-to-GPU Interconnect
Supported GPU	NVIDIA PCIe: T400View GPU Options
Network Connectivity	2 RJ45 1GbE with Intel I350View AOC Options
LAN	2 RJ45 1 GbE LAN ports1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
BIOS Type	AMI 32MB SPI Flash EEPROM
Package	8.5" (H) x 24" (W) x 29.5" (D)
Depth	19.98" (507 mm)
Fans	4 middle cooling PWM 40x40x28mm Fan(s)2 AOC cooling Fan(s) (optional)
Height	1.7" (43 mm)
Buttons	Power On/OffSystem Reset
Peripheral Bays	2 2.5" bays (optional)
M.2	2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280/22110)
Memory	Slot Count: 8 DIMM slotsMax Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options
Width	17.2" (437 mm)
Video	1 VGA port
Core Count	Up to 36C/72T; Up to 54MB Cache
NVMe	NVMe; RAID 0/1/5/10 support(VROC HW key required)View NVMe Options
Note	Supports up to 220W TDP CPUs (Air Cooled)
Weight	Gross Weight: 30.4 lbs (13.8 kg)Net Weight: 17.6 lbs (8 kg)
Drive Bays Configuration	Default: Total 4 bays(*NVMe/SAS support may require additional storage controller and/or cables)
USB	4 USB 2.0 ports(header)2 USB 3.2 Gen1 Type-A ports(rear)2 USB 2.0 Type-A ports(rear)2 USB 3.2 Gen1 ports(Header)1 USB 3.2 Gen1 Type-A port
Available Color	Black
PCI-Express (PCIe) Configuration	Default
TPM	1 TPM Header
CPU	Single Socket P+ (LGA-4189)3rd Gen Intel Xeon Scalable processors
Chipset	Intel C621A
Memory Voltage	1.2V
DOM	DOM
