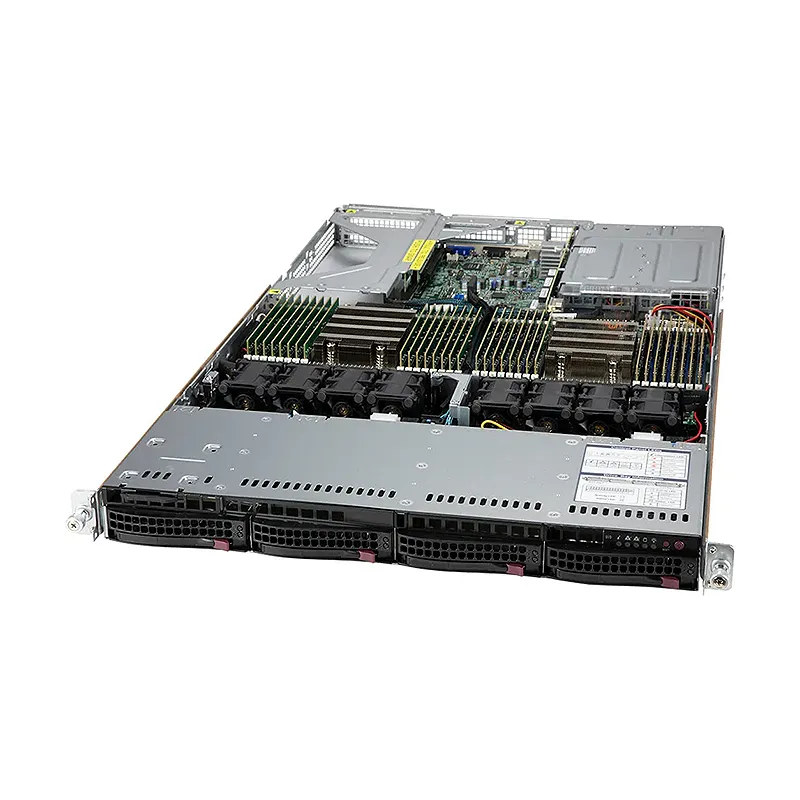

Ultra A+ Server AS -1024US-TRT (Complete System Only

Product SKUs

A+ ServerAS -1024US-TRT

Motherboard

Super H12DSU-iN

Processor

CPU
Dual Socket SP3
AMD EPYC 7002/7003 Series Processors

GPU

Max GPU Count
Up to 1 double-width or 1 single-width GPU
Supported GPU
NVIDIA PCIe: T4, RTX A2000

System Memory

Memory
Slot Count: 32 DIMM slots
Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

On-Board Devices

Chipset
System on Chip
Network Connectivity
2 RJ45 10GbE
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

LAN
1 RJ45 1 GbE Dedicated BMC LAN port
USB
3 USB 3.0 ports
Video
1 VGA port
Serial
1 COM port
DOM
2 SATA DOM (Disk on Module) ports
TPM
1 TPM header

System BIOS

BIOS Type
AMI 128MB SPI Flash EEPROM
BIOS Features
PCI 2.2
Plug and Play (PnP)
USB Keyboard support

Chassis

Form Factor
1U Rackmount
Model
CSE-819UTS-R1K02P-A

Dimensions and Weight

Height
1.7″ (43 mm)
Width
17.2″ (437 mm)
Depth
29″ (737 mm)
Package
7.99″ (H) x 23.81″ (W) x 37.4″ (D)
Weight
Gross Weight: 41 lbs (18.6 kg)
Net Weight: 26 lbs (11.8 kg)
Available Color

Expansion Slots

PCI-Express (PCIe) Configuration
Default 1 PCIe 4.0 x16 LP slot 2 PCIe 4.0 x16 FH, 9.5″L slots 1 PCIe 4.0 x16 INTERNAL slot

Drive Bays / Storage

Drive Bays Configuration
Default: Total 4 bays 4 front hot-swap 3.5″ SATA drive bays
Option A: Total 4 bays 4 front hot-swap 3.5″/2.5″ NVMe* drive bays
Option B: Total 4 bays 4 front hot-swap 3.5″ SAS* drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2

System Cooling

Fans
8 heavy duty fans with optimal fan speed control

Power Supply

2x 1000W
2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 203 mm
Input
800W: 100-127Vac / 50-60Hz
1000W: 200-240Vdc / 50-60Hz
1000W: 200-240Vac / 50-60Hz
+12V
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (200Vac-240Vac)
Max: 83A (200Vdc-240Vdc)
12V SB
Max: 2.1A / Min: 0A
Output Type
Backplanes (gold finger)

Brand	Supermicro
Products Status	New
Applications	Cloud Computing, High End Enterprise Server, Virtualization
Max GPU	2
CPU Type	AMD EPYC 7002/7003 Series Processors
Total PCI-E Slots	4
Drives	4
Drive Form Factors	3.5"
Form Factor	1U
Generation	H12
Interface	NVMe (Optional), SAS (Optional), SATA (Native)
Max GPU Count	Up to 1 double-width or 1 single-width GPU
Serial	1 COM port
Supported GPU	NVIDIA PCIe: T4, RTX A2000View GPU Options
Network Connectivity	2 RJ45 10GbEView Network Card (AOC) OptionsView AOC Options
BIOS Features	PCI 2.2Plug and Play (PnP)USB Keyboard support
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type	AMI 128Mb SPI Flash EEPROM
Package	7.99" (H) x 23.81" (W) x 37.4" (D)
Depth	29" (737 mm)
Fans	8 heavy duty fans with optimal fan speed control
Height	1.7" (43 mm)
Memory	Slot Count: 32 DIMM slotsMax Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMMView Memory Options
Width	17.2" (437 mm)
Video	1 VGA port
ROHS	RoHS Compliant
Note	Supports up to 280W TDP CPUs (Air Cooled)
Weight	Gross Weight: 41 lbs (18.6 kg)Net Weight: 26 lbs (11.8 kg)
Drive Bays Configuration	Default: Total 4 baysOption A: Total 4 baysOption B: Total 4 bays(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
USB	3 USB 3.0 ports
PCI-Express (PCIe) Configuration	Default
IPMI	Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
TPM	1 TPM Header
CPU	Dual Socket SP3AMD EPYC 7002/7003 Series Processors
Chipset	System on Chip
DOM	DOM
