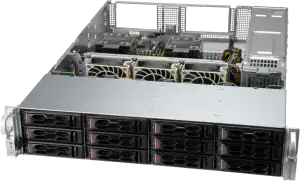

SYS-620C-TN12R SuperMicro Rackmount server X12 CloudDC PCIe 4.0 2U Dual Processor

2U CloudDC with 12 3.5″ NVMe/SAS/SATA bays and up to 4 PCIe 4.0 x16 slots

Quote1 Piece(MOQ)

Product Name	SYS-620C-TN12R SuperMicro Rackmount server X12 CloudDC PCIe 4.0 1U Dual Processor
Product Group	X12 CloudDC PCIe 4.0 1U Dual Processor
Type	3rd Gen Intel Xeon Scalable Processors
Networking	AIOM
Drive Form Factors	3.5"

Description
Additional information

Product SKUs

SuperServerSYS-620C-TN12R

Motherboard

Super X12DDW-A6

Processor

CPU
Dual Socket P4 (LGA-4189)
3rd Gen Intel Xeon Scalable processors
Core Count
Up to 40C/80T; Up to 60MB Cache per CPU

GPU

Max GPU Count
Up to 2 double-width or 6 single-width GPUs
Supported GPU
NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4500, A30, A16, A2, A100
Intel PCIe: Intel Data Center GPU Flex 170

System Memory

Memory
Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Supports Intel Optane persistent memory 200 series
Memory Voltage
1.2V

On-Board Devices

SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
NVMe; RAID 0/1/5/10 support(VROC HW key required)
Chipset
Intel C621A
Network Connectivity
Via AIOM

Input / Output

LAN
1 RJ45 1 GbE Dedicated BMC LAN port
USB
2 USB 3.2 Gen1 Type-A ports(rear)
Video
1 VGA port
Serial
1 COM port(Rear)
DOM
1 Super DOM (Disk on Module) port
TPM
1 TPM header

System BIOS

BIOS Type
AMI 32MB SPI FLASH ROM

Management

Power configurations
ACPI/APM Power Management

Chassis

Form Factor
2U Rackmount
Model
CSE-LA26TS-R1K23AWP1

Dimensions and Weight

Height
3.5″ (89 mm)
Width
17.2″ (437 mm)
Depth
25.5″ (648 mm)
Package
11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
Gross Weight: 59 lbs (26.76 kg)
Net Weight: 33 lbs (15 kg)
Available Color
Black front & sliver body

Front Panel

LED
Drive activity
Network activity
Power status
Universal Information (UID)
Buttons
Power On/Off
Universal Information (UID)

Expansion Slots

PCI-Express (PCIe) Configuration
Default 4 PCIe 4.0 x8 (in x16) FHFL double-width slots 2 PCIe 4.0 x16 FHHL slots 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
Option A 2 PCIe 4.0 x16 FHFL double-width slots 2 PCIe 4.0 x16 FHHL slots 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
Option B 4 PCIe 4.0 x16 FHFL double-width slots 2 PCIe 4.0 x16 FHHL slots 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)

Drive Bays / Storage

Drive Bays Configuration
Default: Total 12 bays 12 front hot-swap 3.5″ NVMe*/SAS*/SATA drive bays
Option A: Total 12 bays 12 front hot-swap 2.5″ NVMe*/SAS*/SATA drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default); VROC required for RAID)

System Cooling

Fans
3x 8cm heavy duty fans with optimal fan speed control
Air Shroud
1 Air Shroud

Power Supply

2x 1200W
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
76 x 40 x 336 mm
Input
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)

Product Name	SYS-620C-TN12R SuperMicro Rackmount server X12 CloudDC PCIe 4.0 1U Dual Processor
Product Group	X12 CloudDC PCIe 4.0 1U Dual Processor
Type	3rd Gen Intel Xeon Scalable Processors
Networking	AIOM
Drive Form Factors	3.5"
DIMM Slots	16
Interface	Native SATA Optional SAS Optional NVMe
Form Factors	2U
Generation	X12
Intel CPU	Xeon
