SYS-610C-TR SuperMicro Rackmount server X12 CloudDC PCIe 4.0 1U Dual Processor wholesale

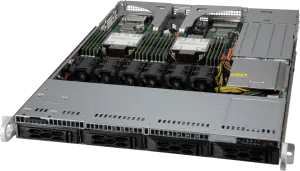

* NOTE: Image may not exactly match the product

SYS-610C-TR SuperMicro Rackmount server X12 CloudDC PCIe 4.0 1U Dual Processor

1U CloudDC with 4 3.5″ SAS/SATA bays

Quote1 Piece(MOQ)

Product NameSYS-610C-TR SuperMicro Rackmount server X12 CloudDC PCIe 4.0 1U Dual Processor
Product GroupX12 CloudDC PCIe 4.0 1U Dual Processor
Type3rd Gen Intel Xeon Scalable Processors
NetworkingAIOM
Drive Form Factors3.5"

Product SKUs

  • SuperServerSYS-610C-TRStandard version with PWS-860P-1R2 (Platinum Level)
  • SuperServerSYS-610C-TR-EUEuropean version with PWS-861A-1R (Titanium Level)

Motherboard

  • Super X12DDW-A6

Processor

  • CPU
    Dual Socket P4 (LGA-4189)
    3rd Gen Intel Xeon Scalable processors
  • Core Count
    Up to 40C/80T; Up to 60MB Cache per CPU

GPU

  • Max GPU Count
    Up to 2 single-width GPUs
  • Supported GPU
    NVIDIA PCIe: L4, A2
    Intel PCIe: Intel Data Center GPU Flex 140

System Memory

  • Memory
    Slot Count: 16 DIMM slots
    Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Supports Intel Optane persistent memory 200 series
  • Memory Voltage
    1.2V

On-Board Devices

  • SATA
    SATA (6Gbps) ; RAID 0/1/5/10 support
  • Chipset
    Intel C621A
  • Network Connectivity
    Via AIOM

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 3.2 Gen1 Type-A ports(rear)
  • Video
    1 VGA port
  • Serial
    1 COM port(Rear)
  • DOM
    1 Super DOM (Disk on Module) port
  • TPM
    1 TPM header

System BIOS

  • BIOS Type
    AMI 32MB SPI FLASH ROM

Management

  • Power configurations
    ACPI/APM Power Management

Chassis

  • Form Factor
    1U Rackmount
  • Model
    CSE-LA15TS-R860AWP

Dimensions and Weight

  • Height
    1.7″ (43 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    25.6″ (650 mm)
  • Package
    7.8″ (H) x 23.8″ (W) x 34.6″ (D)
  • Weight
    Gross Weight: 46 lbs (20.9 kg)
    Net Weight: 25 lbs (11.3 kg)
  • Available Color
    Black front & sliver body

Front Panel

  • LED
    Drive activity
    Network activity
    Power status
    Universal Information
  • Buttons
    Power On/Off
    Reset button
    Unit Identifier (UID)

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 2 PCIe 4.0 x16 FHHL slots 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 4 bays 4 front hot-swap 3.5″ SAS/SATA drive bays
    Option A: Total 4 bays 4 front hot-swap 2.5″ SAS/SATA drive bays
  • M.2
    2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default); VROC required for RAID)
  • Peripheral Bays
    2 2.5″ peripheral bays (optional)

System Cooling

  • Fans
    6x 4cm heavy duty fans with optimal fan speed control
  • Air Shroud
    2 Air Shrouds

Power Supply

  • 2x 860W
    2x 860W Redundant (1 + 1) Platinum Level (94%) Hot-plug power supplies
    Dimension (WxHxL)
    54.5 x 40.25 x 322 mm
    Input
    800W: 100-127Vac
    800W: 100-127Vac / 50-60Hz
    860W: 200-240Vac
    860W: 200-240Vdc / 50-60Hz
    860W: 200-240Vac / 50-60Hz
    +12V
    Max: 66.6A / Min: 0A (100Vac-127Vac)
    Max: 71.6A / Min: 0A (200Vdc-240Vdc)
    Max: 71.6A / Min: 0A (200Vac-240Vac)
    5V SB
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Product Name

SYS-610C-TR SuperMicro Rackmount server X12 CloudDC PCIe 4.0 1U Dual Processor

Product Group

X12 CloudDC PCIe 4.0 1U Dual Processor

Type

3rd Gen Intel Xeon Scalable Processors

Networking

AIOM

Drive Form Factors

3.5"

DIMM Slots

16

Interface

Native SATA Optional SAS

Form Factors

1U

Generation

X12

Intel CPU

Xeon
