Product SKUs

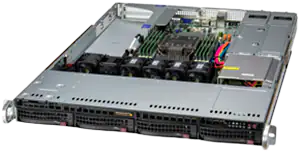

- SuperServerSYS-511E-WR
- SuperServerSYS-511E-WR-G1Gold Series version with pre-configured components
Motherboard
- Super X13SEW-F
Processor
- CPUSingle Socket E (LGA-4677)
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors - Core CountUp to 52C/104T; Up to 300MB Cache
GPU
- Max GPU CountUp to 1 double-width or 2 single-width GPUs
- Supported GPUNVIDIA PCIe: L4, A2, A10
- CPU-GPU InterconnectPCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
- MemorySlot Count: 8 DIMM slots/8 Channels
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM - Memory Voltage1.1V
On-Board Devices
- SATASATA (6Gbps) ; RAID 0/1/5/10 support
- ChipsetIntel C741
- Network Connectivity2 RJ45 1GbE with Intel I210
Input / Output
- LAN2 RJ45 1 GbE LAN ports
1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) - USB2 USB 3.2 Gen1 Type-A ports(rear)
2 USB 2.0 Type-A ports(rear)
1 USB 2.0 Type-A port(Header)
2 USB 3.2 Gen1 ports(Header) - Video1 VGA port
- Serial1 COM port(Rear)
1 COM port(Header) - TPM1 TPM header
System BIOS
- BIOS TypeAMI 32MB SPI Flash EEPROM
Management
- Power configurationsACPI/APM Power Management
Chassis
- Form Factor1U
- ModelCSE-815BTS-R000WNP
Dimensions and Weight
- Height1.7″ (43 mm)
- Width17.2″ (437 mm)
- Depth25.6″ (650 mm)
- Package8.5″ (H) x 23.5″ (W) x 33.7″ (D)
- WeightGross Weight: 34.5 lbs (15.46 kg)
Net Weight: 21.5 lbs (9.75 kg) - Available ColorBlack
Front Panel
- LEDFan Fail/System Over Heat LED
HDD activity LED
Network Activity LEDs
Power status LED
Unit Identification (UID) LED - ButtonsPower On/Off button
System Reset button
Unit Identification (UID) button
Expansion Slots
- PCI-Express (PCIe) ConfigurationDefault 2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x8 (in x16) LP slot
Drive Bays / Storage
- Drive Bays ConfigurationDefault: Total 4 bays 4 front hot-swap 3.5″ SAS*/SATA drive bays
(*SAS support may require additional storage controller and/or cables) - M.21 M.2 PCIe 3.0 x2 NVMe slot (M-key 2280/22110)
- Peripheral Bays2 2.5″ peripheral bays (optional)
System Cooling
- Fans5 middle cooling PWM 40x40x56mm Fan(s)
1 AOC cooling Fan(s) (optional)
Power Supply
- 2x 860W
2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
54.5 x 40.25 x 322 mm
Input
800W: 100-127Vac / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz
+12V
Max: 66.67A / Min: 0A (100Vac-127Vac)
Max: 71.67A / Min: 0A (200Vac-240Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
