Product SKUs

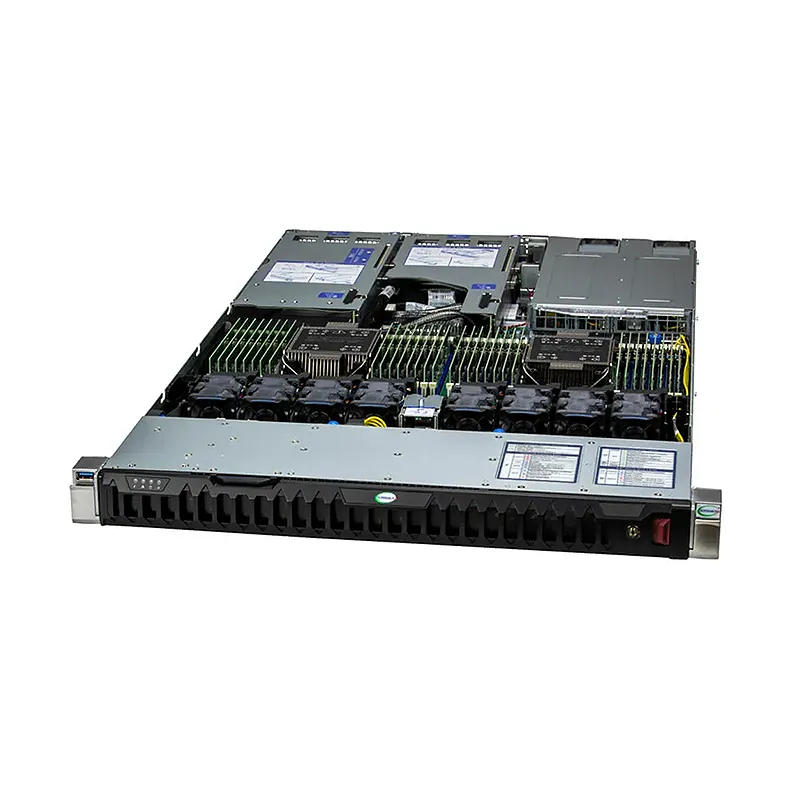

- SuperServerSYS-121H-TNR
Motherboard
- Super X13DEM
Processor
- CPUDual Socket E (LGA-4677)
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM) - Core CountUp to 64C/128T; Up to 320MB Cache per CPU
GPU
- Max GPU CountUp to 1 double-width or 3 single-width GPUs
- Supported GPUNVIDIA PCIe: H100 NVL, H100, RTX A5000, RTX A4000, L40S, L4
System Memory
- MemorySlot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM - Memory Voltage1.1V
On-Board Devices
- SATASATA (6Gbps) ; RAID 0/1/5/10 support
- NVMeNVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
- ChipsetIntel C741
- Network ConnectivityVia AIOM
Input / Output
- LAN1 RJ45 1 GbE Dedicated BMC LAN port
- USB2 USB 2.0 ports(rear)
1 USB 3.0 port(front) - Video1 VGA port
System BIOS
- BIOS TypeAMI 64MB SPI Flash
Management
- Power configurationsPower-on mode for AC power recovery
ACPI Power Management
Chassis
- Form Factor1U Rackmount
- ModelCSE-HS119-R1K24P2
Dimensions and Weight
- Height1.7″ (43 mm)
- Width17.2″ (437 mm)
- Depth29.4″ (747 mm)
- Package8.1″ (H) x 23.8″ (W) x 40.6″ (D)
- WeightGross Weight: 49 lbs (22.2 kg)
Net Weight: 34 lbs (15.4 kg) - Available Color
Front Panel
- LEDHDD activity
LAN1 activity
Power
System information - ButtonsPower On/Off
UID button
Expansion Slots
- PCI-Express (PCIe) ConfigurationDefault 1 PCIe 5.0 x16 FHHL slot 2 PCIe 5.0 x16 FH/10.5″L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- M.22 M.2 NVMe/SATA slots (B+M-key 2280/22110)
Drive Bays / Storage
- Drive Bays ConfigurationDefault: Total 8 bays 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
Option A: Total 12 bays 12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) - M.22 M.2 NVMe/SATA slots (M-key 2280/22110)
System Cooling
- Fans8 counter-rotating 40x40x56mm Fan(s)
- Liquid CoolingDirect to Chip (D2C) Cold Plate (optional)
Power Supply
- 2x 1200W
2x 1200W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 265 mm
Input
800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB
Max: 2.1A / Min: 0A
Output Type
Backplanes (gold finger)
