Product SKUs

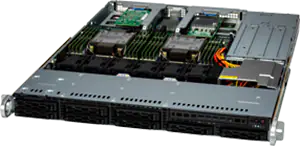

- SuperServerSYS-121C-TN2R
Motherboard
- Super X13DDW-A
Processor
- CPUDual Socket E (LGA-4677)
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors - Core CountUp to 36C/72T; Up to 82.5MB Cache per CPU
GPU
- Max GPU CountUp to 2 single-width GPUs
- Supported GPUNVIDIA PCIe: L4, A2
Intel PCIe: Intel Data Center GPU Flex 140
System Memory
- MemorySlot Count: 16 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM - Memory Voltage1.1V
On-Board Devices
- SATASATA (6Gbps) ; RAID 0/1/5/10 support
- NVMeNVMe; RAID 0/1/5/10 support(VROC HW key required)
- ChipsetIntel C741
- Network ConnectivityVia AIOM
Input / Output
- LAN1 RJ45 1 GbE Dedicated BMC LAN port
- USB2 USB 3.2 Gen1 Type-A ports(rear)
- Video1 VGA port
- Serial1 COM port(Rear)
- TPM1 TPM header
System BIOS
- BIOS TypeAMI 32MB SPI FLASH ROM
Management
- Power configurationsACPI/APM Power Management
Chassis
- Form Factor1U Rackmount
- ModelCSE-LB13TS-R0AWNP2
Dimensions and Weight
- Height1.7″ (43 mm)
- Width17.2″ (437 mm)
- Depth23.5″ (597 mm)
- Package7.8″ (H) x 23.8″ (W) x 32.4″ (D)
- WeightGross Weight: 40 lbs (18.1 kg)
Net Weight: 25 lbs (11.3 kg) - Available ColorBlack front & silver body
Front Panel
- LEDDrive activity
Network activity
Power status
Universal Information - ButtonsPower On/Off
Reset button
Unit Identifier (UID)
Expansion Slots
- PCI-Express (PCIe) ConfigurationDefault 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Drive Bays / Storage
- Drive Bays ConfigurationDefault: Total 8 bays 2 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays 6 front hot-swap 2.5″ SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables) - M.22 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280(default); VROC required for RAID)
- Peripheral Bays1 slim DVD bay (optional)
System Cooling
- Fans6x 4cm heavy duty fans with optimal fan speed control
- Air Shroud2 Air Shrouds
Power Supply
- 2x 860W
2x 860W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
Dimension (WxHxL)
54.5 x 40.25 x 322 mm
Input
800W: 100-127Vac / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz
+12V
Max: 66.67A / Min: 0A (100Vac-127Vac)
Max: 71.67A / Min: 0A (200Vac-240Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
