Product SKUs

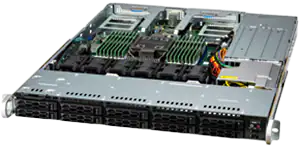

- SuperServerSYS-111C-NR
- SuperServerSYS-111C-NR-G1Gold Series version with pre-configured components
Motherboard
- Super X13SEDW-F
Processor
- CPUSingle Socket E (LGA-4677)
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors - Core CountUp to 64C/128T; Up to 320MB Cache
GPU
- Max GPU CountUp to 2 single-width GPUs
- Supported GPUNVIDIA PCIe: T1000, L4, A2
- CPU-GPU InterconnectPCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
- MemorySlot Count: 16 DIMM slots/8 Channels
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM - Memory Voltage1.1V
On-Board Devices
- SATASATA (6Gbps) ; RAID 0/1/5/10 support
- NVMeNVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
- ChipsetIntel C741
- Network ConnectivityVia AIOM
Input / Output
- LAN1 RJ45 1 GbE Dedicated BMC LAN port
- USB2 USB 3.2 Gen1 Type-A ports(rear)
2 USB 2.0 Type-A ports(front) - Video1 VGA port
- Serial1 COM port(Rear)
- TPM1 TPM header
System BIOS
- BIOS TypeAMI 32MB SPI Flash EEPROM
Management
- Power configurationsACPI/APM Power Management
Chassis
- Form Factor1U Rackmount
- ModelCSE-LB16TS-R0AWNP3
Dimensions and Weight
- Height1.7″ (43 mm)
- Width17.2″ (437 mm)
- Depth23.5″ (597 mm)
- Package7.8″ (H) x 23.8″ (W) x 32.4″ (D)
- WeightGross Weight: 40 lbs (18.1 kg)
Net Weight: 25 lbs (11.3 kg) - Available ColorBlack front & silver body
Front Panel
- LEDDrive activity
Network activity
Power status
Universal Information - ButtonsPower On/Off
Unit Identifier (UID)
Expansion Slots
- PCI-Express (PCIe) ConfigurationDefault 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Option A 2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Option B 2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
Drive Bays / Storage
- Drive Bays ConfigurationDefault: Total 10 bays 10 front hot-swap 2.5″ SAS*/SATA drive bays
Option A: Total 10 bays 6 front hot-swap 2.5″ SAS*/SATA drive bays 4 front hot-swap 2.5″ PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays
Option B: Total 10 bays 10 front hot-swap 2.5″ PCIe 5.0 x4 NVMe*/SAS*/SATA drive bays
(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details) - M.22 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110)
System Cooling
- Fans6 middle cooling PWM 40x40x56mm Fan(s)
Power Supply
- 2x 860W
2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
54.5 x 40.25 x 322 mm
Input
800W: 100-127Vac / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz
+12V
Max: 66.67A / Min: 0A (100Vac-127Vac)
Max: 71.67A / Min: 0A (200Vac-240Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
