Supermicro SYS-7049P-TRT

Product SKUs

• SYS-7049P-TRT
  SuperServer 7049P-TRT ( Black )

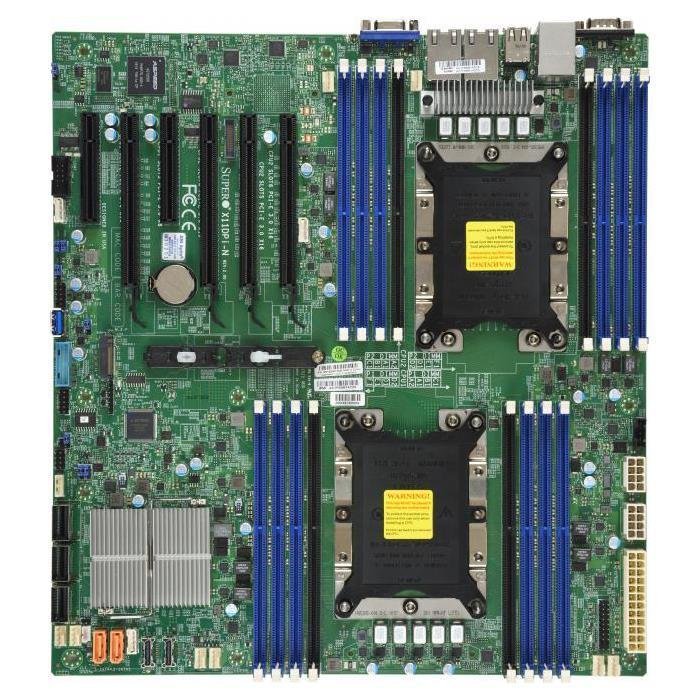

Motherboard

• Super X11DPi-NT

On-Board Devices

• Chipset
  Intel C622 chipset
• SATA
  SATA3 (6Gbps); RAID 0, 1, 5, 10
• Network Controllers
  Intel X722 10GBase-T Ethernet Controller
  Virtual Machine Device Queues reduce I/O overhead
  Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• IPMI
  Support for Intelligent Platform Management Interface v.2.0
  IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Video
  ASPEED AST2500 BMC

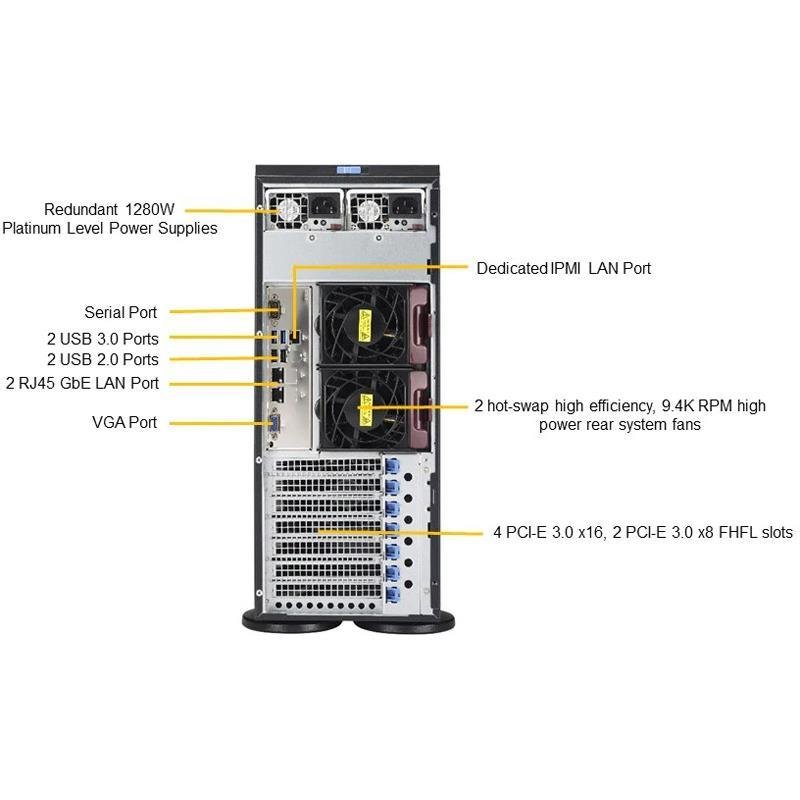

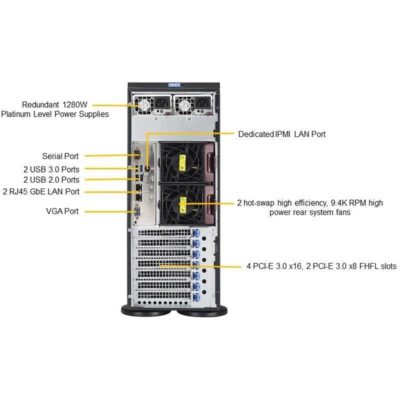

Input / Output

• SATA
  8 SATA3 (6Gbps) ports
• LAN
  2 RJ45 10GBase-T LAN ports
  1 RJ45 Dedicated IPMI LAN port
• USB
  Rear USB: 2 USB 3.0 + 2 USB 2.0
  Front USB: 2 USB 3.0
  USB Header: 1 Type A
• Video
  1 VGA port
• Serial Port / Header
  2 Fast UART 16550 serial
  2 COM Ports (1 rear, 1 header)
• DOM
  2 Super DOM (Disk on Module) ports

System BIOS

• BIOS Type
  AMI UEFI

Management

• Power Configurations
  ACPI Power Management

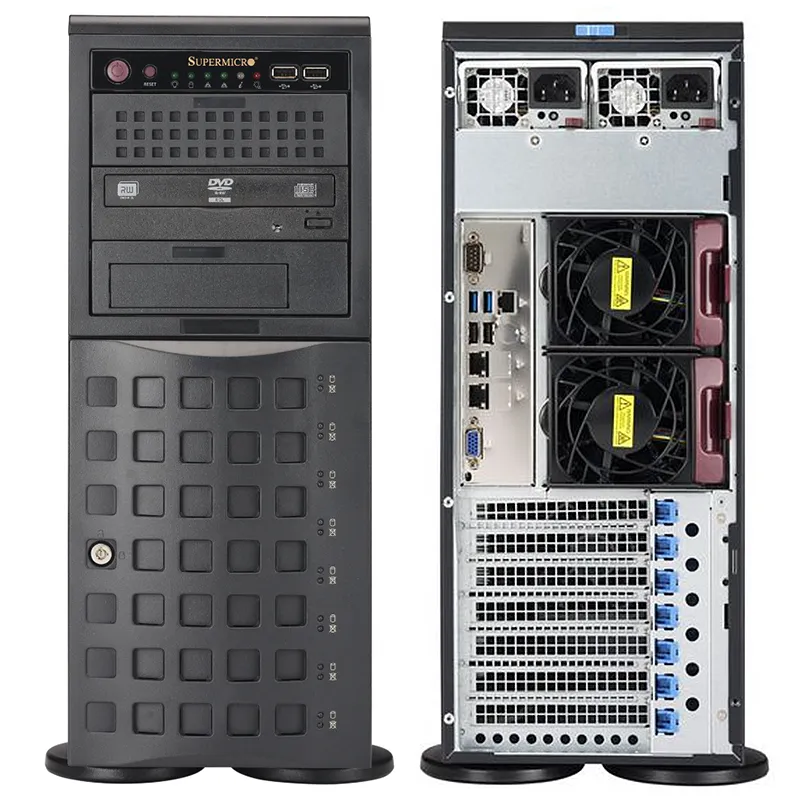

Chassis

• Form Factor
  4U Rackmountable / Tower
  Optional Rackmount Kit
• Model
  CSE-745BTS-R1K23B

Dimensions and Weight

• Height
  17.8″ (452mm)
• Width
  7.0″ (178mm)
• Depth
  25.5″ (648mm)
• Package
  24″ (H) x 14″ (W) x 26.5″ (D)
• Weight
  Net Weight: 56 lbs (25.6 kg)
  Gross Weight: 73.5 lbs (33.6 kg)
• Available Colors
  Black

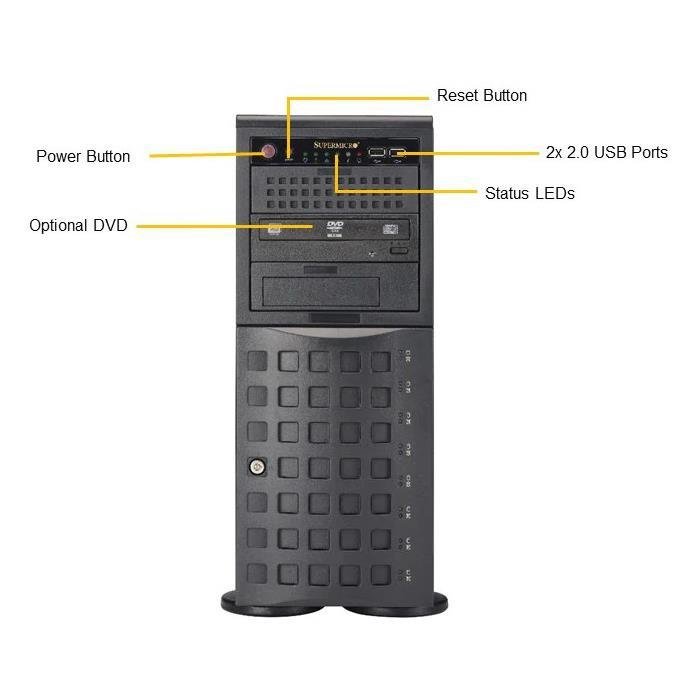

Front Panel

• Buttons
  Power On/Off button
  System Reset button
• LEDs
  Power LED
  Hard drive activity LED
  Network activity LEDs
  System Information LED
  Power Fail LED
• Ports
  2 USB Ports

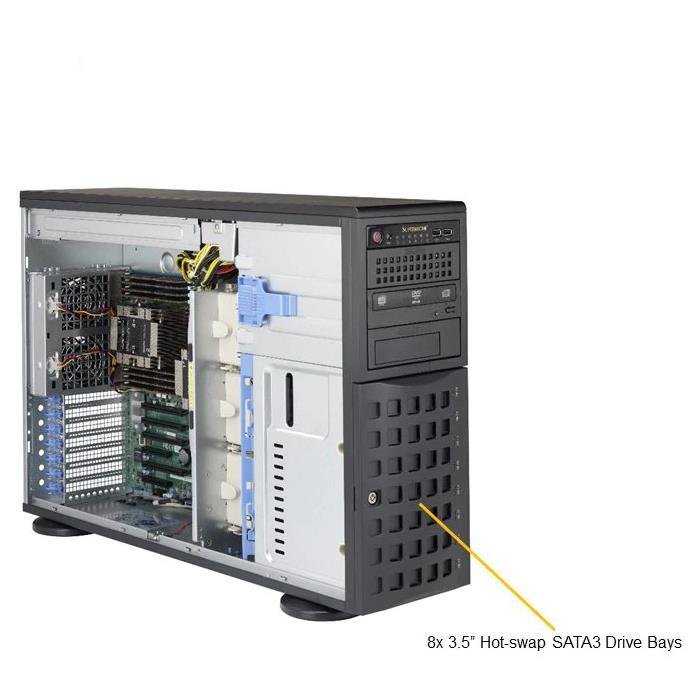

Drive Bays

• Hot-swap
  8 Hot-swap 2.5″/3.5″ SATA3 (6Gbps) drive bays
• Peripheral Bays
  3 Peripheral 5.25″ drive bays

SAS / SATA Backplane

• SAS / SATA Hard Drive Backplane w/AMI MG9072

System Cooling

• Fans
  3x 80mm high-performance fans
  2x 80mm PWM Rear Chassis fans

Power Supply

• 1200W Redundant High-efficiency Power Supplies
• Total Output Power
  1000W with Input 100 – 127Vac
  1200W with Input 200 – 240Vac
  1200W with Input 200 – 240Vdc (for CCC only)
• Dimension
  (W x H x L)
  76 x 40 x 336 mm
• Input
  50-60Hz
• +12V
  Max: 83A & Min: 0A (100Vac-127Vac)
  Max: 100A & Min: 0A (200Vac-240Vac)
