Supermicro SYS-6029P-WTR

Product SKUs

• SYS-6029P-WTR
  SuperServer 6029P-WTR ( Black )

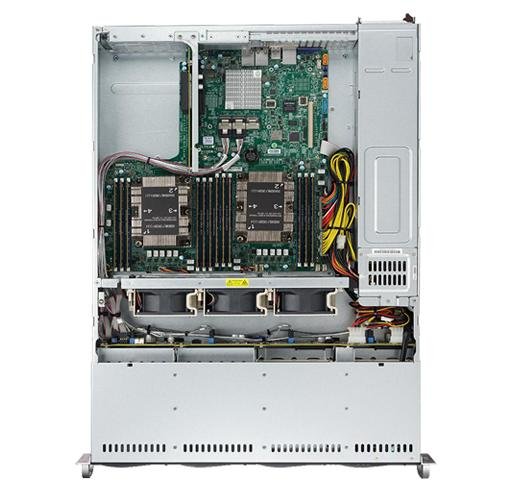

Motherboard

• Super X11DDW-L

On-Board Devices

• Chipset
  Intel C621 chipset
• SATA
  SATA3 (6Gbps); RAID 0, 1, 5, 10
• Network Controllers
  Dual 1GbE LAN ports from Intel C621
• IPMI
  Support for Intelligent Platform Management Interface v.2.0
  IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Video
  ASPEED AST2500 BMC

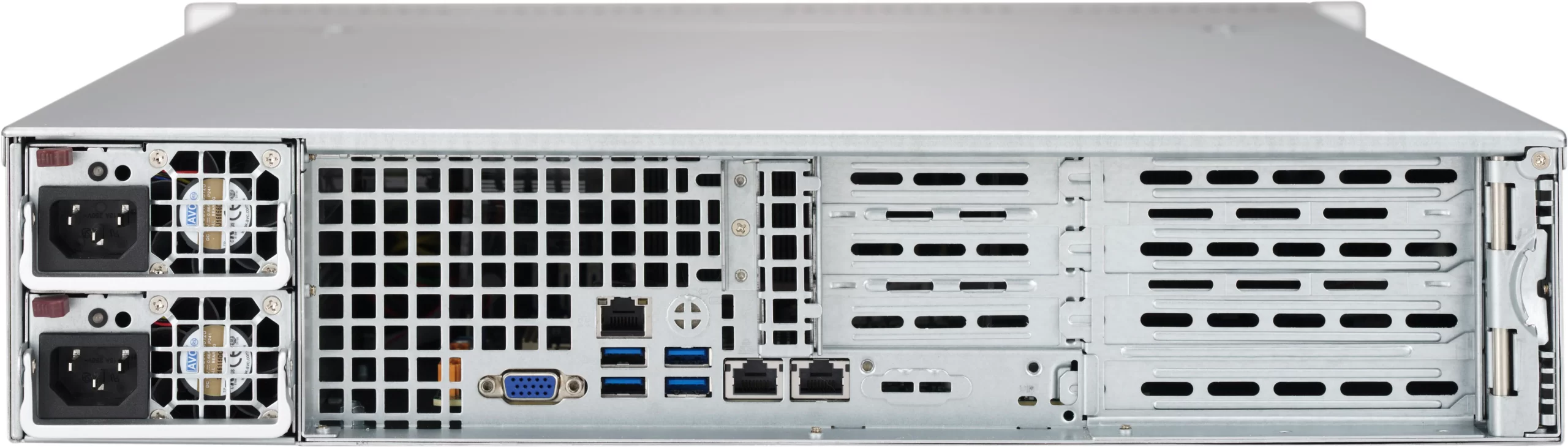

Input / Output

• SATA
  12 SATA3 (6 Gbps) ports
• LAN
  2 RJ45 Gigabit Ethernet ports
  1 RJ45 Dedicated IPMI LAN port
• USB
  4 USB 3.0 ports (rear)
• Video
  1 VGA port
• DOM
  2 Super DOM (Disk on Module) ports

System BIOS

• BIOS Type
  AMI 32Mb SPI Flash ROM

Management

• Power Configurations
  ACPI / APM Power Management

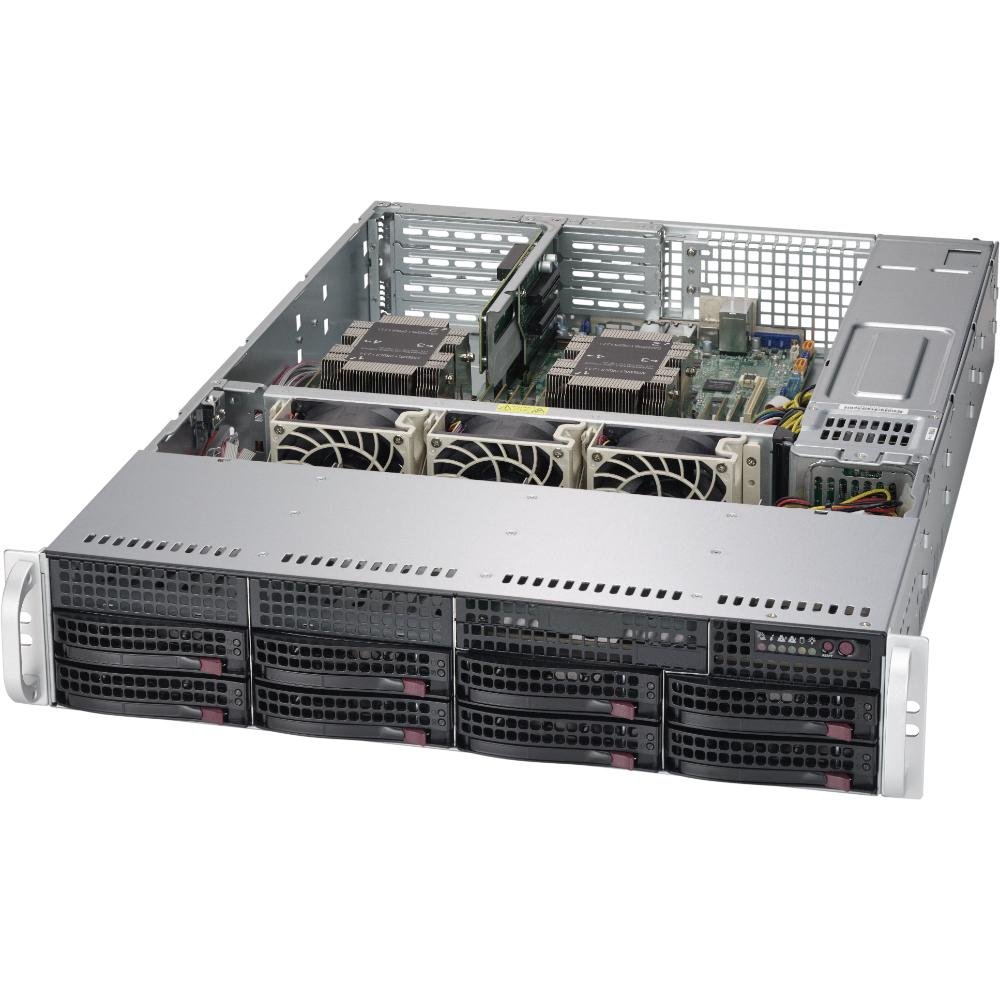

Chassis

• Form Factor
  2U Rackmount
• Model
  CSE-825TQC-R1K03WB

Dimensions and Weight

• Width
  17.2″ (437mm)
• Height
  3.5″ (89mm)
• Depth
  25.5″ (648mm)
• Gross Weight
  62 lbs (28.1 kg)
• Available Colors
  Black

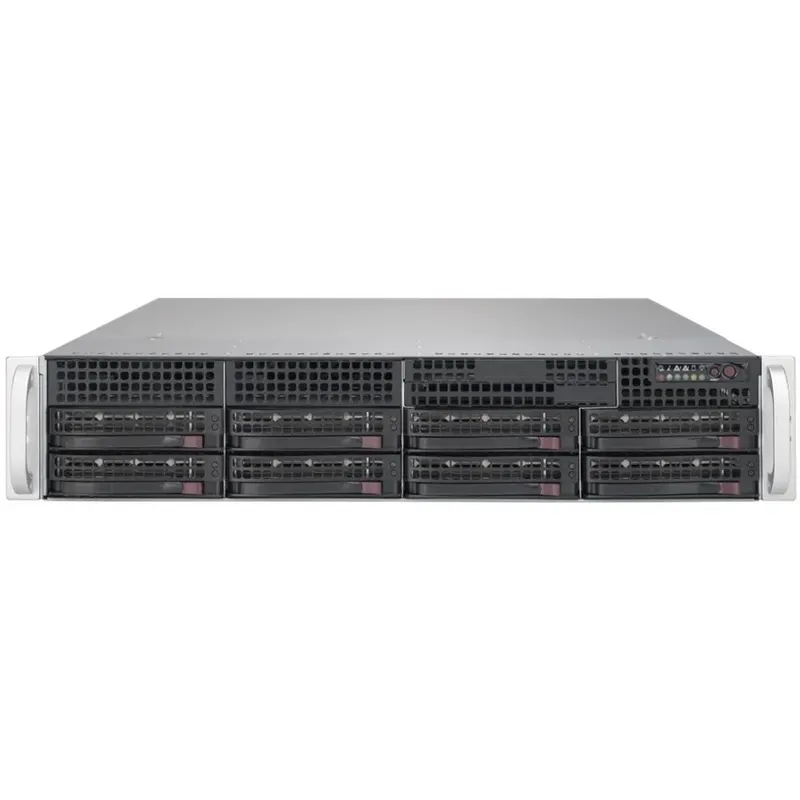

Front Panel

• Buttons
  Power On/Off button
  UID button
• LEDs
  Power status LED
  HDD activity LED
  Network activity LEDs
  Universal Information (UID) LED

Drive Bays

• Hot-swap
  8 Hot-swap 3.5″ SAS/SATA drive bays with SGPIO
• Internal
  2 Fixed 3.5″ drive bays

Peripheral Drives

• DVD-ROM
  1 Slim DVD-ROM drive (optional)

Backplane

• SAS/SATA HDD Backplane

System Cooling

• Fans
  3 Heavy duty 8cm fans with PWM fan speed control

Power Supply (76mm Width)

• 1000W Redundant Power Supplies with PMBus
• Total Output Power
  800W/1000W
• Dimension
  (W x H x L)
  76 x 40 x 336 mm
• Input
  100-127Vac / 12-9A / 50-60Hz
  200-240Vac / 7.2-6A / 50-60Hz
  200-240Vdc / 7.2-6A (for CCC only)
• +12V
  Max: 66.7A / Min. 0A (100-127Vac)
  Max: 83A / Min. 0A (200-240Vac)
  Max: 83A / Min. 0A (200-240Vdc)
• 5Vsb
  Max: 4A / Min: 0A
• Output Type
  19 Pairs Gold Finger Connector
