| | | CPU | - Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
- 8th/9th Generation Intel® Corei3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor.
| | Cores/Cache | | | Note | - BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core i3/Pentium®/Celeron® Processors
|
| | |
| | | Memory Capacity | - 4 DIMM slots
- Up to 128GB ECC UDIMM
- Up to DDR4-2666MHz
| | Memory Type | - 2666/2400/2133MHz ECC DDR4 SDRAM
| | DIMM Sizes | |
| | |
| | | Chipset | | | SATA | - SATA3 (6Gbps) via Intel C242 controller
- RAID 0, 1, 5, 10 support
| | Network Controllers | - Dual GbE LAN with Intel® I210-AT
| | IPMI | |
| | |

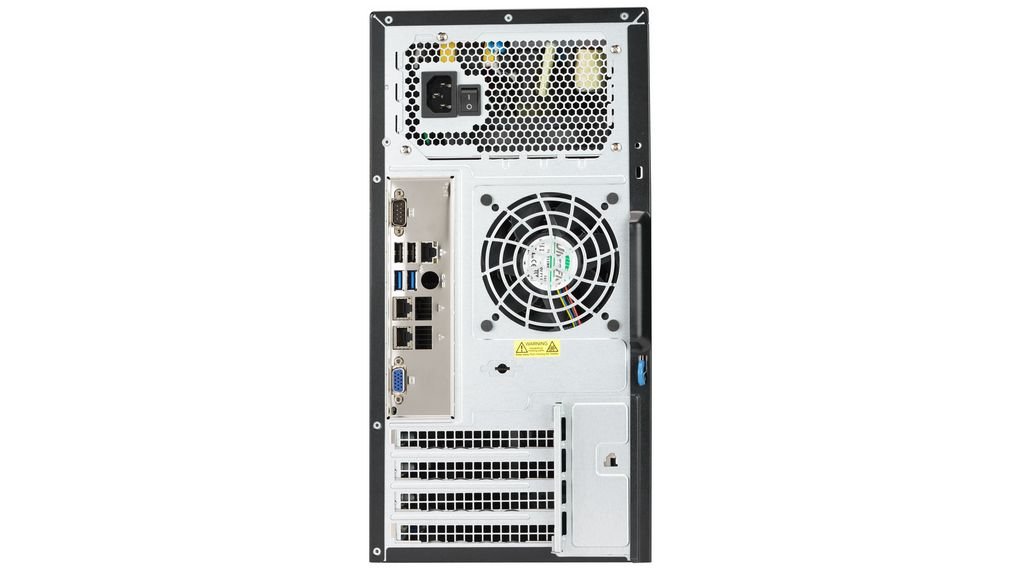

| | | SATA | | | LAN | - 2 RJ45 Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port

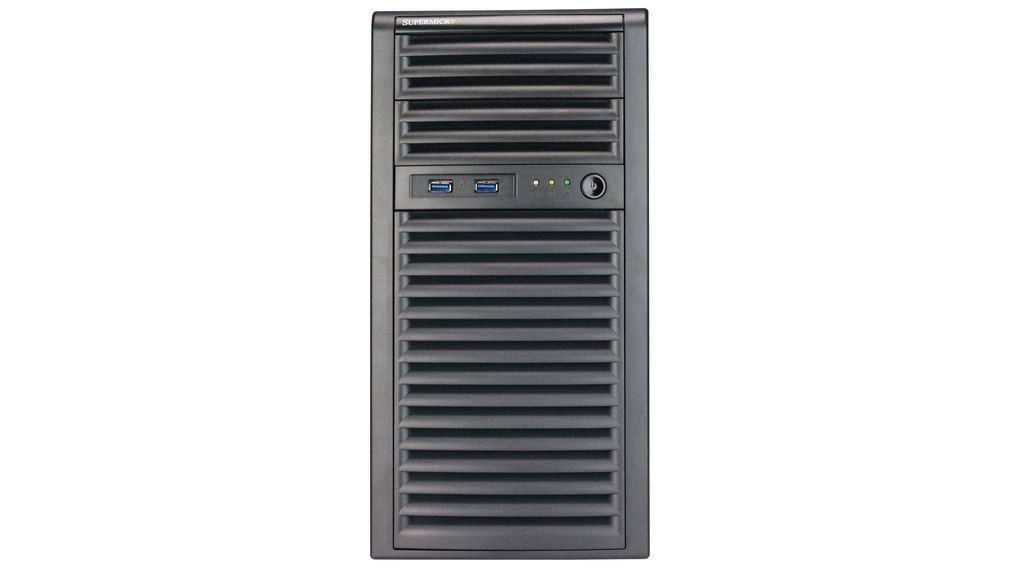

| | USB | - 2 USB 3.2 Gen1 (front)
- 2 USB 3.2 Gen1 (rear)
- 2 USB 2.0 (rear)
| | Video | | | Serial Port / Header | | | TPM | |
| | |
| | | PCI-Express | - 1 PCI-E 3.0 x8 (in x16) slot
- 2 PCI-E 3.0 x4 (in x8) slots
| | M.2 | - M.2 Interface: 1 PCI-E 3.0 x4
- M.2 Form Factor: 22110/2280
- M.2 Key: M-Key
|
| | |
| | | BIOS Type | | | BIOS Features | - ACPI 6.0
- SMBIOS 2.7
- Plug and Play (PnP)
- RTC (Real Time Clock) Wakeup
- PCI F/W 3.0
|
| | |
| | | Software | - SuperDoctor® 5
- Watch Dog
- Non-maskable Interrupt (NMI)
|
|
