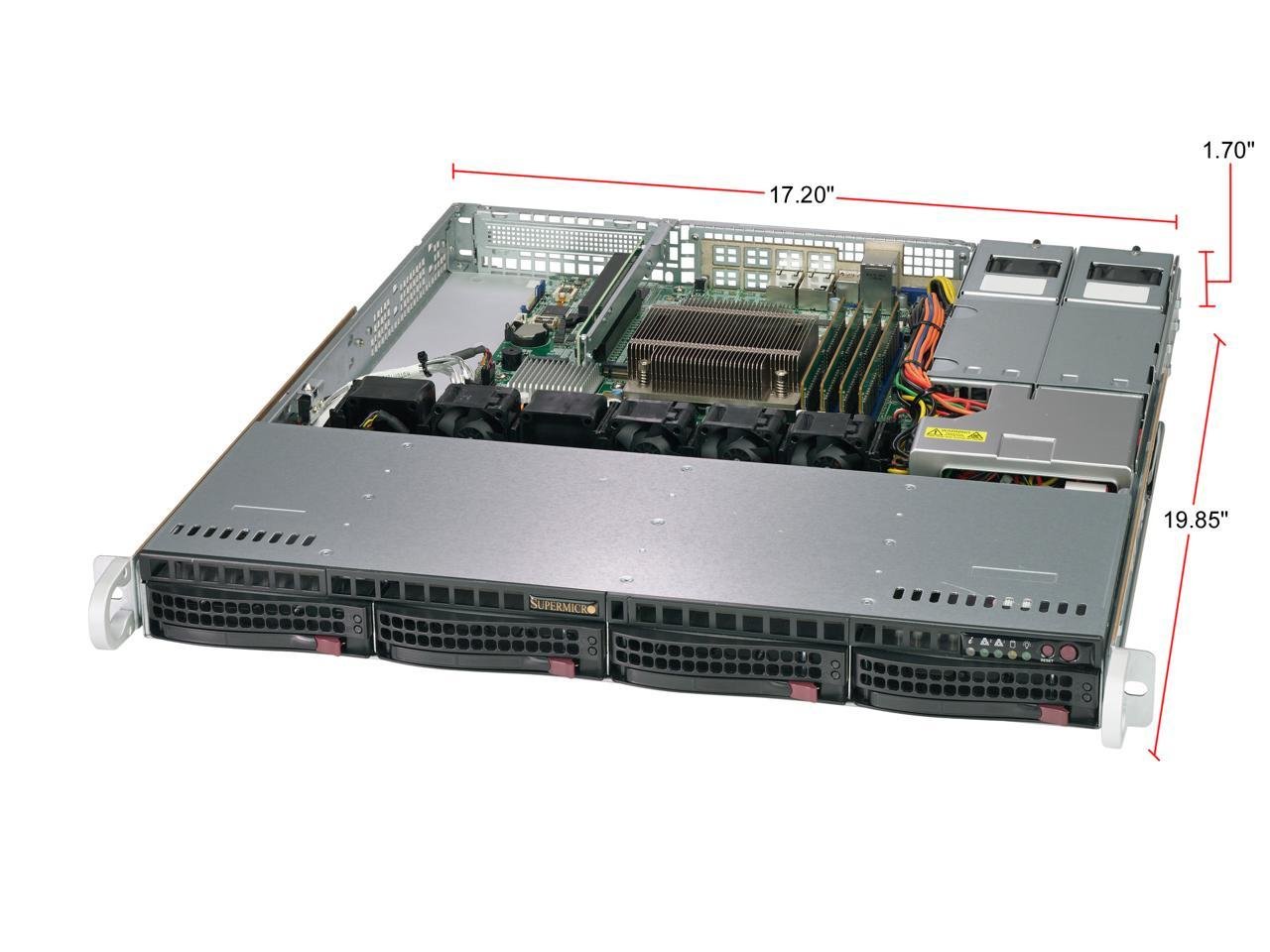

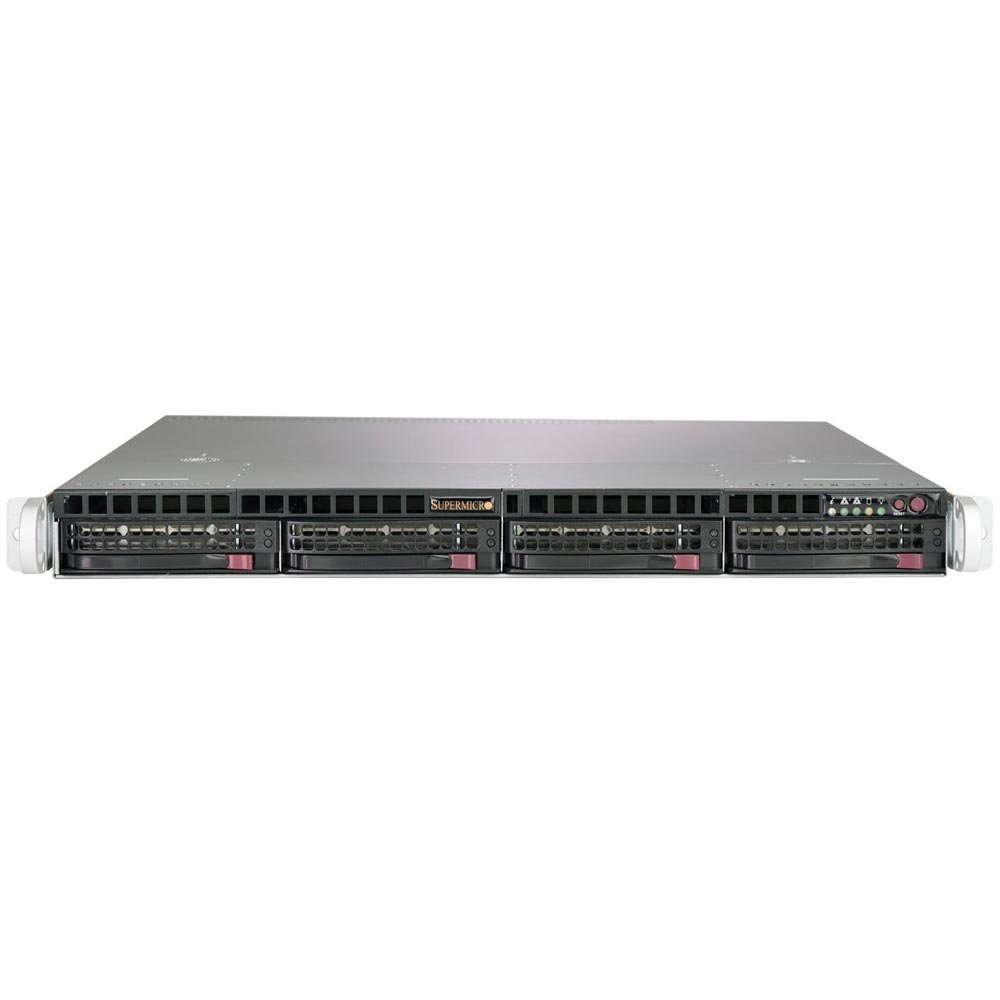

Supermicro SYS-5019C-MR

$1,247.181 Pieces ( MOQ )

Description

Product SKUs

SYS-5019C-MR	SuperServer 5019C-MR (Black)

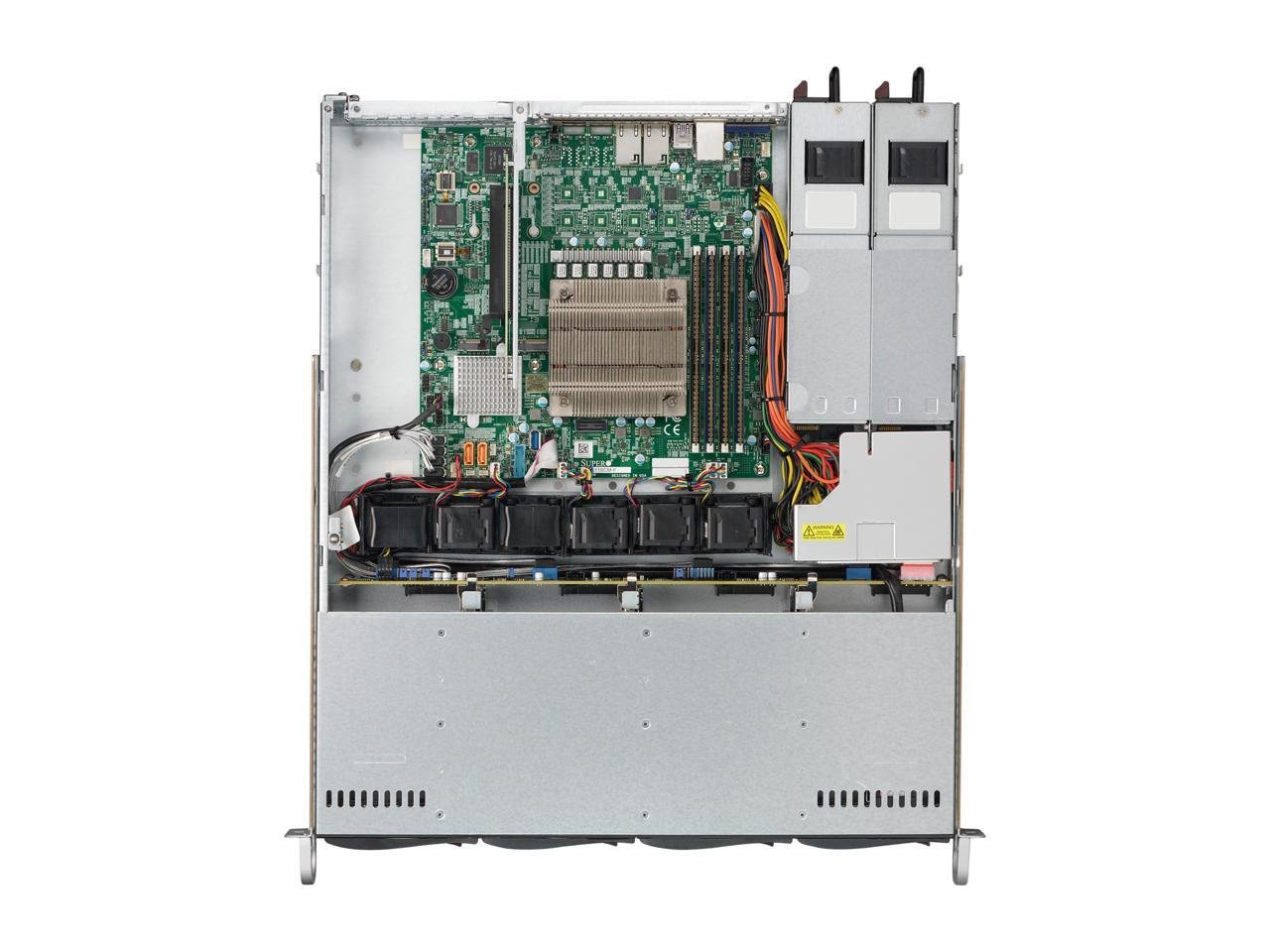

Motherboard

Super X11SCM-F


Processor

CPU	Single Socket H4 (LGA 1151), CPU TDP support up to 95W Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors
Cores	8 cores, 16 threads
Note	BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series


System Memory

Memory Capacity	4 DIMM slots Up to 128GB Unbuffered ECC UDIMM Up to DDR4-2666MHz
Memory Type	2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes	32GB, 16GB, 8GB, 4GB


On-Board Devices

Chipset	Intel® C246 chipset
SATA	SATA3 (6Gbps) via Intel C246 controller RAID 0, 1, 5, 10 support
IPMI	ASPEED AST2500
Network Controllers	Dual LAN with Intel® I210-AT
Video	ASPEED AST2500 BMC

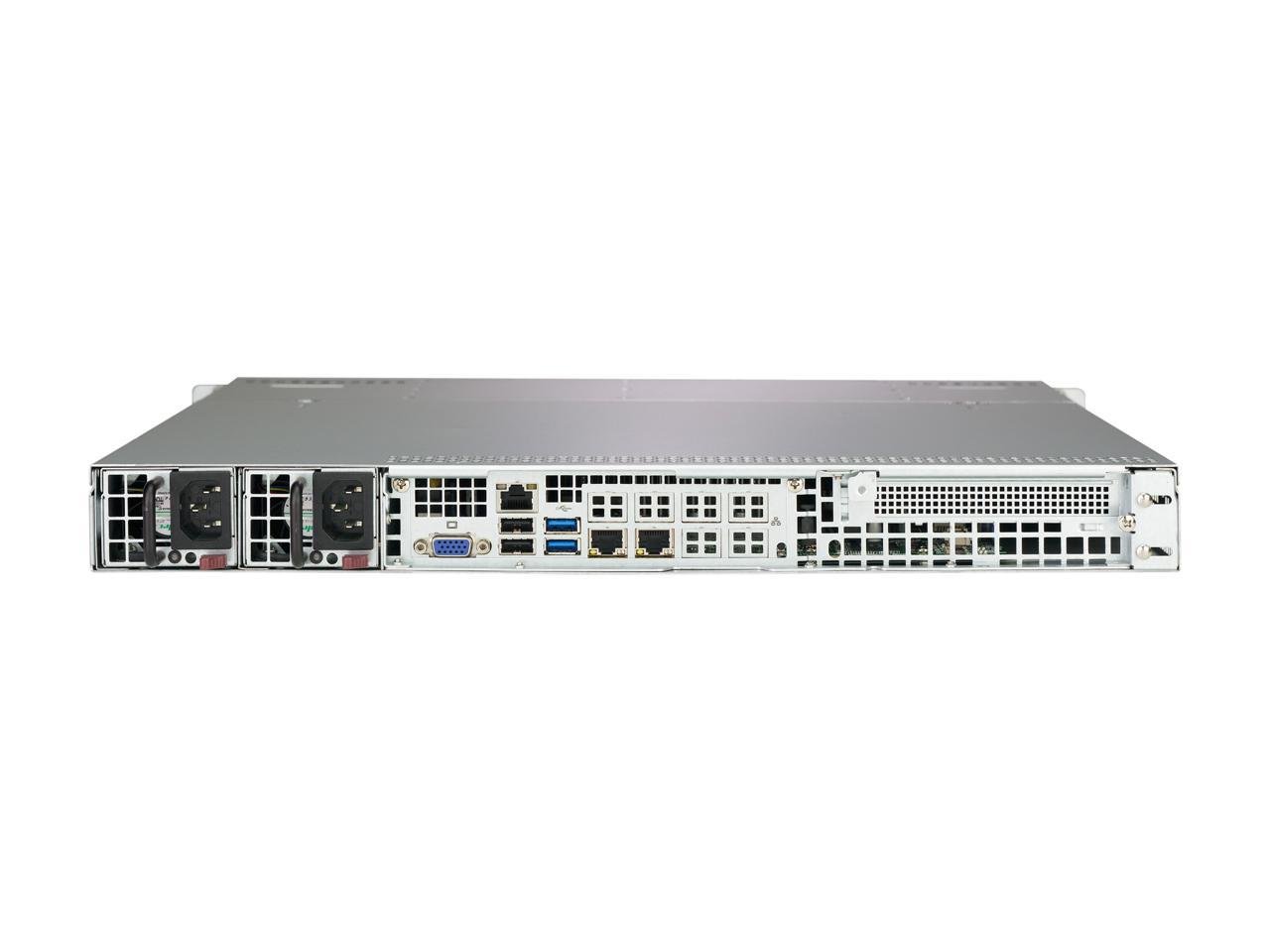

Input / Output

SATA	6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.1 ports (rear) 2 USB 2.0 ports (rear)
Video	1 VGA port
Serial Port / Header	1 COM port (header)
TPM	1 TPM 2.0 Header


System BIOS

BIOS Type	UEFI 256Mb
BIOS Features	ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0


Management

Software	Intel® Node Manager IPMI 2.0 NMI SSM, SPM, SUM Watch Dog SuperDoctor® 5
