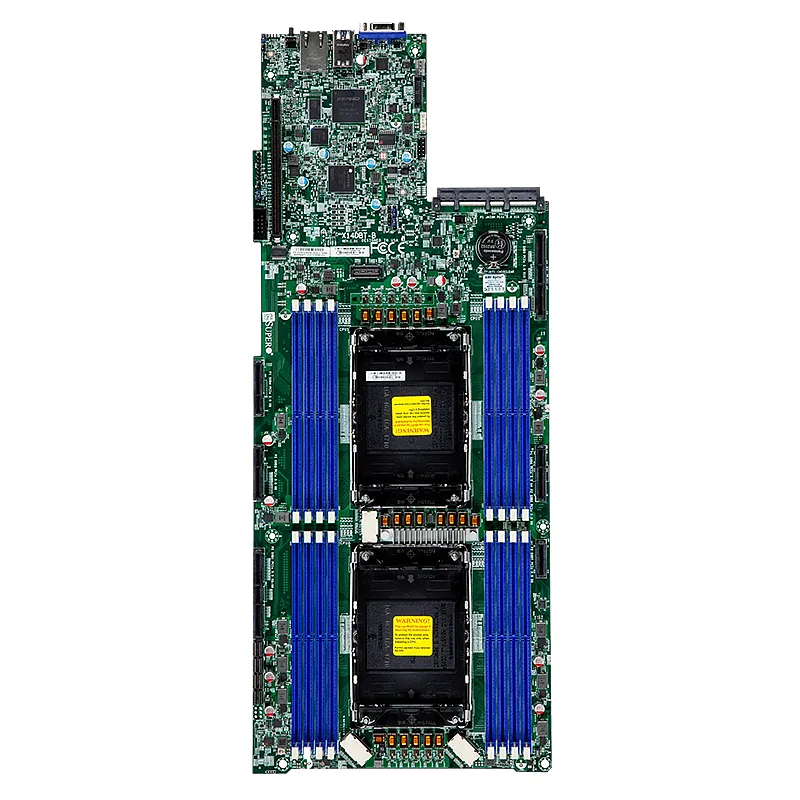

Supermicro MBD-X14DBT-B - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9

TPM

1 TPM Header

Network Controllers

Single LANAIOM for LAN

M.2

M.2 Interface: 4 PCIe 5.0 x4, RAID 0 & 1Form Factor: 22110Key: M-Key

Product SKUs

Physical Stats

Processor

CPU
Intel Xeon 6700-series processors with E-cores
Dual Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP, 4 UPI up to 24 GT/s
Core
Up to 144 (E) cores

System Memory

Memory Capacity
16 DIMM slots
Up to 2TB 3DS ECC Registered RDIMM, DDR5-6400MT/s
Memory Type
ECC DDR5 RDIMM (3DS) Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC)
DIMM Sizes
RDIMM: 32GB, 64GB, 96GB, 128GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

PCIe
1 PCIe 5.0 x16 for Left riser card support,
1 PCIe 5.0 x16 for Right riser card support,
1 PCIe 5.0 x4 (in x16 slot), For M.2 adapter to support two NVMe M.2 devices,
1 PCIe 5.0 x8 (in x16 slot), For M.2 adapter to support two NVMe M.2 devices,
1 PCIe 5.0 x16 AIOM, OCP 3.0 compliant,
1 PCIe 5.0 x16 (in x16 slot), For NVMe SCC storage card,
1 PCIe 5.0 x8, For NVMe SCC storage card,
1 PCIe 5.0 x8, For SAS SCC storage card,
1 PCIe 5.0 x8 M.2 Slot, For M.2 adapter to support RAID two NVMe M.2 devices,
3 PCIe 5.0 x8 NS connector, For cabling to SCC storage card
M.2
M.2 Interface: 4 PCIe 5.0 x4, RAID 0 & 1
Form Factor: 22110
Key: M-Key

System BIOS

Brand	Supermicro
BIOS Features	ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
TPM	1 TPM Header
Network Controllers	Single LANAIOM for LAN
M.2	M.2 Interface: 4 PCIe 5.0 x4, RAID 0 & 1Form Factor: 22110Key: M-Key
Chipset	System on Chip
DIMM Sizes	128GB, 128GBRDIMM: 16GB, 16GB, 24GB, 32GB, 48GB, 64GB, 96GB
BIOS Type	AMI 64MB AMI UEFI
Video Output	1 VGA port(s)
Dimension	7.617" x 18.86" (19.347cm x 47.8cm)
PCIe	1 PCIe 5.0 x16 (in x16 slot), 1 PCIe 5.0 x16 AIOM, 1 PCIe 5.0 x16 for Left riser card support, 1 PCIe 5.0 x16 for Right riser card support, 1 PCIe 5.0 x4 (in x16 slot), 1 PCIe 5.0 x8, 1 PCIe 5.0 x8 (in x16 slot), 1 PCIe 5.0 x8 M.2 Slot, 3 PCIe 5.0 x8 NS connector, For cabling to SCC storage card, For M.2 adapter to support RAID two NVMe M.2 devices, For M.2 adapter to support two NVMe M.2 devices, For NVMe SCC storage card, For SAS SCC storage card, OCP 3.0 compliant
USB	2 USB 3 port(s) (2 rear type A)
Form Factor	Proprietary
Memory Type	6400 MT/s ECC DDR5 RDIMM (3DS) Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC)
Application	Server
Memory Voltage	1.1V
CPU	4 UPI up to 24 GT/s, CPU TDP supports Up to 350W TDP, Intel Xeon 6700E-seriesDual Socket E2 (LGA-4710) supported
Serial Port	1 COM Port(s) (1 Serial Port)
Memory Capacity	16 DIMM slotsUp to 2TB 3DS ECC Registered RDIMM, DDR5-6400MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 144 (E) cores
