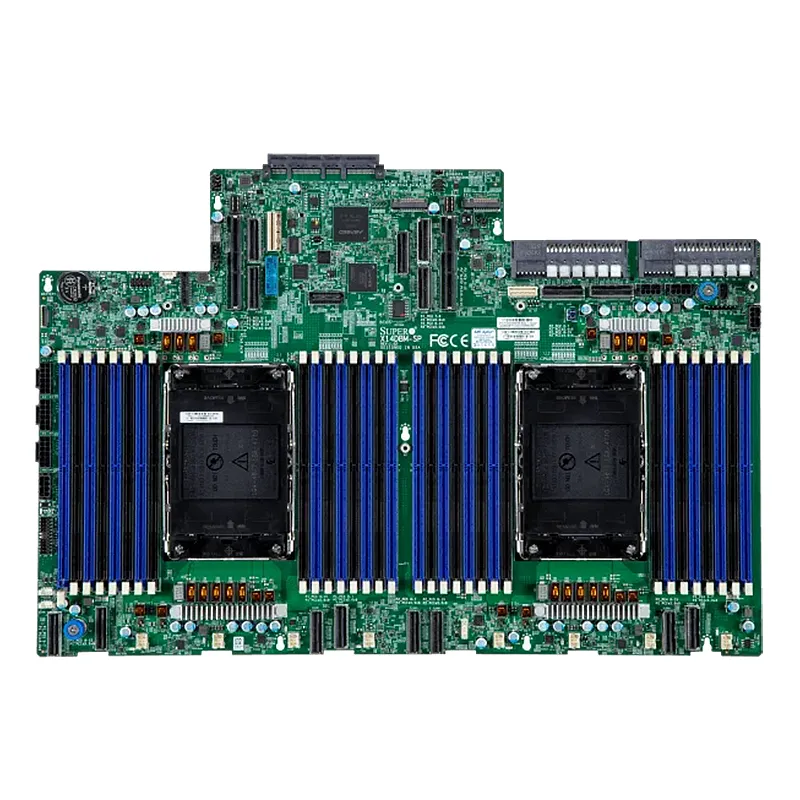

Supermicro MBD-X14DBM-SP - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9

M.2

M.2 Interface: 2 PCIe 5.0 x2Form Factor: 2280/22110Key: M-Key

Chipset

System on Chip

DIMM Sizes

128GB, 64GB, 96GB, RDIMM: 32GB

Product SKUs

Physical Stats

Processor

CPU
Intel Xeon 6700-series processors with E-cores
Dual Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP
Core
Up to 144 (E) cores

System Memory

Memory Capacity
32 DIMM slots
Up to 4TB ECC Registered RDIMM, DDR5-6400MT/s
Memory Type
ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
DIMM Sizes
RDIMM: 32GB, 64GB, 96GB, 128GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Expansion Slots

System BIOS

Brand	Supermicro
BIOS Features	ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
M.2	M.2 Interface: 2 PCIe 5.0 x2Form Factor: 2280/22110Key: M-Key
Chipset	System on Chip
DIMM Sizes	128GB, 64GB, 96GB, RDIMM: 32GB
BIOS Type	AMI 64MB AMI UEFI
Dimension	17" x 11.5" (43.18cm x 29.21cm)
PCIe	15 PCIe 5.0 x8 MCIO connector
Form Factor	Proprietary
Memory Type	ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
Application	Server
Memory Voltage	1.1V
CPU	CPU TDP supports Up to 350W TDP, Intel Xeon 6700-series processors with E-coresDual Socket E2 (LGA-4710) supported
Memory Capacity	32 DIMM slotsUp to 4TB ECC Registered RDIMM, DDR5-6400MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 144 (E) cores
