Product SKUs

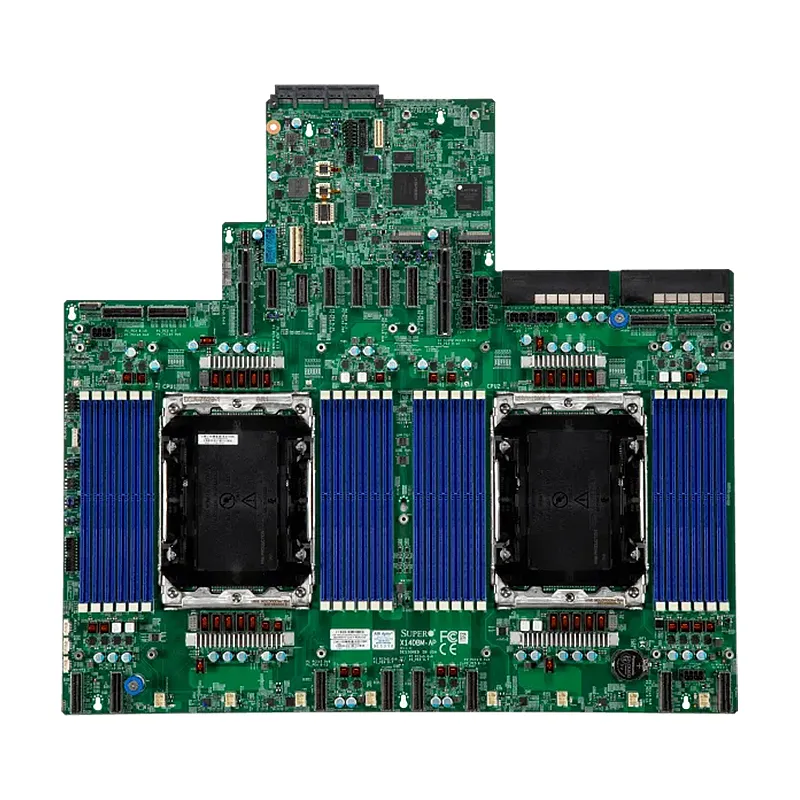

- MBD-X14DBM-APL
Physical Stats
- Form FactorProprietary
- Dimension17″ x 15.565″ (43.18cm x 39.54cm)
Processor
- CPUDual Socket BR (LGA-7529) supported, CPU TDP supports Up to 500W TDP
- CoreUp to 288 (E) cores
System Memory
- Memory Capacity24 DIMM slots
Up to 6TB ECC Registered MRDIMM, DDR5-8800MT/s; Up to 6TB 3DS ECC Registered RDIMM, DDR5-6400MT/s - Memory TypeECC DDR5 MRDIMM, RDIMM (3DS) Up to 256GB of memory with speeds of up to 8800 MT/s (MRDIMM 1DPC) or 6400 MT/s (RDIMM 1DPC)
- DIMM SizesMRDIMM: 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
RDIMM: 32GB, 48GB, 64GB, 96GB, 128GB, 256GB - Memory Voltage1.1V
- Error DetectionCorrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
- ChipsetSystem on Chip
- Network Controllers
Expansion Slots
- PCIe16 PCIe 5.0 x8 MCIO connector
- M.2M.2 Interface: 2 PCIe 5.0 x2
Form Factor: 2280/22110
Key: M-Key
System BIOS
- BIOS TypeAMI 64MB AMI UEFI
- BIOS FeaturesACPI 6.5
SMBIOS 3.7 or later
UEFI 2.9
