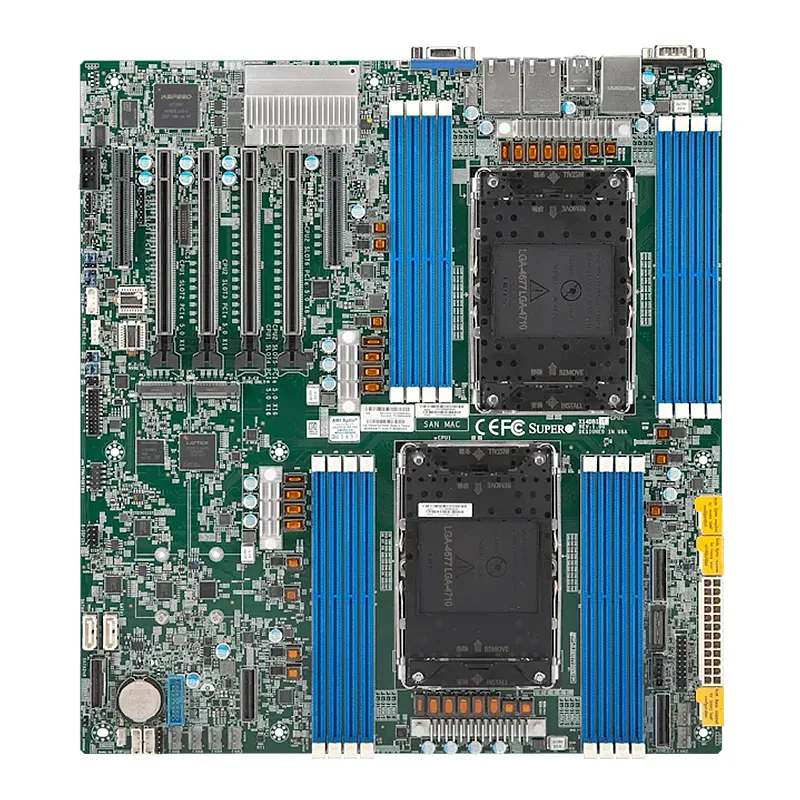

Supermicro MBD-X14DBI-T - HYPERTEK SYSTEMS B.V

Brand

Supermicro

TPM

1 TPM Header

Network Controllers

Dual LAN with Broadcom BCM57416 10GBase-TSingle LAN with Realtek RTL8211F PHY

M.2

M.2 Interface: 2 PCIe 5.0 x4, RAID 0 & 1Form Factor: 2280/22110/25110Key: M-Key

Chipset

System on Chip

Product SKUs

Physical Stats

Processor

CPU
Intel Xeon 6700-series processors with E-cores
Dual Socket E2 (LGA-4710) supported, CPU TDP supports Up to 350W TDP
Core
Up to 144 (E) cores

System Memory

Memory Capacity
16 DIMM slots
Up to 2TB ECC Registered RDIMM, DDR5-6400MT/s
Memory Type
6400 MT/s ECC DDR5 RDIMM Up to 128GB of memory with speeds of up to 6400 MT/s(1DPC) or 5200 MT/s (2DPC)
DIMM Sizes
32GB, 64GB, 96GB, 128GB
RDIMM: 32GB, 64GB, 96GB, 128GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

System BIOS

Brand	Supermicro
TPM	1 TPM Header
Network Controllers	Dual LAN with Broadcom BCM57416 10GBase-TSingle LAN with Realtek RTL8211F PHY
M.2	M.2 Interface: 2 PCIe 5.0 x4, RAID 0 & 1Form Factor: 2280/22110/25110Key: M-Key
Chipset	System on Chip
DIMM Sizes	128GB, 16GB, 24GB, 256GB, 256GBRDIMM: 16GB, 32GB, 48GB, 64GB, 96GB
Video Output	1 VGA D-Sub Connector port(s)
Dimension	12.1" x 13.05" (30.74cm x 33.15cm)
PCIe	2 PCIe 5.0 x8, 4 PCIe 5.0 x16
USB	6 USB 3.1 Gen1 port(s) (2 via header; 4 rear)
Form Factor	E-ATX
Memory Type	6400 MT/s ECC DDR5 RDIMM Up to 256GB of memory with speeds of up to 6400 MT/s(1DPC)
Application	Server
IPMI	ASPEED AST2600 BMC
Others	3 MCIO PCIe 5.0 x8
Memory Voltage	1.1V
CPU	3 UPI up to 24 GT/s, CPU TDP supports Up to 350W TDP, Dual Socket E2 (LGA-4710) supported
Serial Port	2 COM Port(s) (1 rear; 1 header)
SATA	10 SATA3 port(s)
Memory Capacity	16 DIMM slotsUp to 4TB ECC Registered RDIMM, DDR5-6400MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 144 (E) cores
