| Brand | Supermicro |
|---|---|
| BIOS Features | ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9 |
| TPM | 1 TPM Header |
| Network Controllers | Dual LAN with Broadcom BCM5720 1GBase-TSingle LAN with Realtek RTL8211F PHY |
| M.2 | M.2 Interface: 2 PCIe 5.0 x4, RAID 0 & 1Form Factor: 2280/22110/25110Key: M-Key |
| Chipset | System on Chip |
| DIMM Sizes | 128GB, 16GB, 24GB, 256GB, 256GBRDIMM: 16GB, 32GB, 48GB, 64GB, 96GB |
| BIOS Type | AMI 64MB AMI UEFI |
| Video Output | 1 VGA D-Sub Connector port(s) |
| Dimension | 12.1" x 13.05" (30.74cm x 33.15cm) |
| PCIe | 2 PCIe 5.0 x8, 4 PCIe 5.0 x16 |
| USB | 6 USB 3.1 Gen1 port(s) (2 via header; 4 rear) |
| Form Factor | E-ATX |
| Memory Type | 6400 MT/s ECC DDR5 RDIMM Up to 256GB of memory with speeds of up to 6400 MT/s(1DPC) |
| Application | Server |
| IPMI | ASPEED AST2600 BMC |
| Others | 3 MCIO PCIe 5.0 x8 |
| Memory Voltage | 1.1V |
| CPU | 3 UPI up to 24 GT/s, CPU TDP supports Up to 350W TDP, Dual Socket E2 (LGA-4710) supported |
| Serial Port | 2 COM Port(s) (1 rear; 1 header) |
| SATA | 10 SATA3 port(s) |
| Memory Capacity | 16 DIMM slotsUp to 4TB ECC Registered RDIMM, DDR5-6400MT/s |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Core | Up to 144 (E) cores |

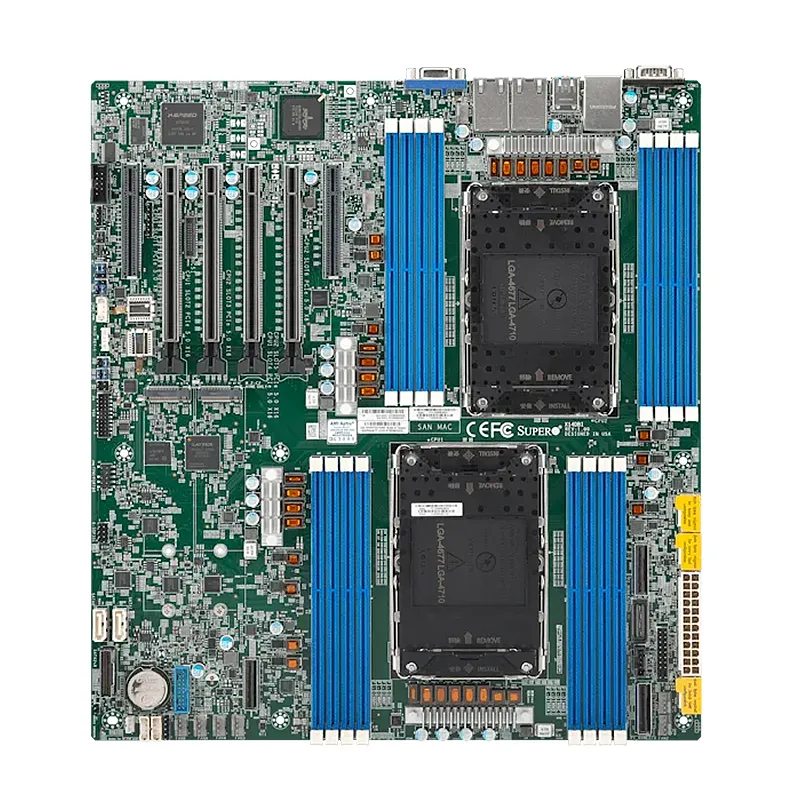

* NOTE: Image may not exactly match the product
Supermicro MBD-X14DBI-B
Quote1 Piece(MOQ)
| Brand | Supermicro |
|---|---|
| BIOS Features | ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9 |
| TPM | 1 TPM Header |
| Network Controllers | Dual LAN with Broadcom BCM5720 1GBase-TSingle LAN with Realtek RTL8211F PHY |
| M.2 | M.2 Interface: 2 PCIe 5.0 x4, RAID 0 & 1Form Factor: 2280/22110/25110Key: M-Key |
