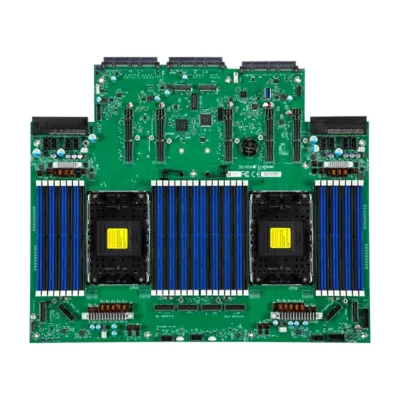

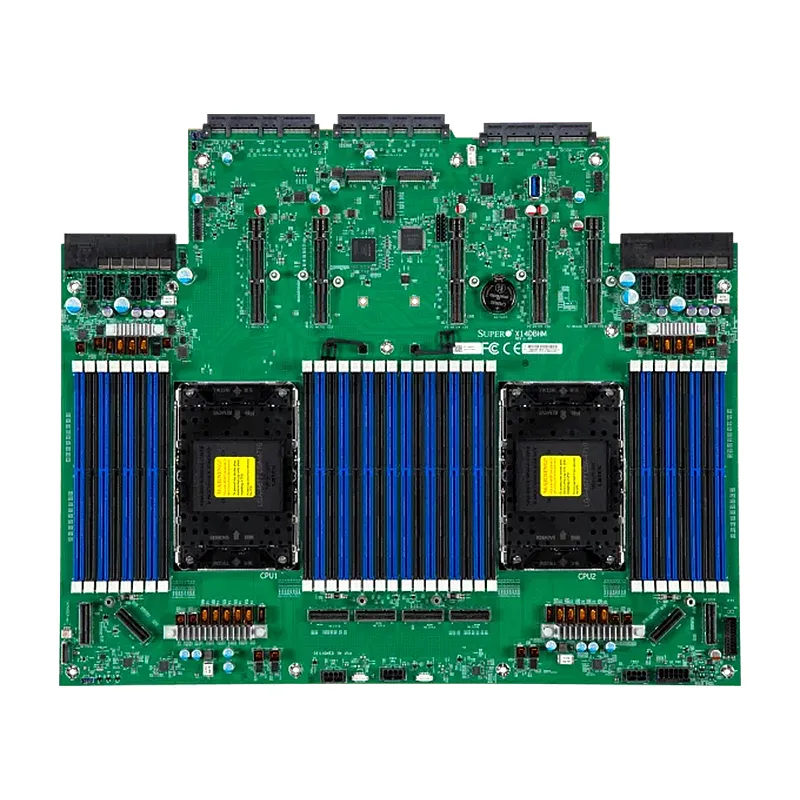

Supermicro MBD-X14DBHM - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9

TPM

1 TPM Header1 TPM TPM 2.0 onboard

M.2

M.2 Interface: 2 PCIe 5.0 x4Form Factor: 2280/22110Key: M-Key

Chipset

System on Chip

Product SKUs

Physical Stats

Processor

System Memory

Memory Capacity
32 DIMM slots
Up to 8TB 3DS ECC RDIMM, DDR5-6400MT/s
Memory Type
6400 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 6400 MT/s (1DPC) or 5200MT/s (2DPC)
DIMM Sizes
16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

PCIe
2 PCIe 5.0 x16 AIOM Slot, AIOM slots Superset of OCP 3.0 Expansion,
4 PCIe 5.0 x16,
1 PCIe 5.0 x8 (in x16 slot),
8 PCIe 5.0 x8
M.2
M.2 Interface: 2 PCIe 5.0 x4
Form Factor: 2280/22110
Key: M-Key

System BIOS

Brand	Supermicro
BIOS Features	ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
TPM	1 TPM Header1 TPM TPM 2.0 onboard
M.2	M.2 Interface: 2 PCIe 5.0 x4Form Factor: 2280/22110Key: M-Key
Chipset	System on Chip
DIMM Sizes	128GB, 16GB, 24GB, 256GB, 256GBRDIMM: 16GB, 32GB, 48GB, 64GB, 96GB
BIOS Type	AMI
LAN	2 AIOM
Dimension	16.66" x 13.7" (42.3164cm x 34.798cm)
PCIe	1 PCIe 5.0 x8 (in x16 slot), 2 PCIe 5.0 x16 AIOM Slot, 4 PCIe 5.0 x16, 8 PCIe 5.0 x8, AIOM slots Superset of OCP 3.0 Expansion
USB	1 USB 3.2 Gen1 port(s) (1 type A)
Form Factor	OCP M-FLW
Memory Type	6400 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 6400 MT/s (1DPC) or 5200MT/s (2DPC)
Application	Server
Memory Voltage	1.1V
CPU	CPU TDP supports Up to 350W TDP, Dual Socket E2 (LGA-4710) supported
Memory Capacity	32 DIMM slotsUp to 8TB 3DS ECC RDIMM, DDR5-6400MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 144 (E) cores
