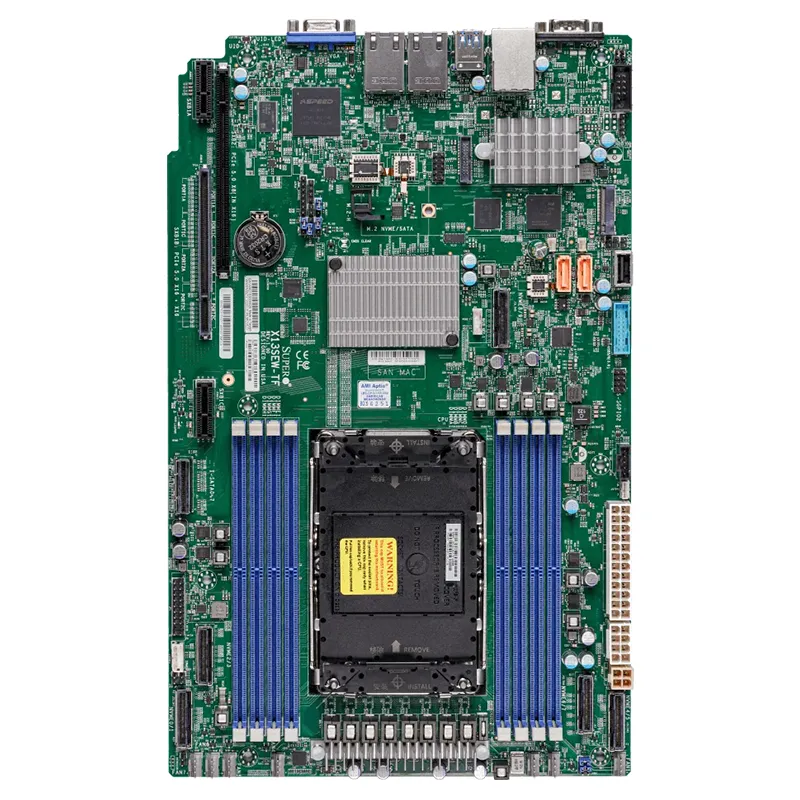

Supermicro MBD-X13SEW-TF-OS1 - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 6.4SMBIOS 3.5UEFI 2.8 or above

Graphics

1 ASPEED AST2600 BMC port(s)

TPM

1 TPM Header

Network Controllers

Dual LAN with 10GBase-T with Intel X550

Product SKUs

Physical Stats

Processor

CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
Single Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
Core
Up to 64 cores

System Memory

Memory Capacity
8 DIMM slots
Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
DIMM Sizes
16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors

On-Board Devices

Input / Output

SATA
10 SATA3 (6Gbps) port(s)
LAN
2 RJ45 10 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
5 USB 2.0 port(s) (2 via header; 2 rear; 1 Type A)
4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Video Output
1 VGA D-Sub Connector port(s)
Serial Port
2 COM Port(s) (1 header; 1 rear)
DOM
2 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header

Expansion Slots

PCIe
1 PCIe 5.0 x8 Right Riser (in x16) slot,
1 PCIe 5.0 x32 Left Riser Slot,
5 PCIe 5.0 x8 PCIe5.0 MCIO connector
M.2
M.2 Interface: 1 PCIe 3.0 x2
Form Factor: 2280/22110
Key: M-Key

System BIOS

Brand	Supermicro
BIOS Features	ACPI 6.4SMBIOS 3.5UEFI 2.8 or above
Graphics	1 ASPEED AST2600 BMC port(s)
TPM	1 TPM Header
Network Controllers	Dual LAN with 10GBase-T with Intel X550
M.2	M.2 Interface: 1 PCIe 3.0 x2Form Factor: 2280/22110Key: M-Key
Chipset	Intel C741
DIMM Sizes	128GB, 16GB, 24GB, 256GB, 32GB, 48GB, 64GB, 96GB
BIOS Type	AMI UEFI
LAN	2 RJ45 10 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port
Video Output	1 VGA D-Sub Connector port(s)
DOM	DOM
Dimension	8" x 13" (20.32cm x 33.02cm)
PCIe	1 PCIe 5.0 x32 Left Riser Slot, 1 PCIe 5.0 x8 Right Riser (in x16) slot, 5 PCIe 5.0 x8 PCIe5.0 MCIO connector
USB	5 USB 2.0 port(s) (2 via header; 2 rear; 1 Type A)4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Form Factor	Proprietary WIO
Memory Type	5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.1V
CPU	5th Gen Intel XeonSingle Socket LGA-4677 (E) supported, CPU TDP supports Up to 350W TDP
Serial Port	2 COM Port(s) (1 header; 1 rear)
SATA	10 SATA3 (6Gbps) port(s)
Memory Capacity	8 DIMM slotsUp to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
Error Detection	Corrects single-bit errors
Core	Up to 64 cores
