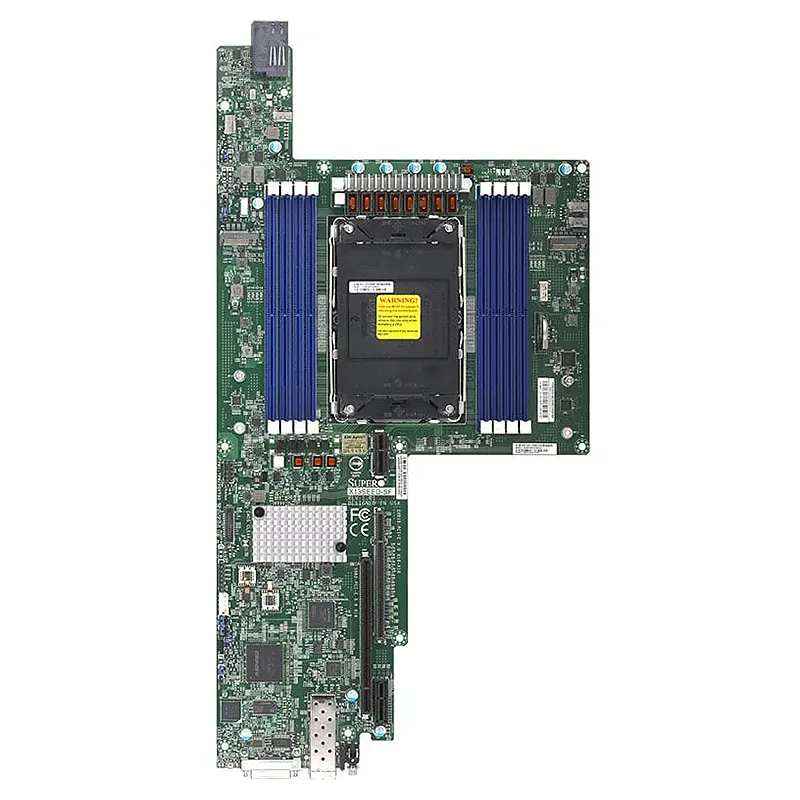

Supermicro MBD-X13SEED-SF - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2

TPM

1 TPM Header & Chip both

Network Controllers

Single LAN with Intel i210 Gigabit Ethernet Controller

M.2

M.2 Interface: 2 PCIe 5.0 x4Form Factor: 2280/22110Key: M-Key

Product SKUs

Physical Stats

Processor

CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
Single Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
Core
Up to 64 cores

System Memory

Memory Capacity
8 DIMM slots
Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
DIMM Sizes
16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors

On-Board Devices

Input / Output

Expansion Slots

PCIe
1 PCIe 5.0 x16 Right Riser Slot, support LP PCIe card,
2 PCIe 5.0 x16 Left Riser Slot, support FHHL PCIe card
M.2
M.2 Interface: 2 PCIe 5.0 x4
Form Factor: 2280/22110
Key: M-Key

System BIOS

BIOS Type
32MB AMI UEFI
BIOS Features
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2

Management

System Management Software
IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
Power Configurations
ACPI Power Management, Power-on mode control for AC power loss recovery

Brand	Supermicro
BIOS Features	ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2
TPM	1 TPM Header & Chip both
Network Controllers	Single LAN with Intel i210 Gigabit Ethernet Controller
M.2	M.2 Interface: 2 PCIe 5.0 x4Form Factor: 2280/22110Key: M-Key
Chipset	Intel C741
DIMM Sizes	128GB, 16GB, 24GB, 256GB, 32GB, 48GB, 64GB, 96GB
BIOS Type	32MB AMI UEFI
Video Output	1 VGA port(s) Via KVM connector
Dimension	16.36" x 8.53" (41.56cm x 21.66cm)
PCIe	1 PCIe 5.0 x16 Right Riser Slot, 2 PCIe 5.0 x16 Left Riser Slot, support FHHL PCIe card, support LP PCIe card
USB	2 USB 2 port(s) (2 type A Via KVM connector)
Form Factor	Proprietary
Memory Type	5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.1V
CPU	5th Gen Intel XeonSingle Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
Hardware	Trusted Platform Module (TPM) 2.0
Serial Port	1 COM Port(s) (1 Serial Port Via KVM connector)
Memory Capacity	8 DIMM slotsUp to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
Error Detection	Corrects single-bit errors
Core	Up to 64 cores
