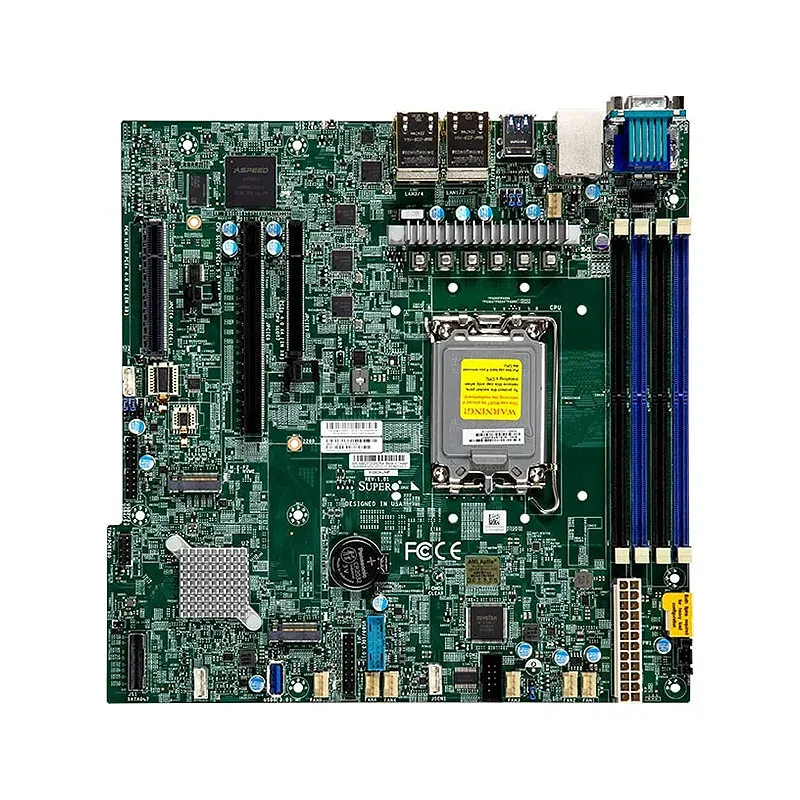

Supermicro MBD-X13SCH-LN4F - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 6.4SMBIOS 3.5UEFI 2.8Plug and Play (PnP)PCI FW 3.3

Graphics

1 ASPEED AST2600 BMC port(s)

TPM

1 TPM Header

Network Controllers

Quad LAN with 1GbE with Intel I210

Product SKUs

Physical Stats

Processor

CPU
Intel Xeon E-2400/Pentium* Processor
Single Socket Socket V0 (LGA-1700) supported, CPU TDP supports Up to 95W TDP
*Pentium G7400 and G7400T
Core
Up to 8 cores

System Memory

Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s
Memory Type
4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (2DPC)
DIMM Sizes
8GB, 16GB, 32GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

SATA
8 SATA3 (6Gbps) port(s) via Slimline SAS x8 connector
LAN
4 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
6 USB 2.0 port(s) (4 via header; 2 rear)
5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output
1 VGA D-Sub Connector port(s)
Serial Port
2 COM Port(s) (1 header; 1 rear)
TPM
1 TPM Header

Expansion Slots

System BIOS

Management

Power Configurations
ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism, Wake-On-LAN

Brand	Supermicro
BIOS Features	ACPI 6.4SMBIOS 3.5UEFI 2.8Plug and Play (PnP)PCI FW 3.3
Graphics	1 ASPEED AST2600 BMC port(s)
TPM	1 TPM Header
Network Controllers	Quad LAN with 1GbE with Intel I210
M.2	M.2 Interface: 2 PCIe 4.0 x4Form Factor: 2280/22110Key: M-Key
Chipset	Intel C266
DIMM Sizes	16GB, 32GB, 8GB
BIOS Type	AMI 32MB AMI UEFI
LAN	4 RJ45 Gigabit Ethernet LAN ports1 RJ45 Dedicated IPMI LAN port
Video Output	1 VGA D-Sub Connector port(s)
Dimension	9.6" x 9.6" (24.38cm x 24.38cm)
PCIe	1 PCIe 5.0 x16, 2 PCIe 4.0 x4 (in x8 slot)
USB	6 USB 2.0 port(s) (4 via header; 2 rear)5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Form Factor	Micro-ATX
Memory Type	4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (2DPC)
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.1V
CPU	CPU TDP supports Up to 95W TDP, Intel Xeon E-2400/Pentium* ProcessorSingle Socket Socket V0 (LGA-1700) supported
Hardware	Trusted Platform Module (TPM) 2.0
Serial Port	2 COM Port(s) (1 header; 1 rear)
SATA	8 SATA3 (6Gbps) port(s) via Slimline SAS x8 connector
Memory Capacity	4 DIMM slotsUp to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 8 cores
