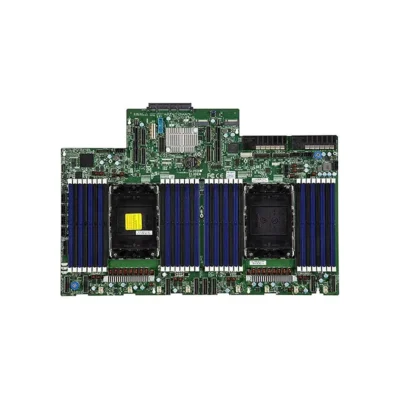

Supermicro MBD-X13DEM - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2

TPM

1 TPM Header

M.2

22110Key: M-Key, M.2 Interface: 2 PCIe 3.0 x2Form Factor: 2280

Chipset

Intel C741

Product SKUs

Physical Stats

Processor

CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors and Intel Xeon Max Series processors
Dual Socket V0 (LGA-4677) supported, CPU TDP supports Up to 350W TDP
SP XCC, SP MCC, and MAX Series (HBM) SKUs are supported
Core
Up to 64 cores

System Memory

Memory Capacity
32 DIMM slots
Up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s
Memory Type
5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) or 4400 MT/s (2DPC)
DIMM Sizes
16GB, 32GB, 64GB, 96(XCC Only)GB, 128GB, 256GB
RDIMM: Up to 256GB
Memory Voltage
1.1V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

PCIe
4 PCIe 5.0 x16 (in x16 slot),
2 PCIe 5.0 x16 AIOM Slot, AIOM slots Superset of OCP 3.0 Expansion
M.2
M.2 Interface: 2 PCIe 3.0 x2
Form Factor: 2280, 22110
Key: M-Key

System BIOS

BIOS Type
AMI 64MB AMI UEFI
BIOS Features
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2

Brand	Supermicro
BIOS Features	ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2
TPM	1 TPM Header
M.2	22110Key: M-Key, M.2 Interface: 2 PCIe 3.0 x2Form Factor: 2280
Chipset	Intel C741
DIMM Sizes	128GB, 16GB, 256GBRDIMM: Up to 256GB, 32GB, 64GB, 96(XCC Only)GB
BIOS Type	AMI 64MB AMI UEFI
Video Output	1 VGA port(s)
Dimension	11.5" x 17" (29.21cm x 43.18cm)
PCIe	2 PCIe 5.0 x16 AIOM Slot, 4 PCIe 5.0 x16 (in x16 slot), AIOM slots Superset of OCP 3.0 Expansion
USB	1 USB 3 port(s) (1 via header)
Form Factor	Proprietary
Memory Type	5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) or 4400 MT/s (2DPC)
Application	Server
Others	8 MCIO PCIe 5.0 x8
Memory Voltage	1.1V
CPU	5th Gen Intel XeonDual Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
SATA	8 SATA3 (6Gbps) port(s)
Memory Capacity	32 DIMM slotsUp to 8TB 3DS ECC RDIMM, DDR5-5600MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 64 cores
