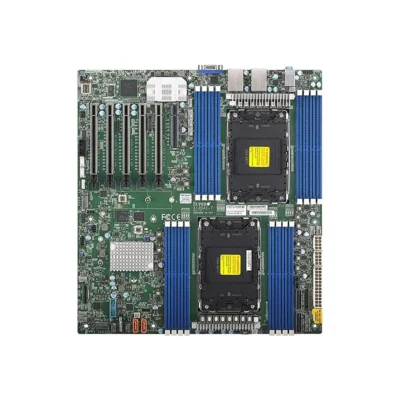

Supermicro MBD-X13DAI-T - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2

TPM

1 TPM Header

Network Controllers

Dual LAN with Broadcom BCM57416 10GBase-T

M.2

M.2 Interface: 2 PCIe 5.0 x4Form Factor: 2280/22110Key: M-Key

Product SKUs

Physical Stats

Processor

CPU
5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
Dual Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
Core
Up to 64 cores

System Memory

On-Board Devices

Input / Output

USB
6 USB 3 port(s) (2 headers; 4 rear type A)
2 USB 2 port(s) (2 headers)
1 USB 3.1 Gen2 port(s) (1 headers)
Video Output
1 VGA D-Sub Connector port(s)
Serial Port
2 COM Port(s) (1 header; 1 rear)
TPM
1 TPM Header

Expansion Slots

System BIOS

BIOS Type
AMI 32MB AMI UEFI
BIOS Features
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2

Brand	Supermicro
BIOS Features	ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2
TPM	1 TPM Header
Network Controllers	Dual LAN with Broadcom BCM57416 10GBase-T
M.2	M.2 Interface: 2 PCIe 5.0 x4Form Factor: 2280/22110Key: M-Key
Chipset	Intel C741
DIMM Sizes	128GB, 16GB, 256GBRDIMM: Up to 256GB, 32GB, 64GB, 96GB
BIOS Type	AMI 32MB AMI UEFI
Video Output	1 VGA D-Sub Connector port(s)
Dimension	12.1" x 13.1" (30.734cm x 33.274cm)
PCIe	1 PCIe 5.0 x8, 5 PCIe 5.0 x16
USB	6 USB 3 port(s) (2 headers; 4 rear type A)2 USB 2 port(s) (2 headers)1 USB 3.1 Gen2 port(s) (1 headers)
Form Factor	E-ATX
Memory Type	5600/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) 256GB 5600MT/s
Application	Server
Memory Voltage	1.1V
CPU	5th Gen Intel XeonDual Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
Hardware	Trusted Platform Module (TPM) 2.0
Serial Port	2 COM Port(s) (1 header; 1 rear)
SATA	1, 102 SATA3 ports; RAID 0, 5, 8 SATA3 ports; RAID 0
Memory Capacity	16 DIMM slotsUp to 4TB 3DS ECC RDIMM, DDR5-5600MT/s
Error Detection	Detects double-bit errors (using ECC memory)
Core	Up to 64 cores
