Supermicro MBD-X12STL-IF wholesale

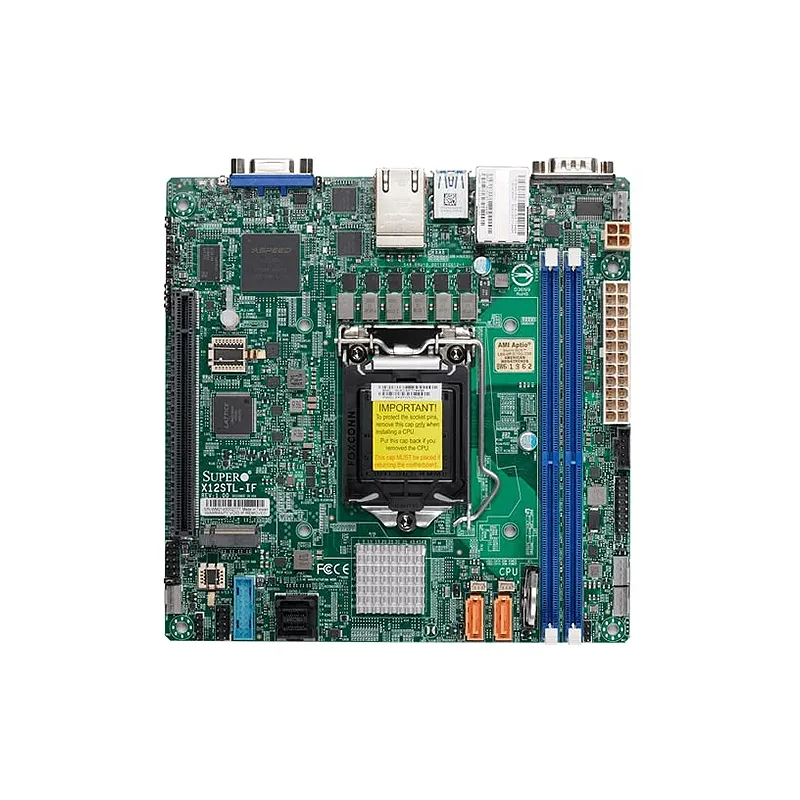

* NOTE: Image may not exactly match the product

Supermicro MBD-X12STL-IF

Quote1 Piece(MOQ)

BrandSupermicro
BIOS FeaturesACPI 6.0SMBIOS 3.3Plug and Play (PnP)RTC (Real Time Clock) WakeupUEFI 2.7USB Keyboard supportPCI 3.0
Graphics1 ASPEED AST2600 BMC port(s)
TPM1 TPM Header
Network ControllersDual LAN with Intel i210 Gigabit Ethernet Controller

Product SKUs

  • MBD-X12STL-IF

Physical Stats

  • Form Factor
    Mini-ITX
  • Dimension
    6.7″ x 6.7″ (17.02cm x 17.02cm)

Processor

  • CPU
    10th Generation Intel Pentium Processor, Intel Xeon E-2300 Processor
    Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
  • Core
    Up to 8 cores

System Memory

  • Memory Capacity
    2 DIMM slots
    Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MT/s
  • Memory Type
    3200/2933/2666 MT/s SDRAM
  • DIMM Sizes
    4GB, 8GB, 16GB, 32GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C252
  • SATA
    Intel C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2600 BMC
  • Graphics
    1 ASPEED AST2600 BMC port(s)
  • Network Controllers
    Dual LAN with Intel i210 Gigabit Ethernet Controller

Input / Output

  • SATA
    6 SATA3 (6Gbps) port(s)
  • LAN
    2 RJ45 Gigabit Ethernet LAN ports
  • USB
    4 USB 2.0 port(s) (2 via header; 2 rear)
    4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
  • Video Output
    1 VGA D-Sub Connector port(s)
  • Serial Port
    1 COM Port(s) (1 rear)
  • DOM
    2 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    1 PCIe 4.0 x16
  • M.2
    M.2 Interface: 1 PCIe 3.0 x4
    Form Factor: 2280
    Key: M-Key

System BIOS

  • BIOS Type
    256MB UEFI
  • BIOS Features
    ACPI 6.0
    SMBIOS 3.3
    Plug and Play (PnP)
    RTC (Real Time Clock) Wakeup
    UEFI 2.7
    USB Keyboard support
    PCI 3.0

Management

  • System Management Software
    IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • Power Configurations
    Power-on mode for AC power recovery, ACPI Power Management
Brand

Supermicro

BIOS Features

ACPI 6.0SMBIOS 3.3Plug and Play (PnP)RTC (Real Time Clock) WakeupUEFI 2.7USB Keyboard supportPCI 3.0

Graphics

1 ASPEED AST2600 BMC port(s)

TPM

1 TPM Header

Network Controllers

Dual LAN with Intel i210 Gigabit Ethernet Controller

M.2

M.2 Interface: 1 PCIe 3.0 x4Form Factor: 2280Key: M-Key

Chipset

Intel C252

DIMM Sizes

16GB, 32GB, 4GB, 8GB

BIOS Type

256MB UEFI

LAN

2 RJ45 Gigabit Ethernet LAN ports

Video Output

1 VGA D-Sub Connector port(s)

DOM

DOM

Dimension

6.7" x 6.7" (17.02cm x 17.02cm)

PCIe

1 PCIe 4.0 x16

USB

4 USB 2.0 port(s) (2 via header; 2 rear)4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)

Form Factor

Mini-ITX

Memory Type

3200/2933/2666 MT/s SDRAM

Application

Server

IPMI

ASPEED AST2600 BMC

Memory Voltage

1.2V

CPU

10th Generation Intel Pentium Processor, CPU TDP supports Up to 95W TDP, Intel Xeon E-2300 ProcessorSingle Socket Socket H5 (LGA-1200) supported

Hardware

Trusted Platform Module (TPM) 2.0

Serial Port

1 COM Port(s) (1 rear)

SATA

6 SATA3 (6Gbps) port(s)

Memory Capacity

2 DIMM slotsUp to 64GB Unbuffered ECC UDIMM, DDR4-3200MT/s

Error Detection

Corrects single-bit errors

Core

Up to 8 cores
