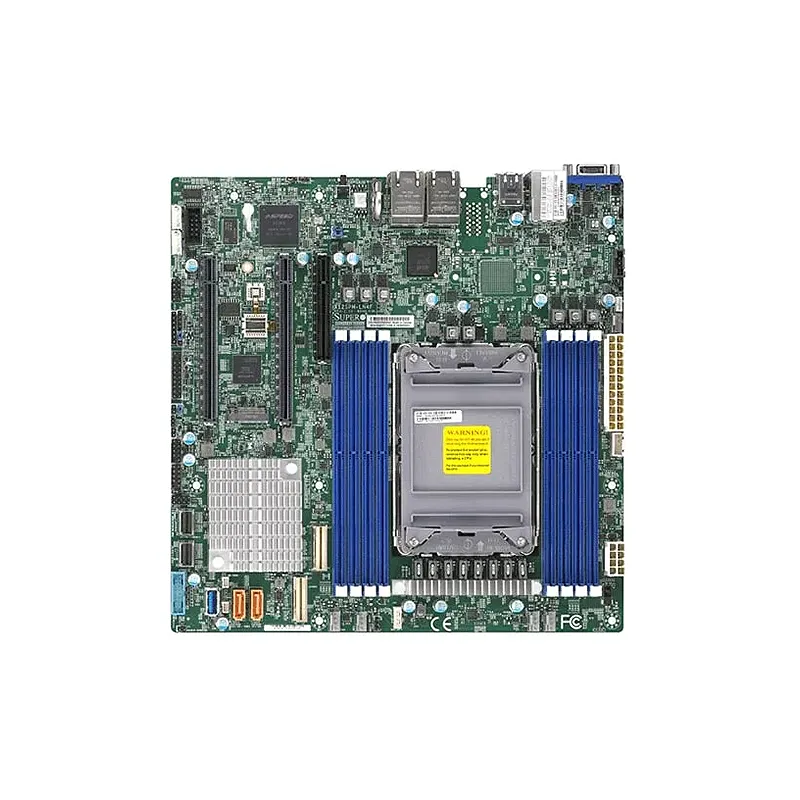

Supermicro MBD-X12SPM-LN4F - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 6.0RTC (Real Time Clock) WakeupSMBIOS 3.0 or later

Graphics

1 ASPEED AST2600 BMC port(s)

TPM

1 TPM Header

Network Controllers

Quad LAN with 1GbE with Intel I350-AM4

Product SKUs

Physical Stats

Processor

CPU
3rd Gen Intel Xeon Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core
Up to 40 cores

System Memory

Memory Capacity
8 DIMM slots
Up to 2TB Intel Optane Persistent Memory 200 Series
Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s
Memory Type
ECC , DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
LRDIMM 3DS: 128GB, 256GB
LRDIMM: 64GB, 128GB
RDIMM: 8GB, 16GB, 32GB, 64GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors

On-Board Devices

Input / Output

SATA
10 SATA3 (6Gbps) port(s)
LAN
4 RJ45 Gigabit Ethernet LAN ports
USB
6 USB 2.0 port(s) (4 via header; 2 rear)
5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output
1 VGA port(s)
Serial Port
1 COM Port(s) (1 header)
DOM
2 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header

Expansion Slots

System BIOS

Management

Power Configurations
Power-on mode for AC power recovery, ACPI Power Management

Brand	Supermicro
BIOS Features	ACPI 6.0RTC (Real Time Clock) WakeupSMBIOS 3.0 or later
Graphics	1 ASPEED AST2600 BMC port(s)
TPM	1 TPM Header
Network Controllers	Quad LAN with 1GbE with Intel I350-AM4
M.2	22110Key: M-Key, M.2 Interface: 1 SATA/PCIe 3.0 x4Form Factor: 2280
Chipset	Intel C621A
DIMM Sizes	128GBRDIMM: 8GB, 16GB, 256GBLRDIMM: 64GB, 32GB, 64GB, LRDIMM 3DS: 128GB
BIOS Type	AMI UEFI
LAN	4 RJ45 Gigabit Ethernet LAN ports
Video Output	1 VGA port(s)
DOM	DOM
Dimension	9.6" x 9.6" (24.38cm x 24.38cm)
PCIe	1 PCIe 4.0 x8, 2 PCIe 4.0 x16, 2 PCIe 4.0 x8 SlimSAS connector
USB	6 USB 2.0 port(s) (4 via header; 2 rear)5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Form Factor	Micro-ATX
Memory Type	DDR4 LRDIMM (3DS), ECC, RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.2V
CPU	3rd Gen Intel Xeon Scalable processorsSingle Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Serial Port	1 COM Port(s) (1 header)
SATA	10 SATA3 (6Gbps) port(s)
Memory Capacity	8 DIMM slotsUp to 2TB Intel Optane Persistent Memory 200 SeriesUp to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM
Error Detection	Corrects single-bit errors
Core	Up to 40 cores
