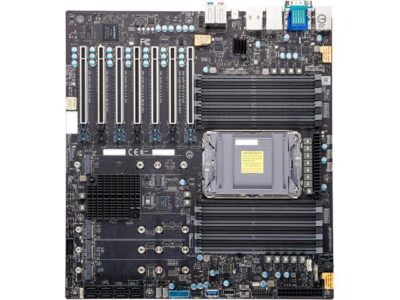

Supermicro MBD-X12SPA-TF - HYPERTEK SYSTEMS B.V

Warranty

1 Year

Products Status

New

Brand

Supermicro

USB Ports

4 USB 2.0 port(s) (2 rear; 2 via header) 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear) 1 USB 3.2 Gen2x2 port(s) (1 rear type C) 2 USB 3.2 Gen2 port(s) (1 type A; 1 type C)

CPU Socket Type

Intel LGA4189

Product SKUs

MBD-X12SPA-TF

Physical Stats

Form Factor
E-ATX
Dimension
13″ x 12″ (33.02cm x 30.48cm)

Processor

CPU
3rd Gen Intel Xeon Scalable processors, Intel Xeon W-3300 Processor
Single Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
Core
Up to 40 cores

System Memory

Memory Capacity
16 DIMM slots
Up to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
Up to 4TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-3200MT/s
Memory Type
ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
1.2V

On-Board Devices

Chipset
Intel C621A
SATA
Intel C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2500
Audio
ALC 888S HD Audio
Graphics
1 ASPEED AST2500 BMC port(s)
VGA connector is dedicated for IPMI.
Network Controllers
Single LAN with Intel Ethernet Controller I210-AT
Single LAN with Realtek RTL8211F PHY (dedicated IPMI)
Single LAN with Marvell AQC113

Input / Output

LAN
1 RJ45 Dedicated IPMI LAN port
1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 10GBase-T ports
USB
4 USB 2.0 port(s) (2 via header; 2 rear)
6 USB 3.2 Gen1 port(s) (2 via header; 4 rear)
1 USB 3.2 Gen2x2 port(s) (1 rear type C)
2 USB 3.2 Gen2 port(s) (1 type A; 1 type C)
Video Output
1 VGA port(s)
Serial Port
2 COM Port(s) (1 header; 1 rear)
DOM
1 SATA DOM power connector (Disk on Module) port
TPM
1 TPM Header

Expansion Slots

PCIe
4 PCIe 4.0 x16,
3 PCIe 4.0 x8 (in x16 slot), PCIe x16 Slot#1 shares with M.2, Slot#2 shares with Slot#3 (NA/16,8/8), Slot#4 shares with Slot#5 (NA/16,8/8), Slot#6 shares with Slot#7 (NA/16,8/8)
M.2
M.2 Interface: 4 PCIe 4.0 x4
Form Factor: 2260/2280/22110
Key: M-Key

System BIOS

BIOS Type
256MB SPI Flash with AMI BIOS
BIOS Features
ACPI 3.0 / 4.0
SMBIOS 2.7
PCI FW 3.0
RTC (Real Time Clock) Wakeup

Management

System Management Software
SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection, Main Switch Override Mechanism

Warranty	1 Year
Products Status	New
Brand	Supermicro
USB Ports	4 USB 2.0 port(s) (2 rear; 2 via header) 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear) 1 USB 3.2 Gen2x2 port(s) (1 rear type C) 2 USB 3.2 Gen2 port(s) (1 type A; 1 type C)
CPU Socket Type	Intel LGA4189
Form Factor	E-ATX
Chipset	Intel C621A Series
Internal I/O Connectors	4 PCI-E 4.0 x16, 3 PCI-E 4.0 x8 (in x16 slot) M.2 Interface: 4 PCI-E 4.0 x4 M.2 Form Factor: 2260/2280/22110 M.2 Key: M-Key M.2 support to RAID 0,1, 5, 10, VROC key is required for RAID.
Back I/O Ports	1 VGA port, VGA connector is dedicated for IPMI.
Product Name	Supermicro MBD-X12SPA-TF
Packaging Details	Bulk
Size	33.02cmx30.48cm
Memory	Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 4TB Intel Optane Persistent Memory, DDR4-3200MHz, in 16 DIMM slots
CPU Brand	Intel
Application	Server
