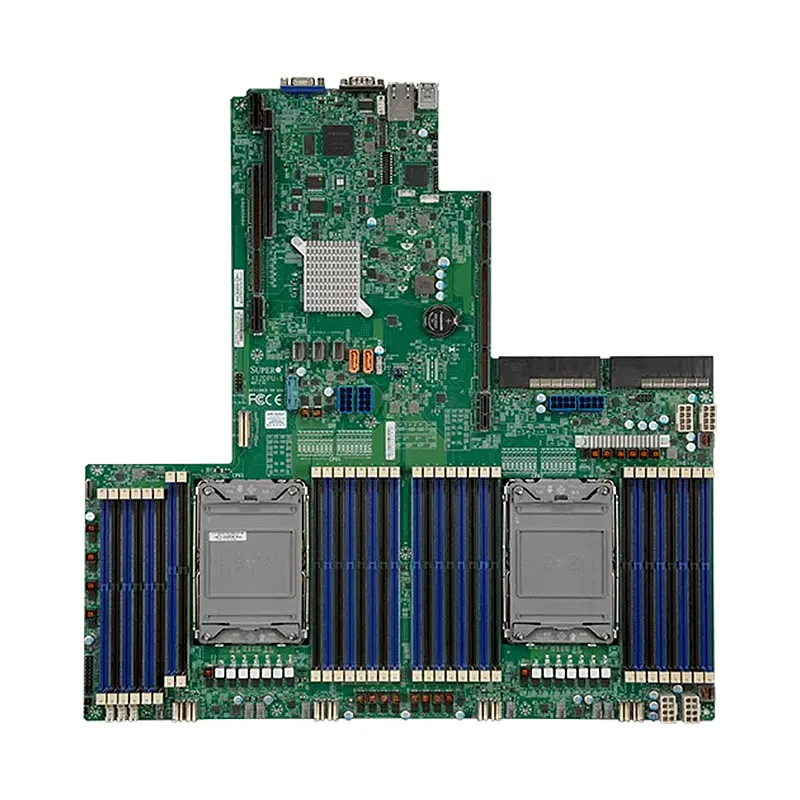

Supermicro MBD-X12DPU-6 - HYPERTEK SYSTEMS B.V

Brand

Supermicro

Graphics

1 ASPEED AST2600 BMC port(s)

TPM

1 TPM Header

Network Controllers

Networking options provided via Ultra Riser

Chipset

Intel C621A

Product SKUs

Physical Stats

Processor

CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core
Up to 40 cores

System Memory

Memory Capacity
32 DIMM slots
Up to 8TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
Up to 8TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 8TB 3DS ECC RDIMM, DDR4-3200MT/s
Memory Type
3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
16GB, 32GB, 64GB, 128GB, 256GB
LRDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

PCIe
1 PCIe 4.0 x16 Right Riser Slot,
1 PCIe 4.0 x32 Right Riser Slot,
1 PCIe 4.0 x40 Ultra Riser Slot

System BIOS

Brand	Supermicro
Graphics	1 ASPEED AST2600 BMC port(s)
TPM	1 TPM Header
Network Controllers	Networking options provided via Ultra Riser
Chipset	Intel C621A
DIMM Sizes	128GB, 16GB, 256GB, 256GBLRDIMM: 16GB, 256GBRDIMM: 16GB, 32GB, 64GB
BIOS Type	AMI UEFI
Video Output	1 VGA D-Sub Connector port(s)
Dimension	17" x 16.8" (43.18cm x 42.67cm)
PCIe	1 PCIe 4.0 x16 Right Riser Slot, 1 PCIe 4.0 x32 Right Riser Slot, 1 PCIe 4.0 x40 Ultra Riser Slot
USB	4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Form Factor	Proprietary
Memory Type	3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.2V
CPU	3 UPI up to 11.2 GT/s, 3rd Gen Intel Xeon Scalable processorsDual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
Serial Port	1 COM Port(s) (1 rear)
SATA	1, 10, 5, Intel C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity	32 DIMM slotsUp to 8TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s, DDR4-3200MT/s; Up to 8TB 3DS ECC RDIMM, DDR4-3200MT/sUp to 8TB 3DS ECC LRDIMM
Error Detection	Detects double-bit errors (using ECC memory)
Core	Up to 40 cores
