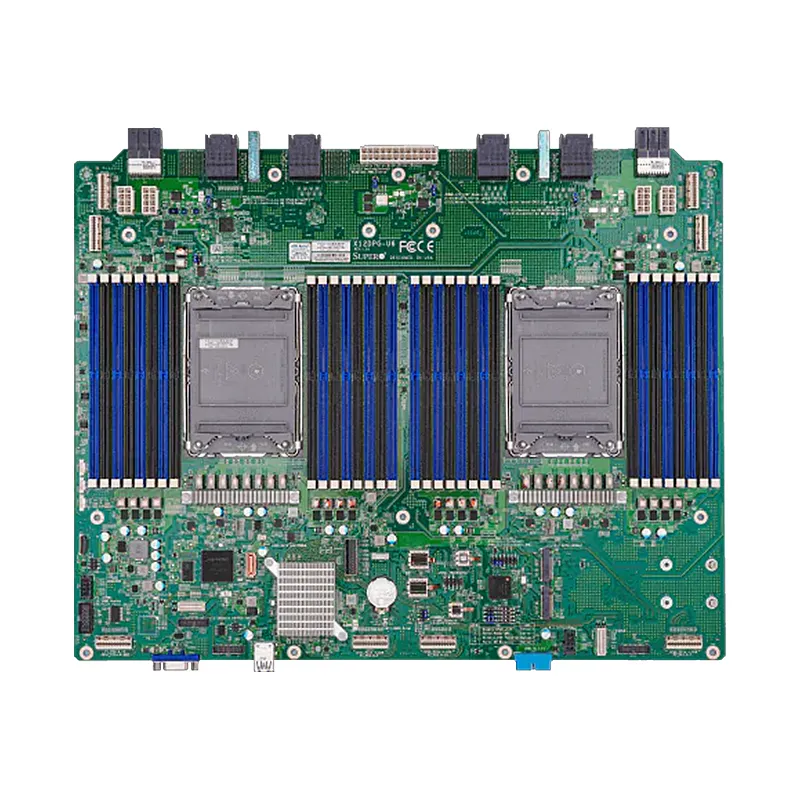

Supermicro MBD-X12DPG-U6 - HYPERTEK SYSTEMS B.V

Brand

Supermicro

Graphics

1 ASPEED AST2600 BMC port(s)

TPM

1 TPM Header

M.2

M.2 Interface: 2 PCIe 4.0 x4, RAID 0 & 1Form Factor: 2280/22110Key: M-Key

Chipset

Intel C621A

Product SKUs

Physical Stats

Processor

CPU
3rd Gen Intel Xeon Scalable processors
Single Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s

System Memory

Memory Capacity
32 DIMM slots
Up to 8GB Unbuffered Intel Optane Persistent Memory 200 Series, DDR4-2933MT/s
Up to 8TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 8TB 3DS ECC RDIMM, DDR4-3200MT/s
Memory Type
3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
16GB, 32GB, 64GB, 128GB, 256GB
LRDIMM: 128GB, 256GB
RDIMM: 64GB, 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

PCIe
8 PCIe 4.0 x16
M.2
M.2 Interface: 2 PCIe 4.0 x4, RAID 0 & 1
Form Factor: 2280/22110
Key: M-Key

System BIOS

Brand	Supermicro
Graphics	1 ASPEED AST2600 BMC port(s)
TPM	1 TPM Header
M.2	M.2 Interface: 2 PCIe 4.0 x4, RAID 0 & 1Form Factor: 2280/22110Key: M-Key
Chipset	Intel C621A
DIMM Sizes	128GB, 16GB, 256GBLRDIMM: 128GB, 256GBRDIMM: 64GB, 32GB, 64GB
BIOS Type	64MB AMI UEFI
Video Output	1 VGA D-Sub Connector port(s)
DOM	DOM
Dimension	13.98" x 11.81" (35.51cm x 30cm)
PCIe	8 PCIe 4.0 x16
USB	3 USB 3.2 Gen1 port(s) (2 rear; 1 via header)
Form Factor	Proprietary
Memory Type	3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.2V
CPU	3 UPI up to 11.2 GT/s, 3rd Gen Intel Xeon Scalable processorsSingle Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
Hardware	Trusted Platform Module (TPM) 2.0
SATA	1, 10, 5, Intel C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity	32 DIMM slotsUp to 8GB Unbuffered Intel Optane Persistent Memory 200 Series, DDR4-2933MT/sUp to 8TB 3DS ECC LRDIMM, DDR4-3200MT/s, DDR4-3200MT/s; Up to 8TB 3DS ECC RDIMM
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
