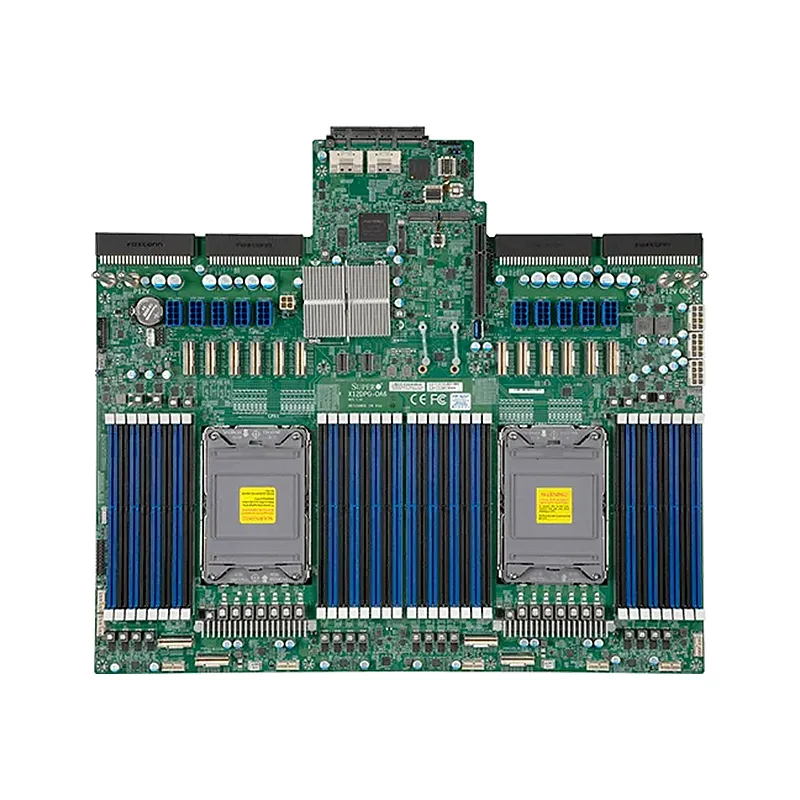

Supermicro MBD-X12DPG-OA6-GD2 - HYPERTEK SYSTEMS B.V

Brand

Supermicro

M.2

M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2280/22110

Chipset

Intel C621A

BIOS Type

AMI UEFI

Dimension

15" x 17" (38.1cm x 43.18cm)

Product SKUs

Physical Stats

Processor

CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core
Up to 40 cores

System Memory

Memory Capacity
32 DIMM slots
Up to 8GB Unbuffered Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
Up to 8TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 8TB 3DS ECC RDIMM, DDR4-3200MT/s
Memory Type
ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
Memory Voltage
1.2V

On-Board Devices

Input / Output

Expansion Slots

System BIOS

Management

System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
ACPI Power Management, Power supply monitoring

Brand	Supermicro
M.2	M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2280/22110
Chipset	Intel C621A
BIOS Type	AMI UEFI
Dimension	15" x 17" (38.1cm x 43.18cm)
PCIe	1 PCIe 4.0 x16 AIOM, 16 PCIe 4.0 x8
USB	4 USB 3.2 Gen2 port(s) (2 via header; 2 rear)
Form Factor	Proprietary
Memory Type	ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
Memory Voltage	1.2V
CPU	3 UPI up to 11.2 GT/s, 3rd Gen Intel Xeon Scalable processorsDual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Memory Capacity	32 DIMM slotsUp to 8GB Unbuffered Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s, DDR4-3200MT/s; Up to 8TB 3DS ECC RDIMM, DDR4-3200MT/sUp to 8TB 3DS ECC LRDIMM
Core	Up to 40 cores
