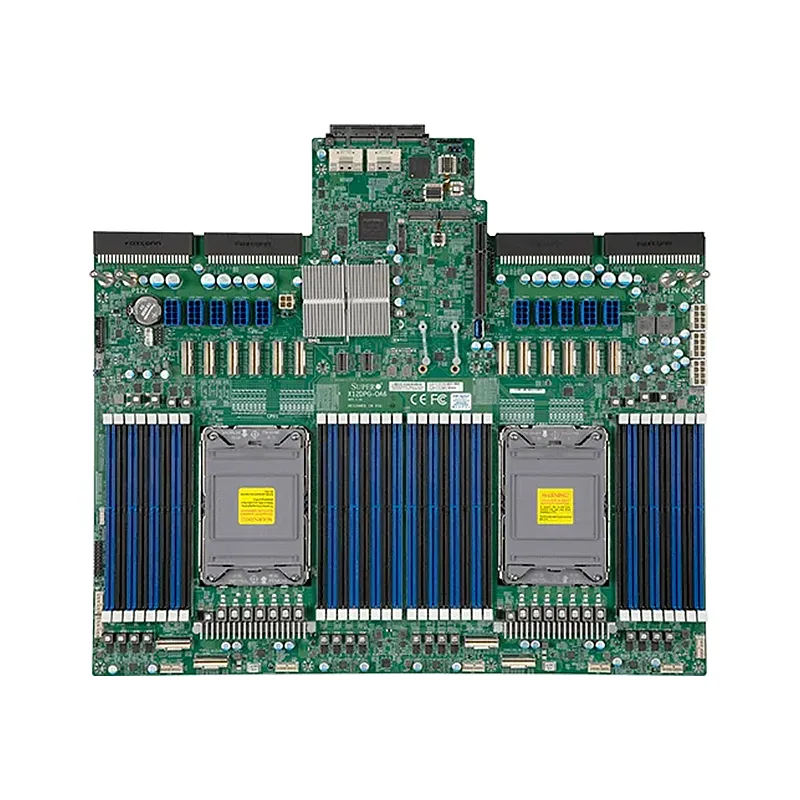

Supermicro MBD-X12DPG-OA6 - HYPERTEK SYSTEMS B.V

Brand

Supermicro

Network Controllers

Dual LAN with 1GbE LAN via Intel i350-AM2

M.2

M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2280/22110

Chipset

Intel C621A

BIOS Type

AMI UEFI

Product SKUs

Physical Stats

Processor

CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core
Up to 40 cores

System Memory

Memory Capacity
32 DIMM slots
Up to 8GB Unbuffered Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
Up to 8TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 8TB 3DS ECC RDIMM, DDR4-3200MT/s
Memory Type
ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
Memory Voltage
1.2V

On-Board Devices

Input / Output

Expansion Slots

System BIOS

Management

System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
ACPI Power Management, Power supply monitoring

Brand	Supermicro
Network Controllers	Dual LAN with 1GbE LAN via Intel i350-AM2
M.2	M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2280/22110
Chipset	Intel C621A
BIOS Type	AMI UEFI
Video Output	1 VGA port(s)
Dimension	15" x 17" (38.1cm x 43.18cm)
PCIe	1 PCIe 4.0 x16 AIOM, 16 PCIe 4.0 x8
USB	5 USB 3.2 Gen2 port(s) (2 via header; 2 rear; 1 type A)
Form Factor	Proprietary
Memory Type	ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.2V
CPU	3 UPI up to 11.2 GT/s, 3rd Gen Intel Xeon Scalable processorsDual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
Hardware	Trusted Platform Module (TPM) 2.0
Serial Port	1 COM Port(s) (1 header)
SATA	8 SATA3 (6Gbps) port(s)
Memory Capacity	32 DIMM slotsUp to 8GB Unbuffered Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s, DDR4-3200MT/s; Up to 8TB 3DS ECC RDIMM, DDR4-3200MT/sUp to 8TB 3DS ECC LRDIMM
Core	Up to 40 cores
