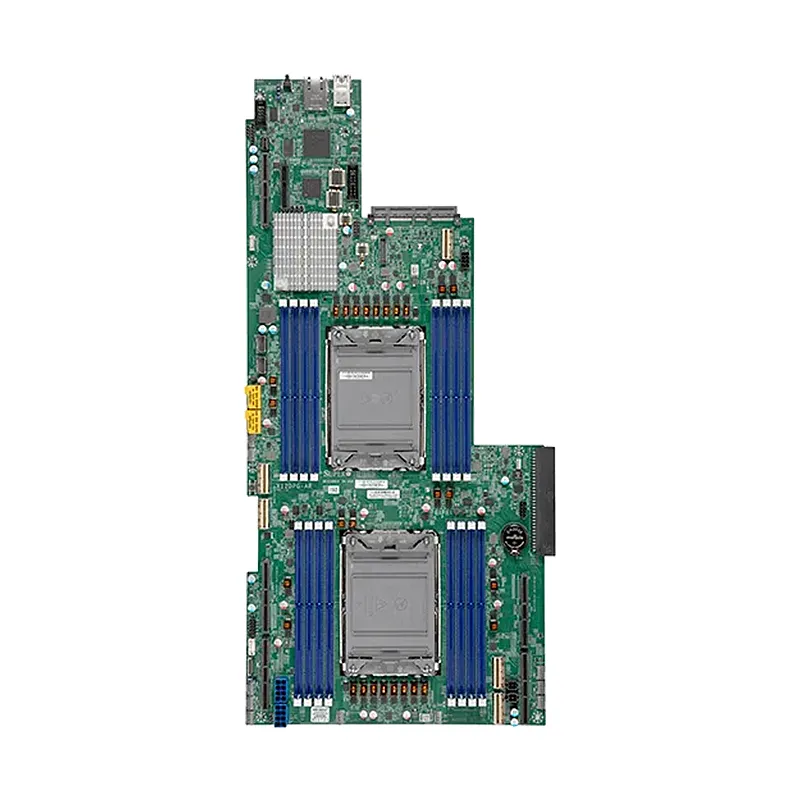

Supermicro MBD-X12DPG-AR - HYPERTEK SYSTEMS B.V

Brand

Supermicro

TPM

1 TPM Header

M.2

M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key

Chipset

Intel C621A

DIMM Sizes

128GB, 256GB, 256GBRDIMM: 16GB, 32GB, 64GB, LRDIMM: 16GB

Product SKUs

Physical Stats

Processor

CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core
Up to 40 cores

System Memory

Memory Capacity
16 DIMM slots
Up to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s; Up to 6TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
Up to 4TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-3200MT/s
Memory Type
3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
LRDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

PCIe
1 PCIe 4.0 x8 AIOM,
2 PCIe 4.0 x8,
6 PCIe 4.0 x16
M.2
M.2 Interface: 2 PCIe 3.0 x4
Form Factor: 2280/22110
Key: M-Key
M.2 supported through M.2 carrier board

System BIOS

Management

System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
ACPI / ACPM Power Management

Brand	Supermicro
TPM	1 TPM Header
M.2	M.2 Interface: 2 PCIe 3.0 x4Form Factor: 2280/22110Key: M-Key
Chipset	Intel C621A
DIMM Sizes	128GB, 256GB, 256GBRDIMM: 16GB, 32GB, 64GB, LRDIMM: 16GB
BIOS Type	AMI UEFI
Video Output	1 VGA port(s)
Dimension	9.15" x 19.8" (23.24cm x 50.29cm)
PCIe	1 PCIe 4.0 x8 AIOM, 2 PCIe 4.0 x8, 6 PCIe 4.0 x16
USB	2 USB 3.2 Gen2 port(s) (2 rear)
Form Factor	Proprietary
Memory Type	3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.2V
CPU	3 UPI up to 11.2 GT/s, 3rd Gen Intel Xeon Scalable processorsDual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
Hardware	Trusted Platform Module (TPM) 2.0
Serial Port	1 COM Port(s) (1 rear)
SATA	1, 10, 5, Intel C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity	16 DIMM slotsUp to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s, DDR4-3200MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-3200MT/s; Up to 6TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/sUp to 4TB 3DS ECC LRDIMM
Error Detection	Detects double-bit errors (using ECC memory)
Core	Up to 40 cores
