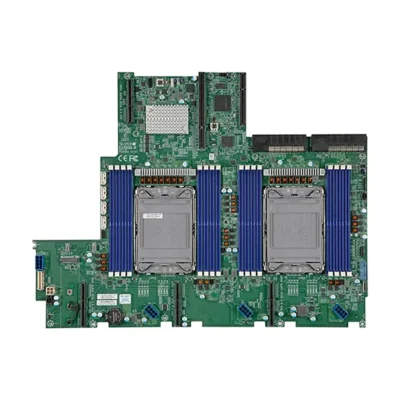

Supermicro MBD-X12DGQ-R - HYPERTEK SYSTEMS B.V

Brand

Supermicro

Graphics

1 ASPEED AST2600 BMC port(s)

Network Controllers

Dual LAN with 10Gbase-T, via the AOM-PIO-I2XT installed on JSLOT6

M.2

M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2242/2260/2280/22110Key: M-Key

Chipset

Intel C621A

Product SKUs

Physical Stats

Processor

CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core
Up to 40 cores

System Memory

Memory Capacity
16 DIMM slots
Up to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
Up to 4TB ECC LRDIMM, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/s
Memory Type
3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM
DIMM Sizes
16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
Intel C621A
SATA
Intel C621A controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Graphics
1 ASPEED AST2600 BMC port(s)
Network Controllers
Dual LAN with 10Gbase-T, via the AOM-PIO-I2XT installed on JSLOT6

Input / Output

Expansion Slots

PCIe
1 PCIe 4.0 x32 Right Riser Slot,
4 PCIe 4.0 x16 (in x16 slot),
1 PCIe 4.0 x8 SlimSAS
M.2
M.2 Interface: 1 PCIe 4.0 x4
Form Factor: 2242/2260/2280/22110
Key: M-Key

System BIOS

Brand	Supermicro
Graphics	1 ASPEED AST2600 BMC port(s)
Network Controllers	Dual LAN with 10Gbase-T, via the AOM-PIO-I2XT installed on JSLOT6
M.2	M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2242/2260/2280/22110Key: M-Key
Chipset	Intel C621A
DIMM Sizes	128GB, 16GB, 256GB, 32GB, 64GB
BIOS Type	AMI UEFI
Video Output	1 VGA D-Sub Connector port(s)
Dimension	16.9" x 12.9" (42.93cm x 32.77cm)
PCIe	1 PCIe 4.0 x32 Right Riser Slot, 1 PCIe 4.0 x8 SlimSAS, 4 PCIe 4.0 x16 (in x16 slot)
USB	4 USB 3.2 Gen2 port(s) (2 Others front panel; 2 rear type A)
Form Factor	Proprietary
Memory Type	3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.2V
CPU	3 UPI up to 11.2 GT/s, 3rd Gen Intel Xeon Scalable processorsDual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
Hardware	Trusted Platform Module (TPM) 2.0
Serial Port	1 COM Port(s) (1 header)
SATA	1, 10, 5, Intel C621A controller for 4 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity	16 DIMM slotsUp to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/sUp to 4TB ECC LRDIMM
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 40 cores
