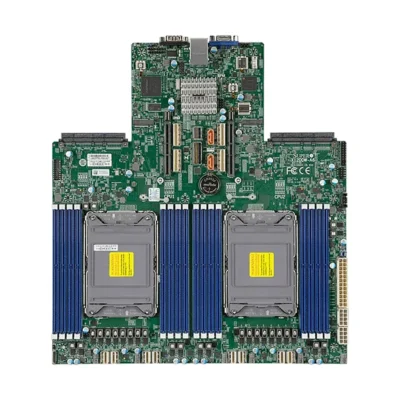

Supermicro MBD-X12DDW-A6 - HYPERTEK SYSTEMS B.V

Brand

Supermicro

Graphics

1 ASPEED AST2600 BMC port(s)

TPM

1 TPM Header

Network Controllers

AIOM for LAN

M.2

M.2 Interface: 2 PCIe 3.0 x2Form Factor: 2260/2280Key: M-Key

Product SKUs

Physical Stats

Processor

CPU
3rd Gen Intel Xeon Scalable processors
Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core
Up to 40 cores

System Memory

Memory Capacity
16 DIMM slots
Up to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s
Up to 4TB ECC LRDIMM, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/s
Memory Type
3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM
DIMM Sizes
16GB, 32GB, 64GB, 128GB, 256GB
LRDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

PCIe
1 PCIe 4.0 x16 Left Riser Slot,
1 PCIe 4.0 x16 Right Riser Slot,
2 PCIe 4.0 x16 Center Right Hand Slot,
2 PCIe 4.0 x16, AIOM slots Superset of OCP 3.0 Expansion
M.2
M.2 Interface: 2 PCIe 3.0 x2
Form Factor: 2260/2280
Key: M-Key

System BIOS

Management

System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
ATX Power connector

Brand	Supermicro
Graphics	1 ASPEED AST2600 BMC port(s)
TPM	1 TPM Header
Network Controllers	AIOM for LAN
M.2	M.2 Interface: 2 PCIe 3.0 x2Form Factor: 2260/2280Key: M-Key
Chipset	Intel C621A
DIMM Sizes	128GB, 16GB, 256GB, 256GBLRDIMM: 16GB, 256GBRDIMM: 16GB, 32GB, 64GB
BIOS Type	AMI UEFI
Video Output	1 VGA D-Sub Connector port(s)
Dimension	12.288" x 13.404" (31.21cm x 34.05cm)
PCIe	1 PCIe 4.0 x16 Left Riser Slot, 1 PCIe 4.0 x16 Right Riser Slot, 2 PCIe 4.0 x16, 2 PCIe 4.0 x16 Center Right Hand Slot, AIOM slots Superset of OCP 3.0 Expansion
USB	4 USB 3.1 Gen1 port(s) (2 via header; 2 rear)
Form Factor	Proprietary WIO
Memory Type	3200/2933/2666 MT/s ECC DDR4 LRDIMM, RDIMM
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.2V
CPU	3 UPI up to 11.2 GT/s, 3rd Gen Intel Xeon Scalable processorsDual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
Serial Port	1 COM Port(s) (1 header)
SATA	1, 10, 5, Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity	16 DIMM slotsUp to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/sUp to 4TB ECC LRDIMM
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 40 cores
