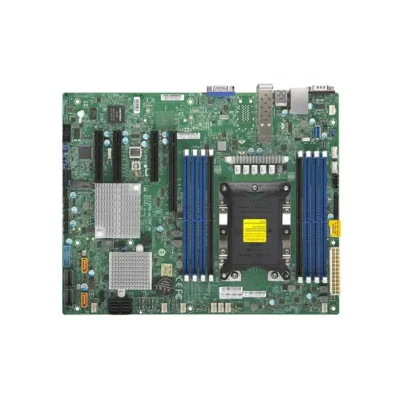

Supermicro MBD-X11SPH-nCTPF - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 6.0RTC (Real Time Clock) WakeupSMBIOS 3.0 or later

Graphics

1 ASPEED AST2500 BMC port(s)

TPM

1 TPM Header

Network Controllers

Dual LAN with 10G SFP+ with Intel X722 + Inphi CS4227

Product SKUs

Physical Stats

Processor

CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Single Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP
Core
Up to 28 cores

System Memory

Memory Capacity
8 DIMM slots
Up to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-2933MT/s
Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
LRDIMM: 32GB, 64GB, 128GB
RDIMM: 8GB, 16GB, 32GB, 64GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors

On-Board Devices

Chipset
Intel C622
SATA
Broadcom 3008 SW controller for 8 SAS3 (12 Gbps) ports; RAID 0,1,10
Intel C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2500
Graphics
1 ASPEED AST2500 BMC port(s)
Network Controllers
Dual LAN with 10G SFP+ with Intel X722 + Inphi CS4227

Input / Output

SATA
10 SATA3 (6Gbps) port(s)
SAS
8 SAS port(s)
LAN
2 10G SFP+ LAN ports
USB
8 USB 2.0 port(s) (2 rear; 6 via header)
2 USB 3.0 port(s) (2 rear)
3 USB 3 port(s) (2 via header; 1 type A)
Video Output
1 VGA port(s)
Serial Port
2 COM Port(s) (1 header; 1 rear)
DOM
2 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header

Expansion Slots

PCIe
1 PCIe 3.0 x16 (x16 or x8 ),
1 PCIe 3.0 x8 (x0 or x8 ),
1 PCIe 3.0 x8,
1 PCIe 3.0 x4 (in x8 slot)
M.2
M.2 Interface: PCIe 3.0 x4; SATA
Form Factor: 2280
Key: M-Key

System BIOS

Management

Power Configurations
Power-on mode for AC power recovery, ACPI Power Management

Brand	Supermicro
BIOS Features	ACPI 6.0RTC (Real Time Clock) WakeupSMBIOS 3.0 or later
Graphics	1 ASPEED AST2500 BMC port(s)
TPM	1 TPM Header
Network Controllers	Dual LAN with 10G SFP+ with Intel X722 + Inphi CS4227
M.2	M.2 Interface: PCIe 3.0 x4; SATAForm Factor: 2280Key: M-Key
Chipset	Intel C622
DIMM Sizes	128GBRDIMM: 8GB, 16GB, 32GB, 64GB, LRDIMM: 32GB
BIOS Type	AMI UEFI
LAN	2 10G SFP+ LAN ports
Video Output	1 VGA port(s)
DOM	DOM
Dimension	12" x 9.6" (30.48cm x 24.38cm)
PCIe	1 PCIe 3.0 x16 (x16 or x8 ), 1 PCIe 3.0 x4 (in x8 slot), 1 PCIe 3.0 x8, 1 PCIe 3.0 x8 (x0 or x8 )
USB	8 USB 2.0 port(s) (2 rear; 6 via header)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A)
Form Factor	ATX
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2500
Memory Voltage	1.2V
CPU	2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsSingle Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP
SAS	8 SAS port(s)
Serial Port	2 COM Port(s) (1 header; 1 rear)
SATA	10 SATA3 (6Gbps) port(s)
Memory Capacity	8 DIMM slotsUp to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM
Error Detection	Corrects single-bit errors
Core	Up to 28 cores
