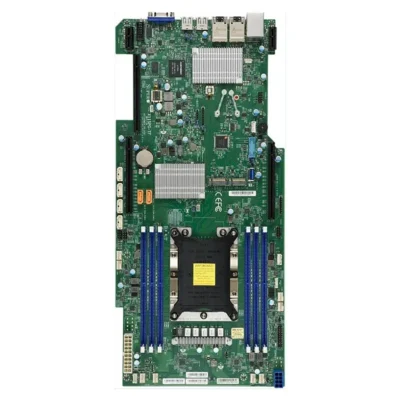

Supermicro MBD-X11SPG-TF - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 6.0RTC (Real Time Clock) WakeupSMBIOS 3.0 or later

Graphics

1 ASPEED AST2500 BMC port(s)

TPM

1 TPM Header

Network Controllers

Dual LAN with 10GBase-T with Intel X550

Product SKUs

Physical Stats

Processor

CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP
Core
Up to 28 cores

System Memory

Memory Capacity
6 DIMM slots
Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MT/s
Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
LRDIMM: 32GB, 64GB, 128GB
RDIMM: 8GB, 16GB, 32GB, 64GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors

On-Board Devices

Input / Output

SATA
6 SATA3 (6Gbps) port(s)
LAN
2 RJ45 10GBase-T ports
USB
4 USB 2.0 port(s) (2 via header; 2 rear)
2 USB 3.0 port(s) (2 rear)
3 USB 3 port(s) (2 via header; 1 type A)
Video Output
1 VGA port(s)
Serial Port
1 COM Port(s) (1 header)
DOM
2 SATA DOM (Disk on Module) power connector support
TPM
1 TPM Header

Expansion Slots

PCIe
1 PCIe 3.0 x16 Center Right Hand Slot,
1 PCIe 3.0 x16 Left Riser Slot,
1 PCIe 3.0 x16 Right Riser Slot
M.2
M.2 Interface: PCIe 3.0 x4
Form Factor: 2280
Key: M-Key

System BIOS

Management

Power Configurations
Power-on mode for AC power recovery, ACPI Power Management

Brand	Supermicro
BIOS Features	ACPI 6.0RTC (Real Time Clock) WakeupSMBIOS 3.0 or later
Graphics	1 ASPEED AST2500 BMC port(s)
TPM	1 TPM Header
Network Controllers	Dual LAN with 10GBase-T with Intel X550
M.2	M.2 Interface: PCIe 3.0 x4Form Factor: 2280Key: M-Key
Chipset	Intel C621
DIMM Sizes	128GBRDIMM: 8GB, 16GB, 32GB, 64GB, LRDIMM: 32GB
BIOS Type	AMI UEFI
LAN	2 RJ45 10GBase-T ports
Video Output	1 VGA port(s)
DOM	DOM
Dimension	7.71" x 16.64" (19.58cm x 42.27cm)
PCIe	1 PCIe 3.0 x16 Center Right Hand Slot, 1 PCIe 3.0 x16 Left Riser Slot, 1 PCIe 3.0 x16 Right Riser Slot
USB	4 USB 2.0 port(s) (2 via header; 2 rear)2 USB 3.0 port(s) (2 rear)3 USB 3 port(s) (2 via header; 1 type A)
Form Factor	Proprietary
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2500
Memory Voltage	1.2V
CPU	2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsSingle Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP
Serial Port	1 COM Port(s) (1 header)
SATA	6 SATA3 (6Gbps) port(s)
Memory Capacity	6 DIMM slotsUp to 1.5TB 3DS ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 1.5TB 3DS ECC RDIMM
Error Detection	Corrects single-bit errors
Core	Up to 28 cores
