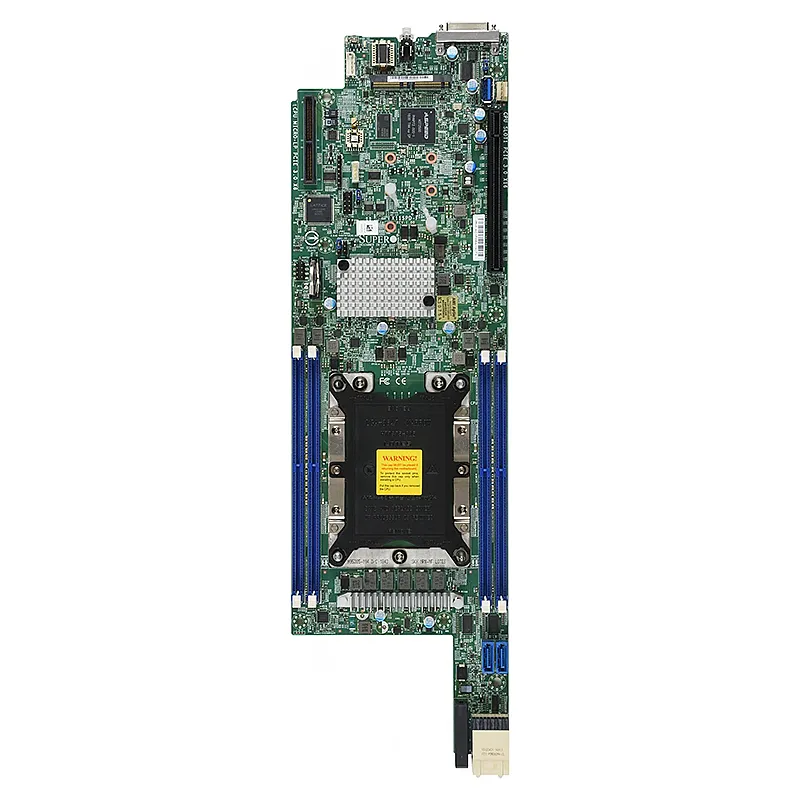

Supermicro MBD-X11SPD-F - HYPERTEK SYSTEMS B.V

Brand

Supermicro

Graphics

1 ASPEED AST2500 BMC port(s)Via KVM Connector

TPM

1 TPM Header

Network Controllers

Single LAN with Realtek RTL8211E PHY (dedicated IPMI), via Backplane

M.2

M.2 Interface: 2 SATA/PCIe 3.0 x4Form Factor: 2280Key: M-Key

Product SKUs

Physical Stats

Processor

CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP
Core
Up to 24 cores

System Memory

Memory Capacity
4 DIMM slots
Up to 512GB ECC LRDIMM, DDR4-2933MT/s; Up to 1TB 3DS ECC RDIMM, DDR4-2933MT/s
Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (3DS)
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB
LRDIMM: 32GB, 64GB, 128GB
RDIMM: 8GB, 16GB, 32GB, 64GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
Intel C621
SATA
Intel C621 controller for 2 SATA3 (6 Gbps) ports
IPMI
ASPEED AST2500
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
1 ASPEED AST2500 BMC port(s)
Via KVM Connector
Network Controllers
Single LAN with Realtek RTL8211E PHY (dedicated IPMI), via Backplane

Input / Output

SATA
2 SATA3 (6Gbps) port(s)
LAN
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 2.0 port(s) (2 rear)
USB 2.0 via KVM Connector
Video Output
1 VGA port(s)
Serial Port
1 fast UART 16550 Serial
1 COM Port(s) (1 rear), Via KVM Connector
TPM
1 TPM Header
Others
1 KVM Connector for VGA
1 USB 0 and COM Ports

Expansion Slots

System BIOS

Management

System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, SUM
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss

Brand	Supermicro
Graphics	1 ASPEED AST2500 BMC port(s)Via KVM Connector
TPM	1 TPM Header
Network Controllers	Single LAN with Realtek RTL8211E PHY (dedicated IPMI), via Backplane
M.2	M.2 Interface: 2 SATA/PCIe 3.0 x4Form Factor: 2280Key: M-Key
Chipset	Intel C621
DIMM Sizes	128GBLRDIMM: 32GB, 128GBRDIMM: 8GB, 16GB, 32GB, 64GB, 8GB
BIOS Type	256MB UEFI
LAN	1 RJ45 Dedicated IPMI LAN port
Video Output	1 VGA port(s)
Dimension	4.66" x 18.5" (11.84cm x 46.99cm)
PCIe	1 PCIe 3.0 x16, 1 PCIe 3.0 x8 (Micro Low Profile)
USB	2 USB 2.0 port(s) (2 rear)USB 2.0 via KVM Connector
Form Factor	Proprietary
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2500IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Others	1 KVM Connector for VGA1 USB 0 and COM Ports
Memory Voltage	1.2V
CPU	2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsSingle Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP
Serial Port	1 fast UART 16550 Serial1 COM Port(s) (1 rear), Via KVM Connector
SATA	2 SATA3 (6Gbps) port(s)
Memory Capacity	4 DIMM slotsUp to 512GB ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 1TB 3DS ECC RDIMM
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 24 cores
