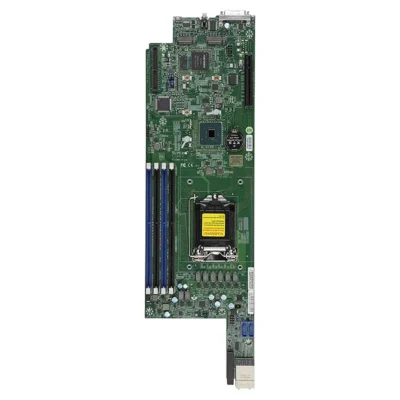

Supermicro MBD-X11SCD-F - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

ACPI 6.2SMBIOS 3.0 or laterPCI FW 3.2USB Keyboard supportPlug and Play (PnP)

Graphics

1 ASPEED AST2500 BMC port(s)Via KVM Connector

TPM

1 TPM Header

Network Controllers

Single LAN with Realtek RTL8211E PHY (dedicated IPMI), via Backplane

Product SKUs

Physical Stats

Processor

CPU
Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor, Intel Celeron, Intel Pentium, Intel Core i3 series
Single Socket Socket H4 (LGA-1151) supported, CPU TDP supports Up to 95W TDP

System Memory

Memory Capacity
4 DIMM slots
128GB Unbuffered ECC UDIMM, DDR4-2666MT/s
Memory Type
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
Intel C246
SATA
Intel C246 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2500
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
1 ASPEED AST2500 BMC port(s)
Via KVM Connector
Network Controllers
Single LAN with Realtek RTL8211E PHY (dedicated IPMI), via Backplane

Input / Output

LAN
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 2.0 port(s) (2 rear)
USB 2.0 via KVM Connector
Video Output
1 VGA port(s)
Serial Port
1 fast UART 16550 Serial
1 COM Port(s) (1 rear), Via KVM Connector
TPM
1 TPM Header
Others
1 KVM Connector for VGA
1 USB 0 and COM Ports

Expansion Slots

PCIe
1 PCIe 3.0 x8 (Micro Low Profile),
1 PCIe 3.0 x8
M.2
M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 SATA/PCIe 3.0 x4
Form Factor: 2242/2280, 2242/2280/22110
Key: M-Key, M-Key

System BIOS

BIOS Type
256MB UEFI
BIOS Features
ACPI 6.2
SMBIOS 3.0 or later
PCI FW 3.2
USB Keyboard support
Plug and Play (PnP)

Management

System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, SUM
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss

Brand	Supermicro
BIOS Features	ACPI 6.2SMBIOS 3.0 or laterPCI FW 3.2USB Keyboard supportPlug and Play (PnP)
Graphics	1 ASPEED AST2500 BMC port(s)Via KVM Connector
TPM	1 TPM Header
Network Controllers	Single LAN with Realtek RTL8211E PHY (dedicated IPMI), via Backplane
M.2	2242/2280/22110Key: M-Key, M-Key, M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 SATA/PCIe 3.0 x4Form Factor: 2242/2280
Chipset	Intel C246
DIMM Sizes	16GB, 32GB, 4GB, 8GB
BIOS Type	256MB UEFI
LAN	1 RJ45 Dedicated IPMI LAN port
Video Output	1 VGA port(s)
Dimension	4.66" x 18.5" (11.84cm x 46.99cm)
PCIe	1 PCIe 3.0 x8, 1 PCIe 3.0 x8 (Micro Low Profile)
USB	2 USB 2.0 port(s) (2 rear)USB 2.0 via KVM Connector
Form Factor	Proprietary
Application	Server
IPMI	ASPEED AST2500IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Others	1 KVM Connector for VGA1 USB 0 and COM Ports
Memory Voltage	1.2V
CPU	CPU TDP supports Up to 95W TDP, Intel Celeron, Intel Core i3 seriesSingle Socket Socket H4 (LGA-1151) supported, Intel Pentium, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor
Serial Port	1 fast UART 16550 Serial1 COM Port(s) (1 rear), Via KVM Connector
SATA	1, 10, 5, Intel C246 controller for 2 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity	4 DIMM slots128GB Unbuffered ECC UDIMM, DDR4-2666MT/s
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
