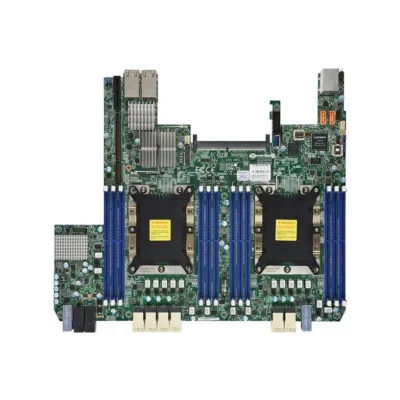

Supermicro MBD-X11DSN-TSQ - HYPERTEK SYSTEMS B.V

Brand

Supermicro

Graphics

1 ASPEED AST2500 BMC port(s)

TPM

1 TPM Header

Network Controllers

Dual LAN with 10GBase-T with Intel X557

M.2

M.2 Interface: 1 PCIe 3.0 x4Form Factor: 2242/2260/2280Key: M-Key

Product SKUs

Physical Stats

Processor

CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s

System Memory

Memory Capacity
12 DIMM slots
Up to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/s
Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Memory Type
ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
LRDIMM: 64GB, 128GB
RDIMM: 64GB, 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

System BIOS

Management

System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL

Brand	Supermicro
Graphics	1 ASPEED AST2500 BMC port(s)
TPM	1 TPM Header
Network Controllers	Dual LAN with 10GBase-T with Intel X557
M.2	M.2 Interface: 1 PCIe 3.0 x4Form Factor: 2242/2260/2280Key: M-Key
Chipset	Intel C627
DIMM Sizes	128GB, 128GBRDIMM: 64GB, LRDIMM: 64GB
BIOS Type	AMI UEFI
Video Output	1 VGA D-Sub Connector port(s)
Dimension	11.5" x 13.9" (29.21cm x 35.31cm)
PCIe	2 PCIe 3.0 x16 Left Riser Slot
USB	1 USB 3.2 Gen1 port(s) (1 type A)2 USB 3.0 port(s) (2 rear)
Form Factor	Proprietary
Memory Type	ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2500
Memory Voltage	1.2V
CPU	2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP
Serial Port	2 COM Port(s) (1 header; 1 rear)
SATA	Intel PCH SATA controller for ports
Memory Capacity	12 DIMM slotsUp to 3TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 3TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
