Supermicro MBD-X11DSC+ wholesale

* NOTE: Image may not exactly match the product

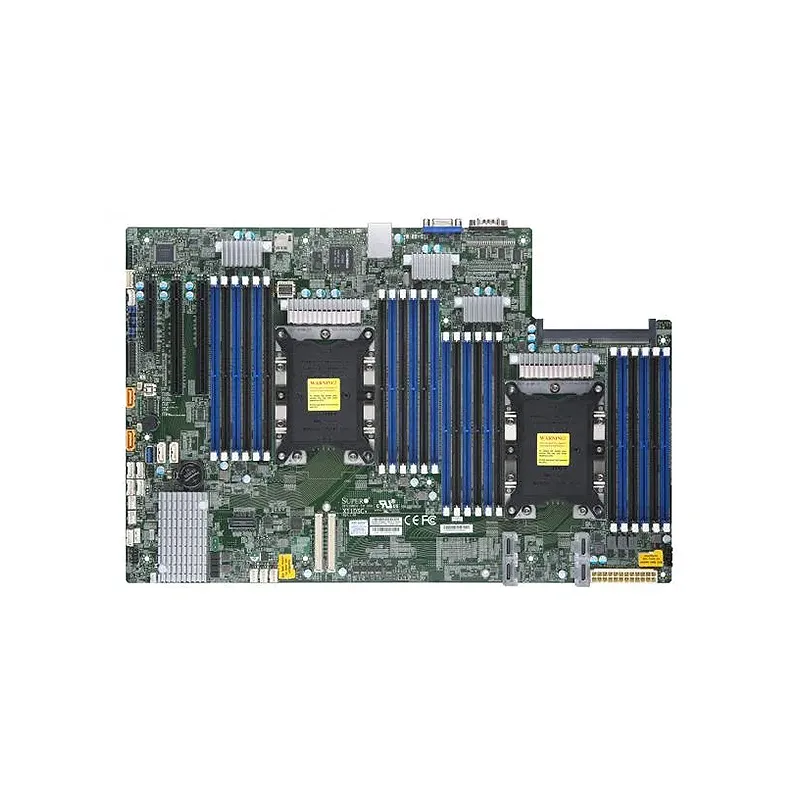

Supermicro MBD-X11DSC+

Quote1 Piece(MOQ)

BrandSupermicro
BIOS FeaturesACPI 6.0
Graphics1 ASPEED AST2500 BMC port(s)
TPM1 TPM Header
ChipsetIntel C621

Product SKUs

  • MBD-X11DSC+

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    16.9″ x 11″ (42.93cm x 27.94cm)

Processor

  • CPU
    2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
    Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
  • Core
    Up to 28 cores

System Memory

  • Memory Capacity
    24 DIMM slots
    Up to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
    Up to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s
    Up to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only).
  • Memory Type
    2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes
    LRDIMM: 128GB
    RDIMM: 64GB
  • Memory Voltage
    1.2V
  • Error Detection
    Corrects single-bit errors

On-Board Devices

  • Chipset
    Intel C621
  • SATA
    Intel C621 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    ASPEED AST2500
  • Graphics
    1 ASPEED AST2500 BMC port(s)
  • Network Controllers

Input / Output

  • LAN
    2 Flexible LAN expansion via SIOM module
  • USB
    1 USB 3.2 Gen1 port(s) (1 type A)
    2 USB 3.0 port(s) (2 rear)
  • Video Output
    1 VGA D-Sub Connector port(s)
  • Serial Port
    1 COM Port(s) (1 rear)
  • DOM
    2 Super DOM (Disk on Module) port with build power
  • TPM
    1 TPM Header

Expansion Slots

  • PCIe
    2 PCIe 3.0 x16,
    1 PCIe 3.0 x8,
    1 PCIe 3.0 x16 for Add-On-Module (AOM)

System BIOS

  • BIOS Type
    32MB AMI SPI Flash ROM
  • BIOS Features
    ACPI 6.0

Management

  • Power Configurations
    Power-on mode for AC power recovery, ACPI / ACPM Power Management
Brand

Supermicro

BIOS Features

ACPI 6.0

Graphics

1 ASPEED AST2500 BMC port(s)

TPM

1 TPM Header

Chipset

Intel C621

DIMM Sizes

LRDIMM: 128GBRDIMM: 64GB

BIOS Type

32MB AMI SPI Flash ROM

LAN

2 Flexible LAN expansion via SIOM module

Video Output

1 VGA D-Sub Connector port(s)

DOM

DOM

Dimension

16.9" x 11" (42.93cm x 27.94cm)

PCIe

1 PCIe 3.0 x16 for Add-On-Module (AOM), 1 PCIe 3.0 x8, 2 PCIe 3.0 x16

USB

1 USB 3.2 Gen1 port(s) (1 type A)2 USB 3.0 port(s) (2 rear)

Form Factor

Proprietary

Memory Type

2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)

Application

Server

IPMI

ASPEED AST2500

Memory Voltage

1.2V

CPU

2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP

Serial Port

1 COM Port(s) (1 rear)

SATA

1, 10, 5, Intel C621 controller for 4 SATA3 (6 Gbps) ports; RAID 0

Memory Capacity

24 DIMM slotsUp to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/sUp to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only).

Error Detection

Corrects single-bit errors

Core

Up to 28 cores
