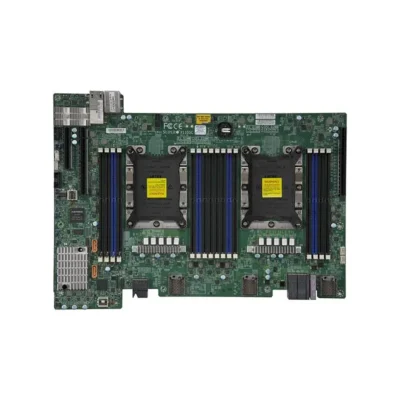

Supermicro MBD-X11DSC - HYPERTEK SYSTEMS B.V

Brand

Supermicro

TPM

1 TPM Header

Network Controllers

Dual LAN with Intel X550 10GBase-T Ethernet ControllerNetworking options provided via Ultra Riser

M.2

M.2 Interface: 2 PCIe 3.0 x2Form Factor: 22110

Chipset

Intel C621

Product SKUs

Physical Stats

Processor

CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
Core
Up to 28 cores

System Memory

Memory Capacity
16 DIMM slots
Up to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
Memory Type
ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
LRDIMM: 128GB
RDIMM: 64GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
Intel C621
IPMI
ASPEED AST2500 BMC
Network Controllers
Dual LAN with Intel X550 10GBase-T Ethernet Controller
Networking options provided via Ultra Riser

Input / Output

Expansion Slots

System BIOS

Management

System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
ACPI / ACPM Power Management

Brand	Supermicro
TPM	1 TPM Header
Network Controllers	Dual LAN with Intel X550 10GBase-T Ethernet ControllerNetworking options provided via Ultra Riser
M.2	M.2 Interface: 2 PCIe 3.0 x2Form Factor: 22110
Chipset	Intel C621
DIMM Sizes	LRDIMM: 128GBRDIMM: 64GB
BIOS Type	AMI UEFI
LAN	2 RJ45 10 Gigabit Ethernet LAN ports
DOM	DOM
Dimension	14.8" x 10.9" (37.59cm x 27.69cm)
PCIe	2 PCIe 3.0 x16 Or 1 PCIe 3.0 x8
USB	3 USB 3.1 Gen1 port(s) (2 rear; 1 via header)
Form Factor	Proprietary
Memory Type	ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2500 BMC
Memory Voltage	1.2V
CPU	2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP
Serial Port	1 COM Port(s) (1 header)
SATA	2 SATA3 (6Gbps) port(s)
Memory Capacity	16 DIMM slotsUp to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/sUp to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 28 cores
