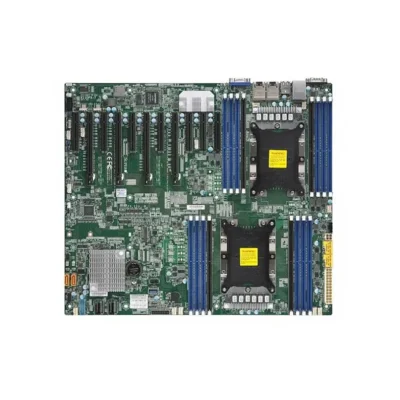

Supermicro MBD-X11DPX-T - HYPERTEK SYSTEMS B.V

Brand

Supermicro

BIOS Features

Plug and Play (PnP)ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportSMBIOS 2.7.1UEFI 2.3.1

Graphics

1 ASPEED AST2500 BMC port(s)

TPM

1 TPM Header

Network Controllers

Dual LAN with Intel X550 10GBase-T Ethernet Controller

Product SKUs

MBD-X11DPX-T

Physical Stats

Form Factor
Proprietary
Dimension
15.12″ x 13.2″ (38.4cm x 33.53cm)

Processor

CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
Core
Up to 28 cores

System Memory

Memory Capacity
16 DIMM slots
Up to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
Up to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only).
Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
64GB
LRDIMM: 64GB, 128GB
RDIMM: 64GB, 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
Intel C621
SATA
Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2500
Graphics
1 ASPEED AST2500 BMC port(s)
Network Controllers
Dual LAN with Intel X550 10GBase-T Ethernet Controller

Input / Output

SATA
10 SATA3 (6Gbps) port(s)
LAN
2 RJ45 10GBase-T ports
USB
4 USB 2.0 port(s) (2 via header; 2 rear)
3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
2 USB 3.0 port(s) (2 rear)
Video Output
1 VGA D-Sub Connector port(s)
Serial Port
2 COM Port(s) (1 header; 1 rear)
DOM
2 Super DOM (Disk on Module) port with build power
TPM
1 TPM Header

Expansion Slots

PCIe
2 PCIe 3.0 x16,
8 PCIe 3.0 x8,
1 PCIe 3.0 x4 (in x8 slot) Or 4 PCIe 3.0 x16 and 4 PCIe 3.0 x8 and 1 PCIe 3.0 x4 (in x8 slot)
M.2
M.2 Interface: 1 PCIe 3.0 x4
Form Factor: 2280, 22110
Key: M-Key

System BIOS

BIOS Type
32MB AMI SPI Flash ROM
BIOS Features
Plug and Play (PnP)
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1

Management

Power Configurations
ACPI Power Management

Brand	Supermicro
BIOS Features	Plug and Play (PnP)ACPI 1.0 / 2.0 / 3.0 / 4.0USB Keyboard supportSMBIOS 2.7.1UEFI 2.3.1
Graphics	1 ASPEED AST2500 BMC port(s)
TPM	1 TPM Header
Network Controllers	Dual LAN with Intel X550 10GBase-T Ethernet Controller
M.2	22110Key: M-Key, M.2 Interface: 1 PCIe 3.0 x4Form Factor: 2280
Chipset	Intel C621
DIMM Sizes	128GB, 128GBRDIMM: 64GB, 64GBLRDIMM: 64GB
BIOS Type	32MB AMI SPI Flash ROM
LAN	2 RJ45 10GBase-T ports
Video Output	1 VGA D-Sub Connector port(s)
DOM	DOM
Dimension	15.12" x 13.2" (38.4cm x 33.53cm)
PCIe	1 PCIe 3.0 x4 (in x8 slot) Or 4 PCIe 3.0 x16 and 4 PCIe 3.0 x8 and 1 PCIe 3.0 x4 (in x8 slot), 2 PCIe 3.0 x16, 8 PCIe 3.0 x8
USB	4 USB 2.0 port(s) (2 via header; 2 rear)3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)2 USB 3.0 port(s) (2 rear)
Form Factor	Proprietary
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2500
Memory Voltage	1.2V
CPU	2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP
Serial Port	2 COM Port(s) (1 header; 1 rear)
SATA	10 SATA3 (6Gbps) port(s)
Memory Capacity	16 DIMM slotsUp to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/sUp to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 2TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only).
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 28 cores
