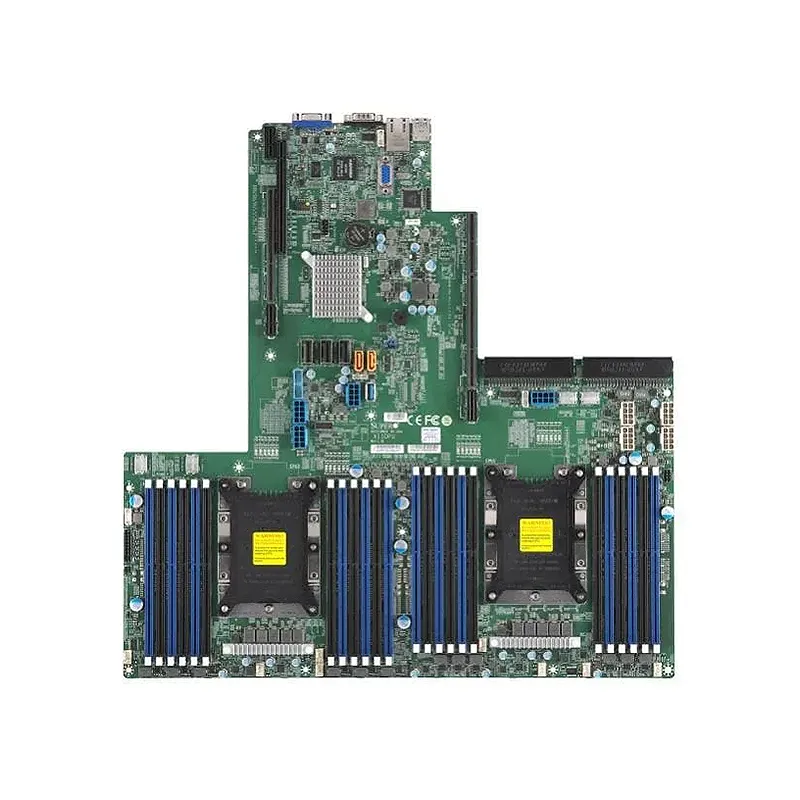

Supermicro MBD-X11DPU-V - HYPERTEK SYSTEMS B.V

Brand

Supermicro

Graphics

1 ASPEED AST2500 BMC port(s)

TPM

1 TPM Header & Chip both

Network Controllers

Networking options provided via Ultra Riser

Chipset

Intel C621

Product SKUs

Physical Stats

Processor

CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
Core
Up to 28 cores

System Memory

Memory Capacity
24 DIMM slots
Up to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s
Up to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only).
Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
LRDIMM: 128GB
RDIMM: 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors

On-Board Devices

Chipset
Intel C621
SATA
Intel C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2500
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Support for Intelligent Platform Management Interface v.2.0
Graphics
1 ASPEED AST2500 BMC port(s)
Network Controllers
Networking options provided via Ultra Riser

Input / Output

SATA
14 SATA3 (6Gbps) port(s)
USB
3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
2 USB 3.0 port(s) (2 rear)
Video Output
2 VGA D-Sub Connector port(s)
Serial Port
1 COM Port(s) (1 rear)
DOM
2 Super DOM (Disk on Module) port with build power
TPM
1 TPM Header & Chip both

Expansion Slots

PCIe
1 PCIe 3.0 x32 Right Riser Slot,
1 PCIe 3.0 x8 Right Riser Slot,
1 PCIe 3.0 x40 Ultra Riser Slot

System BIOS

Management

System Management Software
SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, SSM, SUM, SPM
Power Configurations
ACPI Power Management

Brand	Supermicro
Graphics	1 ASPEED AST2500 BMC port(s)
TPM	1 TPM Header & Chip both
Network Controllers	Networking options provided via Ultra Riser
Chipset	Intel C621
DIMM Sizes	LRDIMM: 128GBRDIMM: 128GB
BIOS Type	32MB AMI SPI Flash ROM
Video Output	2 VGA D-Sub Connector port(s)
DOM	DOM
Dimension	17" x 16.8" (43.18cm x 42.67cm)
PCIe	1 PCIe 3.0 x32 Right Riser Slot, 1 PCIe 3.0 x40 Ultra Riser Slot, 1 PCIe 3.0 x8 Right Riser Slot
USB	3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)2 USB 3.0 port(s) (2 rear)
Form Factor	Proprietary Ultra
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2500IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportSupport for Intelligent Platform Management Interface v.2.0
Memory Voltage	1.2V
CPU	2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
Serial Port	1 COM Port(s) (1 rear)
SATA	14 SATA3 (6Gbps) port(s)
Memory Capacity	24 DIMM slotsUp to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only).
Error Detection	Corrects single-bit errors
Core	Up to 28 cores
