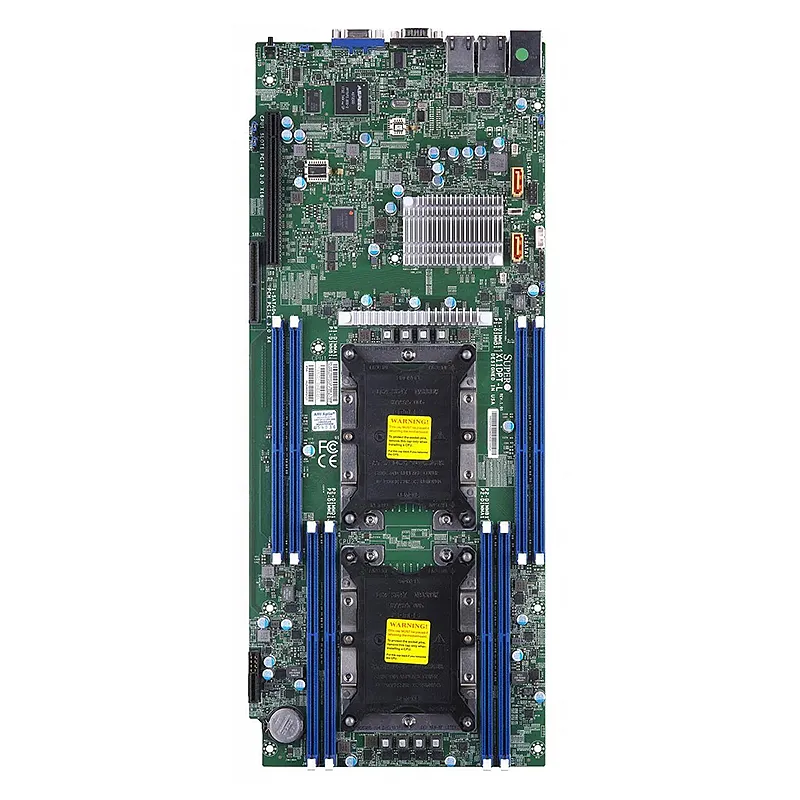

Supermicro MBD-X11DPT-L - HYPERTEK SYSTEMS B.V

Brand

Supermicro

Graphics

1 ASPEED AST2500 BMC port(s)

TPM

1 TPM Header

Network Controllers

Dual LAN with 1GbE with Marvell 88E1512

Chipset

Intel C621

Product SKUs

Physical Stats

Processor

CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 140W TDP, Dual UPI up to 10.4 GT/s
Core
Up to 28 cores

System Memory

Memory Capacity
8 DIMM slots
Up to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-2933MT/s
Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
LRDIMM: 128GB
RDIMM: 64GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

System BIOS

Management

System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support

Brand	Supermicro
Graphics	1 ASPEED AST2500 BMC port(s)
TPM	1 TPM Header
Network Controllers	Dual LAN with 1GbE with Marvell 88E1512
Chipset	Intel C621
DIMM Sizes	LRDIMM: 128GBRDIMM: 64GB
BIOS Type	32MB AMI SPI Flash ROM with UEFI
LAN	2 RJ45 Gigabit Ethernet LAN ports
Video Output	1 VGA D-Sub Connector port(s)
DOM	DOM
Dimension	6.8" x 16.64" (17.27cm x 42.27cm)
PCIe	1 PCIe 3.0 x16
USB	2 USB 3.0 port(s) (2 rear)
Form Factor	Proprietary Twin
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2500
Memory Voltage	1.2V
CPU	2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 140W TDP, Dual UPI up to 10.4 GT/s
Serial Port	1 COM Port(s) (1 rear)
SATA	1, 10, 5, Intel C621 controller for 2 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity	8 DIMM slotsUp to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 28 cores
