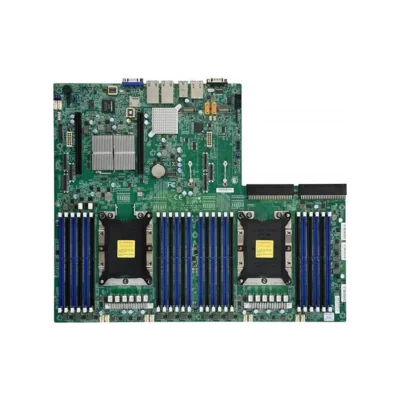

Supermicro MBD-X11DPS-RE - HYPERTEK SYSTEMS B.V

Brand

Supermicro

Graphics

0 ASPEED AST2500 BMC port(s)

TPM

1 TPM Header

Network Controllers

Dual LAN with 10GBase-T with Intel X550

M.2

M.2 Interface: 2 PCIe 3.0 x2Form Factor: 2260/2280/22110Key: M-Key

Product SKUs

Physical Stats

Processor

CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s

System Memory

Memory Capacity
24 DIMM slots
Up to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s
Up to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Memory Type
2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
LRDIMM: 64GB, 128GB
RDIMM: 32GB, 64GB, 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

PCIe
2 PCIe 3.0 x16 (Low Profile),
4 PCIe 3.0 x16
M.2
M.2 Interface: 2 PCIe 3.0 x2
Form Factor: 2260/2280/22110
Key: M-Key
*2 SATA Hybrid ports, RAID 0 & 1

System BIOS

Management

System Management Software
IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
ACPI Power Management

Brand	Supermicro
Graphics	0 ASPEED AST2500 BMC port(s)
TPM	1 TPM Header
Network Controllers	Dual LAN with 10GBase-T with Intel X550
M.2	M.2 Interface: 2 PCIe 3.0 x2Form Factor: 2260/2280/22110Key: M-Key
Chipset	Intel C627
DIMM Sizes	128GB, 128GBRDIMM: 32GB, 64GB, LRDIMM: 64GB
BIOS Type	AMI UEFI
LAN	2 RJ45 10GBase-T ports
Video Output	1 VGA D-Sub Connector port(s)
DOM	DOM
Dimension	13.5" x 16.73" (34.29cm x 42.49cm)
PCIe	2 PCIe 3.0 x16 (Low Profile), 4 PCIe 3.0 x16
USB	2 USB 3.0 port(s) (2 rear)
Form Factor	Proprietary
Memory Type	2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2500
Memory Voltage	1.2V
CPU	2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP
Serial Port	2 COM Port(s) (1 header; 1 rear)
Memory Capacity	24 DIMM slotsUp to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
