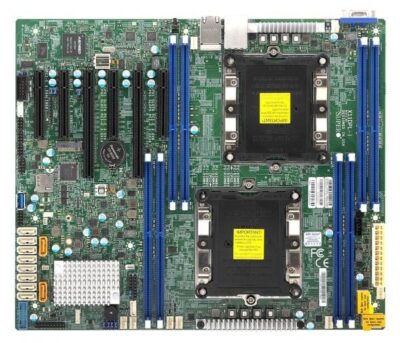

Supermicro MBD-X11DPL-I - HYPERTEK SYSTEMS B.V

Warranty

1 Year

Products Status

New

Form Factor

ATX

Brand

Supermicro

USB Ports

4 USB 2.0 port(s) (2 rear; 2 via header) 3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)

Product SKUs

Physical Stats

Processor

CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 140W TDP, Dual UPI up to 10.4 GT/s

System Memory

Memory Capacity
8 DIMM slots
Up to 2TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-2933MT/s
Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
LRDIMM: 128GB
RDIMM: 64GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors

On-Board Devices

Input / Output

SATA
10 SATA3 (6Gbps) port(s)
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
4 USB 2.0 port(s) (2 via header; 2 rear)
3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
Video Output
1 VGA port(s)
Serial Port
1 COM Port(s) (1 header)
DOM
2 Super DOM (Disk on Module) ports
TPM
1 TPM Header

Expansion Slots

System BIOS

Management

Warranty	1 Year
Products Status	New
Form Factor	ATX
Brand	Supermicro
USB Ports	4 USB 2.0 port(s) (2 rear; 2 via header) 3 USB 3.2 Gen1 port(s) (2 via header; 1 type A)
CPU Socket Type	Intel LGA3647
Chipset	Intel C621 Series
Internal I/O Connectors	2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot) M.2 Interface: 1 SATA/PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280 M.2 Key: M-Key
Back I/O Ports	1 VGA port
Product Name	Suermicro MBD-X11DPL-I
Packaging Details	Bulk
Size	30.67cmx25.78cm
Memory	Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots
CPU Brand	Intel
Application	Server
