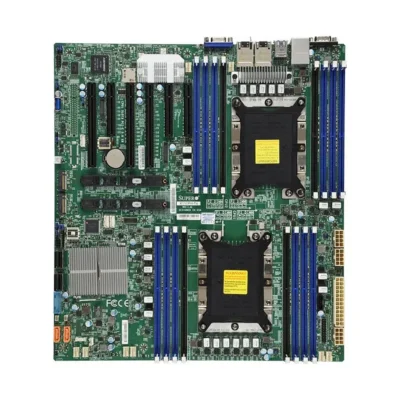

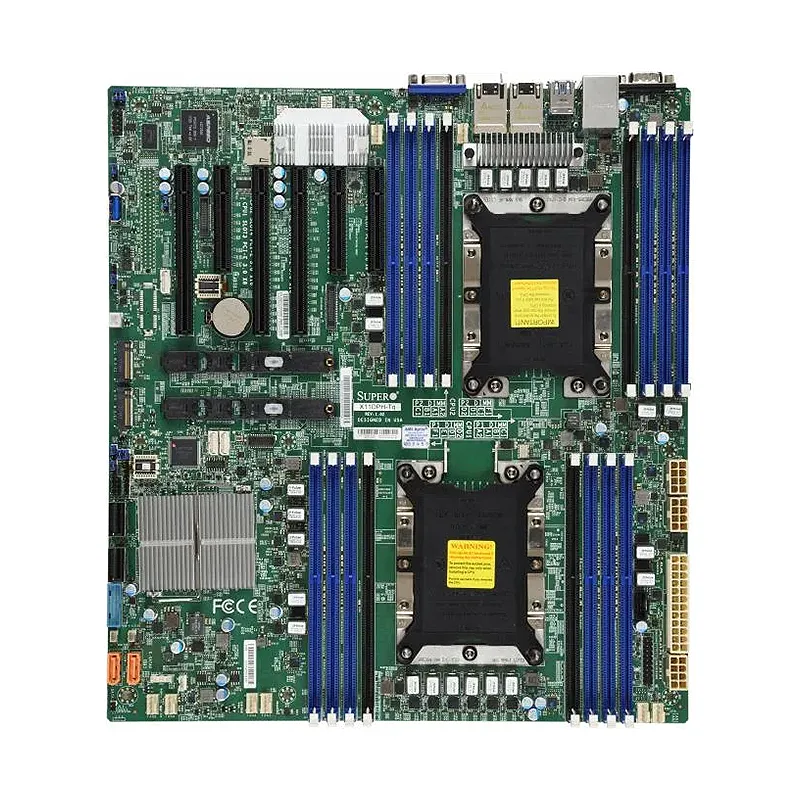

Supermicro MBD-X11DPH-Tq - HYPERTEK SYSTEMS B.V

Brand

Supermicro

TPM

1 TPM Header

Network Controllers

Dual LAN with 10GBase-T with Intel X722 + X557

M.2

1Form Factor: 2242/2260/2280/22110Key: M-Key, M.2 Interface: 2 PCIe 3.0 x4, RAID 0

Chipset

Intel C627

Product SKUs

Physical Stats

Processor

CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
Core
Up to 28 cores

System Memory

Memory Capacity
16 DIMM slots
Up to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/s
Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
LRDIMM: 64GB
RDIMM: 64GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

PCIe
3 PCIe 3.0 x16,
3 PCIe 3.0 x8
M.2
M.2 Interface: 2 PCIe 3.0 x4, RAID 0,1
Form Factor: 2242/2260/2280/22110
Key: M-Key

System BIOS

Brand	Supermicro
TPM	1 TPM Header
Network Controllers	Dual LAN with 10GBase-T with Intel X722 + X557
M.2	1Form Factor: 2242/2260/2280/22110Key: M-Key, M.2 Interface: 2 PCIe 3.0 x4, RAID 0
Chipset	Intel C627
DIMM Sizes	LRDIMM: 64GBRDIMM: 64GB
BIOS Type	AMI UEFI
LAN	2 RJ45 10GBase-T ports
Video Output	1 VGA port(s)
DOM	DOM
Dimension	12" x 13" (30.48cm x 33.02cm)
PCIe	3 PCIe 3.0 x16, 3 PCIe 3.0 x8
USB	7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
Form Factor	E-ATX
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2500
Memory Voltage	1.2V
CPU	2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP
Serial Port	1 COM Port(s) (1 rear)
SATA	10 SATA3 (6Gbps) port(s)
Memory Capacity	16 DIMM slotsUp to 2TB Intel Optane Persistent Memory 100 Series, DDR4-2666MT/sUp to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 28 cores
