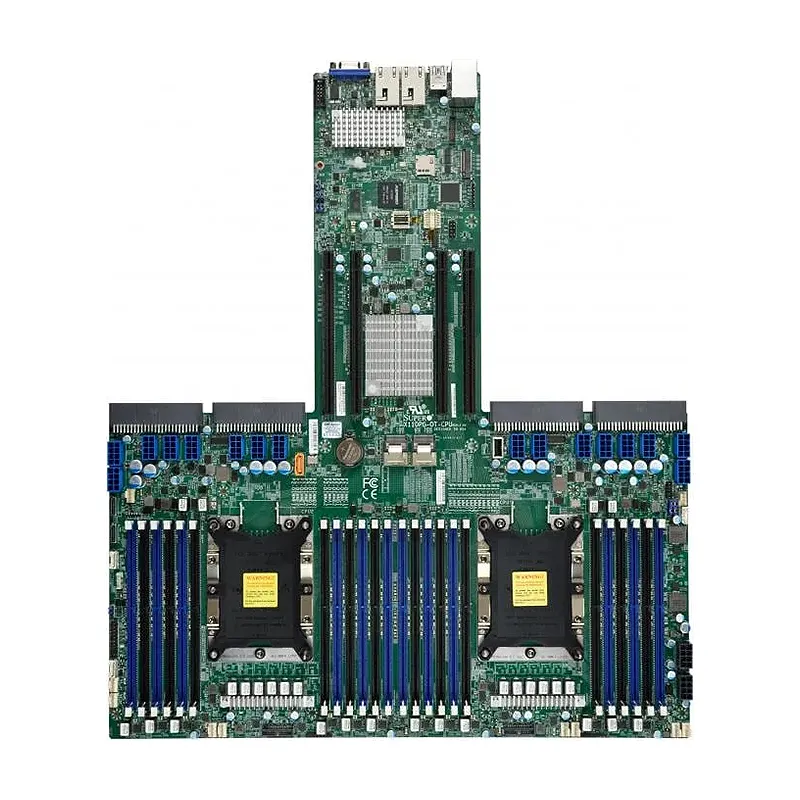

Supermicro MBD-X11DPG-OT-CPU - HYPERTEK SYSTEMS B.V

Brand

Supermicro

Graphics

1 ASPEED AST2500 BMC port(s)

TPM

1 TPM Header

Network Controllers

Dual LAN with 10Gbase-T, from C622

M.2

22110Key: M-Key, M.2 Interface: 1 PCIe 3.0 x4Form Factor: 2280

Product SKUs

Physical Stats

Processor

CPU
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s

System Memory

Memory Capacity
24 DIMM slots
Up to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s
Up to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Memory Type
2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
LRDIMM: 128GB
RDIMM: 64GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

Input / Output

Expansion Slots

System BIOS

Brand	Supermicro
Graphics	1 ASPEED AST2500 BMC port(s)
TPM	1 TPM Header
Network Controllers	Dual LAN with 10Gbase-T, from C622
M.2	22110Key: M-Key, M.2 Interface: 1 PCIe 3.0 x4Form Factor: 2280
Chipset	Intel C622
DIMM Sizes	LRDIMM: 128GBRDIMM: 64GB
BIOS Type	AMI UEFI
Video Output	1 VGA port(s)
DOM	DOM
Dimension	17" x 19.5" (43.18cm x 49.53cm)
PCIe	4 PCIe 3.0 x24 slots to PCIe board
USB	4 USB 3.2 Gen1 port(s) (4 rear)1 USB 2.0 port(s) (1 Type A)
Form Factor	Proprietary
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2500
Memory Voltage	1.2V
CPU	2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable ProcessorsDual Socket Socket P (LGA-3647) supported, 3 UPI up to 10.4 GT/s, CPU TDP supports Up to 205W TDP
Serial Port	1 COM Port(s) (1 rear)
SATA	1, 10, 5, Intel C622 controller for 8 SATA3 (6 Gbps) ports; RAID 0
Memory Capacity	24 DIMM slotsUp to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/sUp to 6TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
